To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XZVG81FS |
| Description | Surface Mount LED; Green; 2.8x0.8mm; 574 nm; 69 mcd; 110°; Water Clear |
| Datasheet | Download Datasheet |

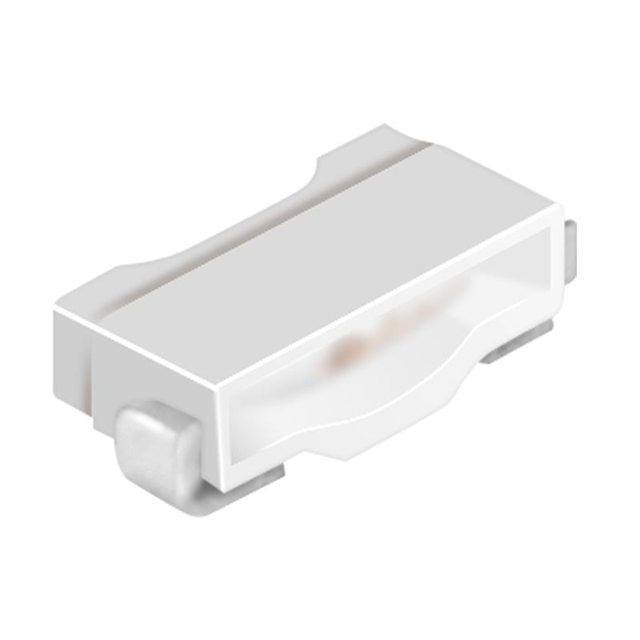

The SunLED XZVG81FS is a green right-angle surface mount LED in a 2.8x0.8mm package, with a peak wavelength of 574 nm.
It is rated 69 mcd typical (40 mcd minimum) at 20 mA, with a forward voltage of 2.1 V (2.5 V maximum).
Its water clear lens gives a 110° viewing angle.
It is halogen free, and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Color | Green |
| Configuration | Single Color |
| Peak Wavelength (nm) | 574 |
| Dominant Wavelength (nm) | 570 |
| Luminous Intensity (mcd) | 69 |
| Luminous Intensity (Min) (mcd) | 40 |
| Test Current (mA) | 20 |
| Forward Voltage (V) | 2.1 |
| Forward Voltage (Max) (V) | 2.5 |
| Viewing Angle (°) | 110 |
| Lens | Water Clear |
| Package Size | 2.8x0.8mm (Right Angle LED) |
| Mounting Type | Surface Mount, Right Angle |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.30mm x 0.57mm |
| Height (Max) (mm) | 0.8 |
| Emitting Material | AlGaInP |
| Forward Current (Max) (mA) | 30 |
| Power Dissipation (mW) | 75 |
| Operating Temperature (°C) | -40°C ~ +85°C |
| Features | Halogen Free |
| Moisture Sensitivity Level | 3 |
