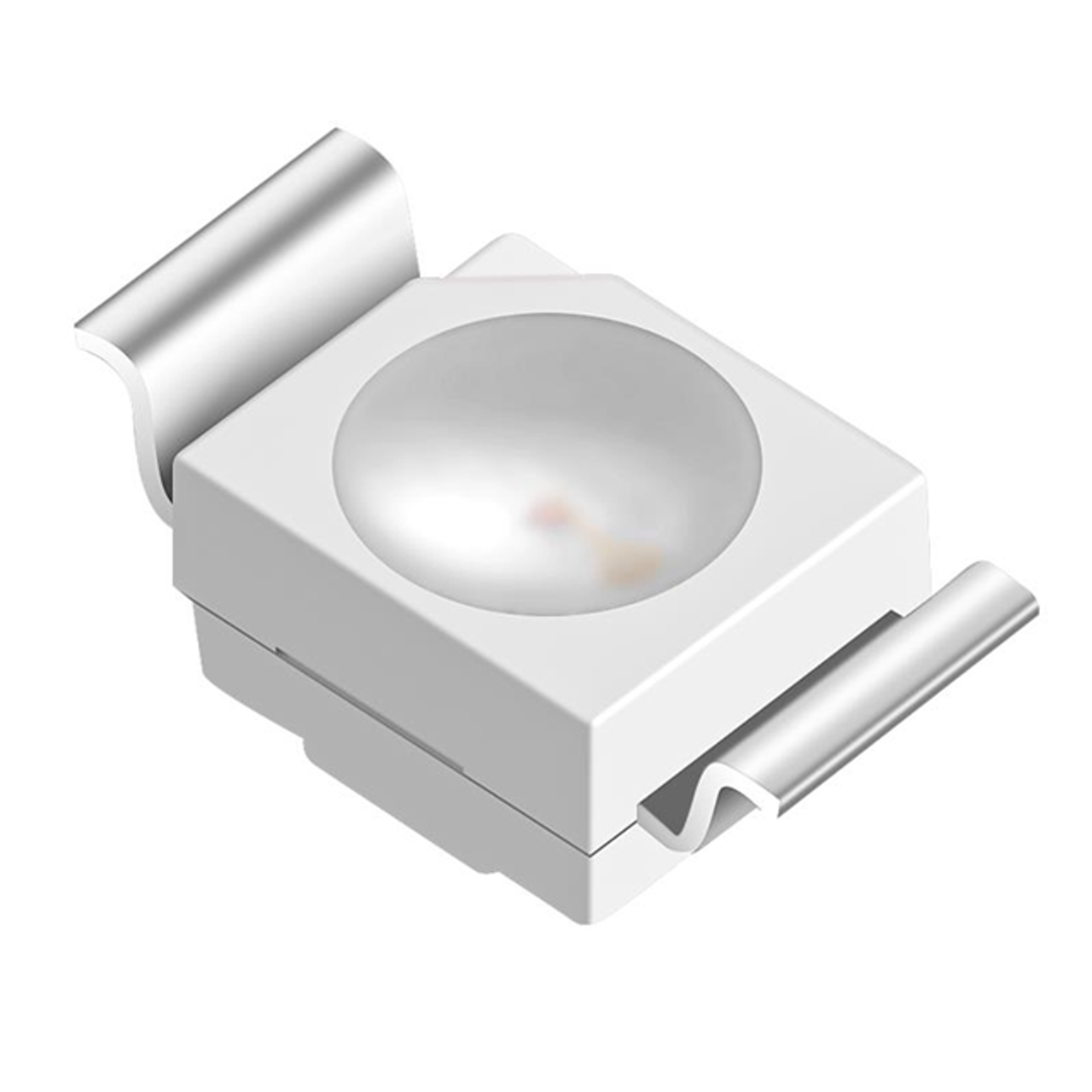

SunLED XZMDK45WT-9
| Manufacturer |
SunLED |
| Manufacturer Product Number |
XZMDK45WT-9 |
Product Description
SunLED XZxx45x-9 Series Surface Mount LED; 2-PLCC; 630nm; ; Clear; Colorless; Round with Flat Top; 1.95V
Surface Mount LED • Color: Red • Lens Color: Colorless • Lens Transparency: Clear • Lens Style: Round with Flat Top • Lens Size: 2.40mm Dia • Voltage - Forward (Vf) (Typ): 1.95V • Wavelength - Dominant: 630nm • Package / Case: 2-SMD, Z-Bend, Bottom Entry • Size / Dimension: 3.20mm L x 2.80mm W
Specifications
| Product Attribute |
Attribute Value |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 98mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 630nm |
| Wavelength - Peak | 645nm |
| Features | - |
| Package / Case | 2-SMD, Z-Bend, Bottom Entry |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.15mm |
