Product Description

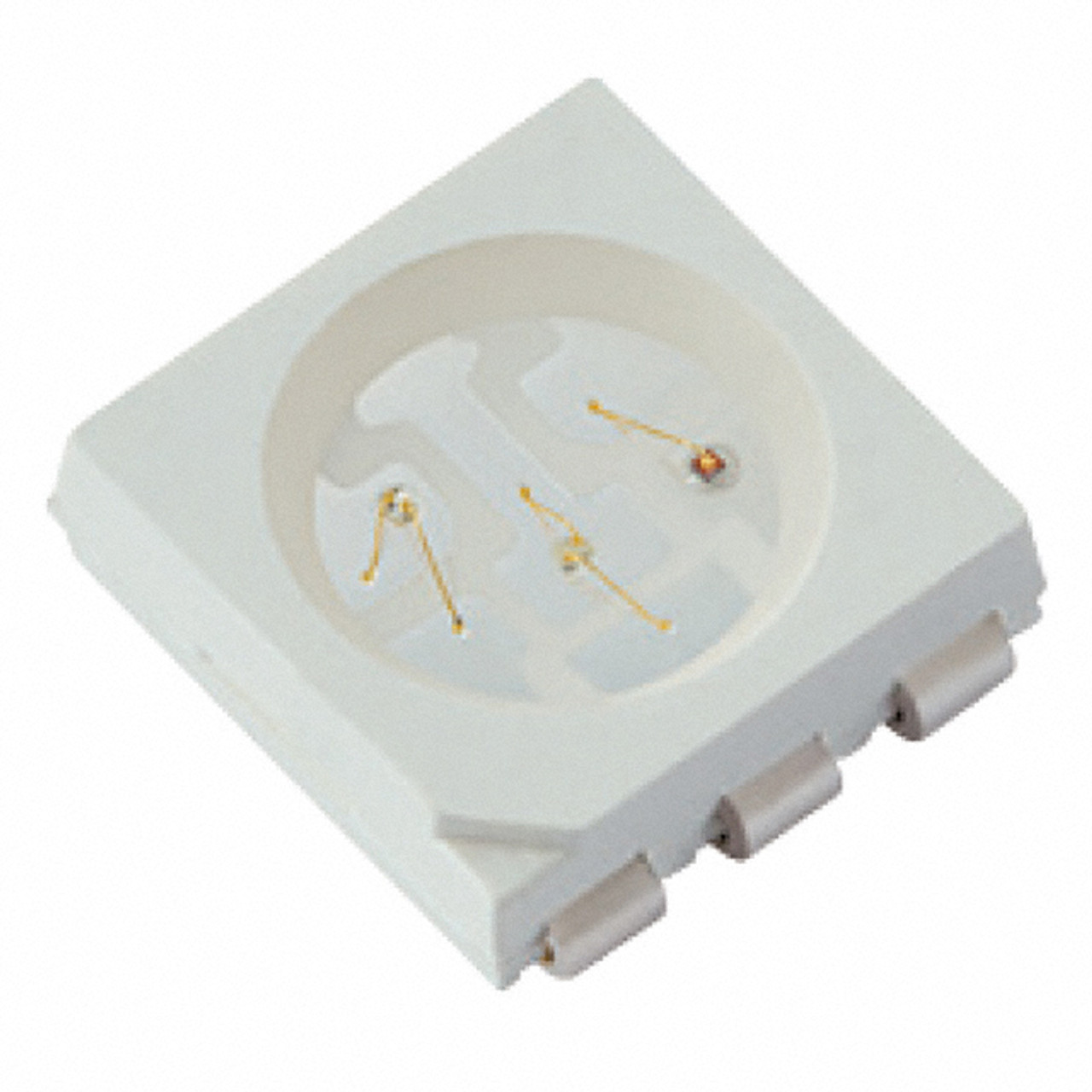

SunLED XZxxxxxx107SC2 Series Surface Mount LED; 6-SMD; 624nm Red, 525nm Green, 465nm Blue; ; Clear; Colorless; Round with Flat Top; 2.05V Red, 3.5V Green, 3.5V Blue
Surface Mount LED • Color: Red, Green, Blue (RGB) • Lens Color: Colorless • Lens Transparency: Clear • Lens Style: Round with Flat Top • Lens Size: 4.00mm Dia • Voltage - Forward (Vf) (Typ): 2.05V Red, 3.5V Green, 3.5V Blue • Wavelength - Dominant: 624nm Red, 525nm Green, 465nm Blue • Package / Case: 2020 (5050 Metric) • Size / Dimension: 5.00mm L x 5.00mm W
Product Information
| Manufacturer | SunLED |
| Product Category | LED |
| Product Sub Category | Surface Mount LED |
| Series | XZxxxxxx107SC2 Series |
| Catalog Part Number | XZCBDDGKME107SC2 |
| Status | Obsolete |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 317mcd Red, 695mcd Green, 198mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.5V Green, 3.5V Blue |
| Current - Test | 30mA Red, 30mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 632nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 2020 (5050 Metric) |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Height (Max) | 1.50mm |
