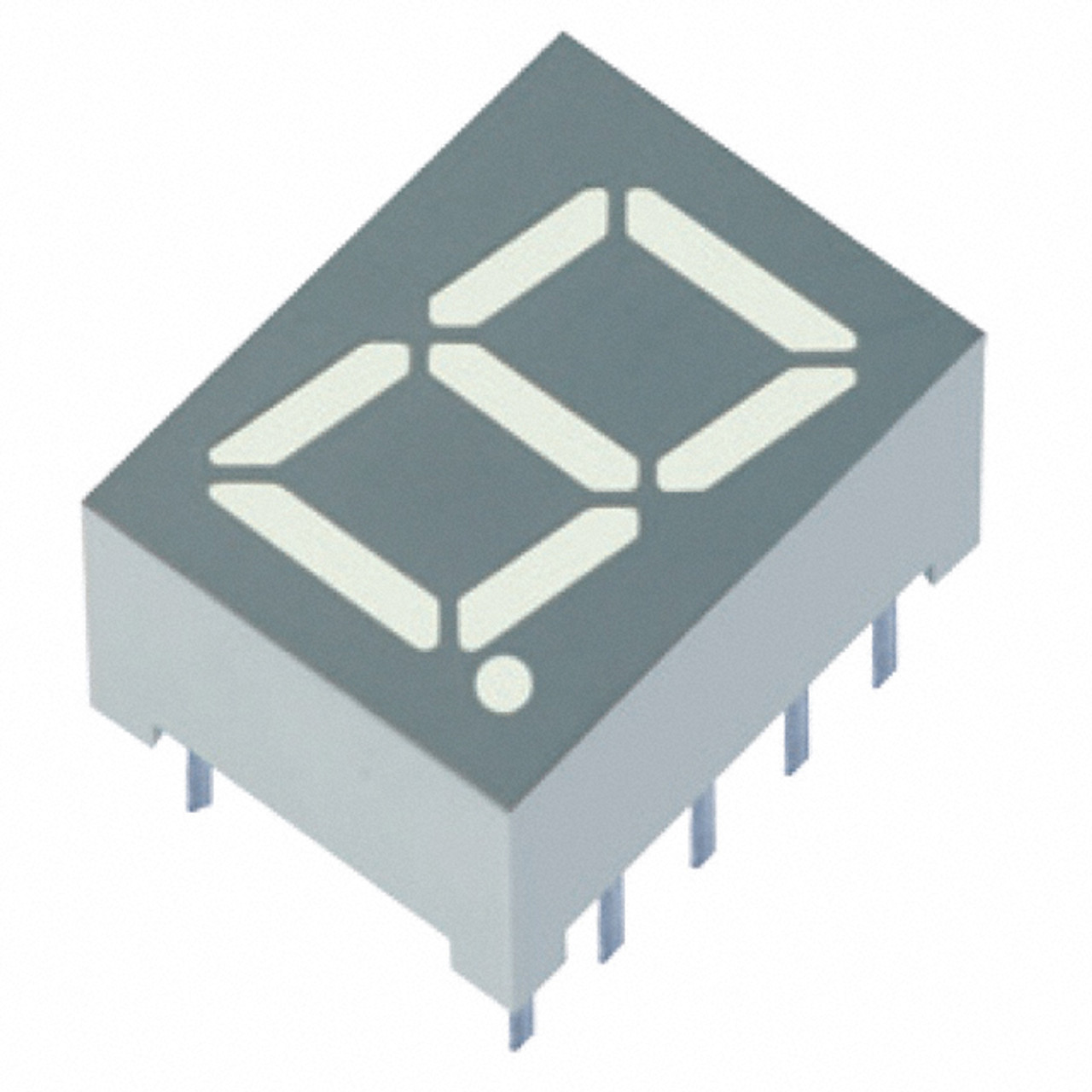

SunLED XDUY08A
| Manufacturer |
SunLED |
| Manufacturer Product Number |
XDUY08A |
Product Description
SunLED XDxx08x Series Numeric Display; 1 Digit; 7-Segment; Yellow; 0.39" (10.00mm); 1.95V; 10-DIP (0.300", 7.62mm)
Numeric Display • Number of Characters: 1 • Size / Dimension: 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) • Digit/Alpha Size: 0.39" (10.00mm) • Display Type: 7-Segment • Color: Yellow • Voltage - Forward (Vf) (Typ): 1.95V • Wavelength - Peak: 590nm • Package / Case: 10-DIP (0.300", 7.62mm)
Specifications
| Product Attribute |
Attribute Value |
| Number of Characters | 1 |
| Size / Dimension | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) |
| Digit/Alpha Size | 0.39" (10.00mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Yellow |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 10mA |
| Millicandela Rating | 1mcd |
| Wavelength - Peak | 590nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 10-DIP (0.300", 7.62mm) |
