Product Description

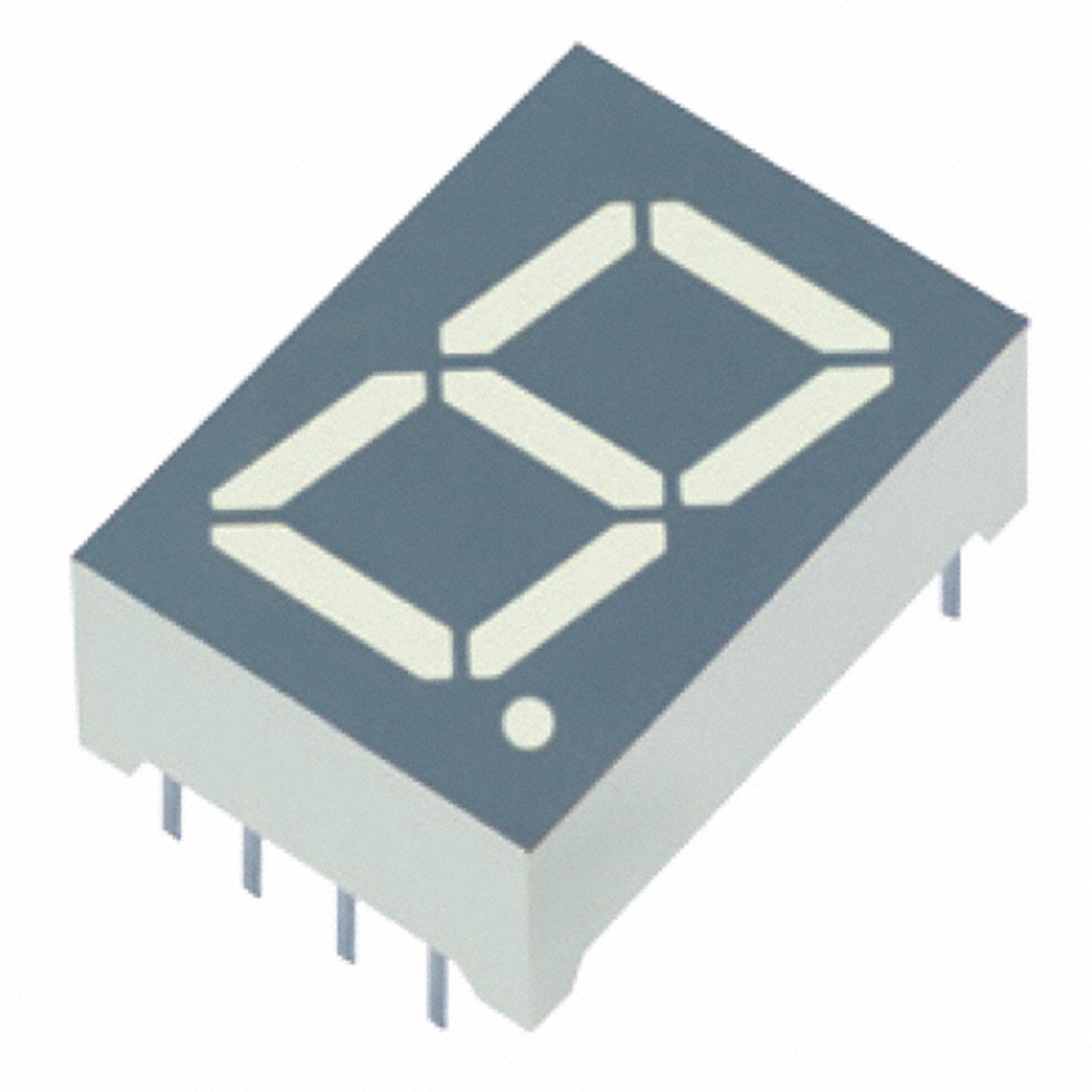

SunLED XDxx13x Series Numeric Display; 1 Digit; 7-Segment; Red; 0.52" (13.21mm); 1.8V; 10-DIP (0.600", 15.24mm)
Numeric Display • Number of Characters: 1 • Size / Dimension: 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) • Digit/Alpha Size: 0.52" (13.21mm) • Display Type: 7-Segment • Color: Red • Voltage - Forward (Vf) (Typ): 1.8V • Wavelength - Peak: 655nm • Package / Case: 10-DIP (0.600", 15.24mm)
Product Information
| Manufacturer | SunLED |
| Product Category | Display |
| Product Sub Category | Numeric Display |
| Series | XDxx13x Series |
| Catalog Part Number | XDMR13C |
| Status | Obsolete |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Number of Characters | 1 |
| Size / Dimension | 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) |
| Digit/Alpha Size | 0.52" (13.21mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 10mA |
| Millicandela Rating | 10mcd |
| Wavelength - Peak | 655nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 10-DIP (0.600", 15.24mm) |
| Series Features |
| XDxx13x Series |
