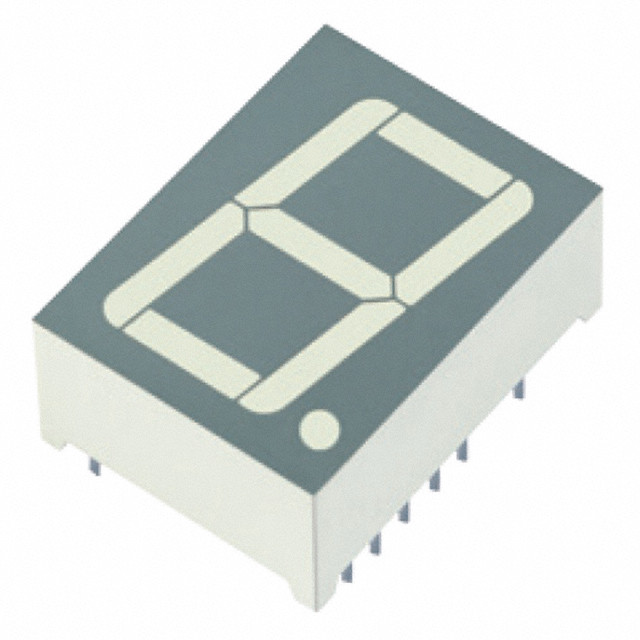

SunLED XDMDK20C-1
| Manufacturer |
SunLED |
| Manufacturer Product Number |
XDMDK20C-1 |
Product Description
SunLED XDxx20x Series Numeric Display; 1 Digit; 7-Segment; Red; 0.80" (20.32mm); 1.85V; 16-DIP (0.600", 15.24mm), 13 Leads
Numeric Display • Number of Characters: 1 • Size / Dimension: 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) • Digit/Alpha Size: 0.80" (20.32mm) • Display Type: 7-Segment • Color: Red • Voltage - Forward (Vf) (Typ): 1.85V • Wavelength - Peak: 645nm • Package / Case: 16-DIP (0.600", 15.24mm), 13 Leads
Specifications
| Product Attribute |
Attribute Value |
| Number of Characters | 1 |
| Size / Dimension | 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) |
| Digit/Alpha Size | 0.80" (20.32mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 10mA |
| Millicandela Rating | 19mcd |
| Wavelength - Peak | 645nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 16-DIP (0.600", 15.24mm), 13 Leads |
