To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | SunLED |
| Manufacturer Product Number | XAUG14A2 |
| Description | Alphanumeric Display; Green; 0.543" (13.8 mm); Common Anode; 565 nm; 2.59 mcd |
| Datasheet | Download Datasheet |

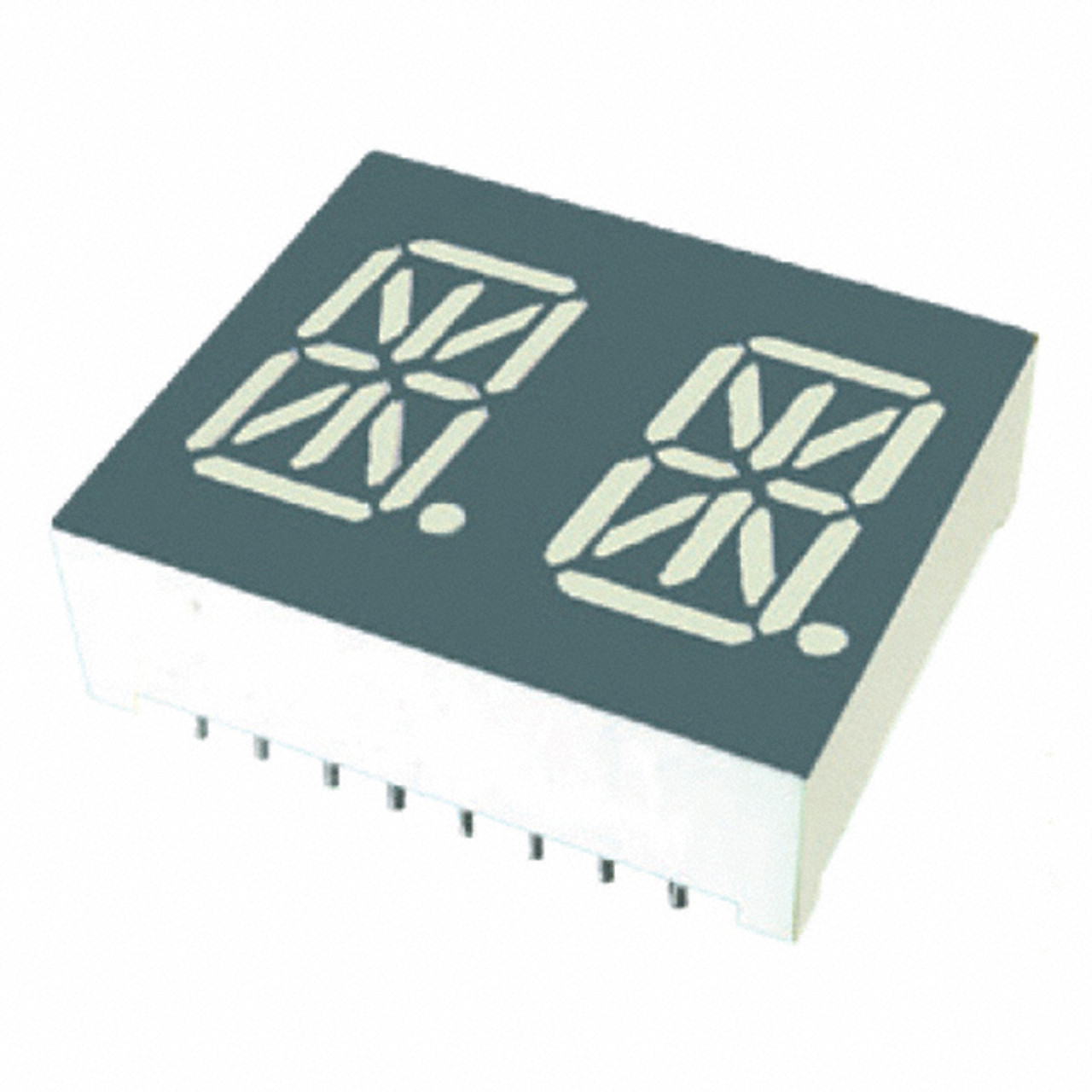

The SunLED XAUG14A2 is a green 0.543" dual-digit 14-segment alphanumeric display with common anode and right hand decimal point.
It has a peak wavelength of 565 nm, 2.59 mcd typical per segment (1.4 mcd minimum) at 10 mA and a forward voltage of 2 V.
As standard it has a gray face with white segments.
It is a through-hole part and operates from -40°C to +85°C.
| Category | |
| Manufacturer | SunLED |
| Display Type | 14-Segment Alphanumeric |
| Character Height | 0.543" (13.8 mm) |
| Number of Digits | 2 |
| Color | Green |
| Configuration | Single Color |
| Common Pin | Common Anode |
| Decimal Point | Right Hand |
| Face / Segment Color | Gray face with white segments |
| Peak Wavelength (nm) | 565 |
| Dominant Wavelength (nm) | 568 |
| Luminous Intensity (mcd) | 2.59 |
| Luminous Intensity (Min) (mcd) | 1.4 |
| Test Current (mA) | 10 |
| Forward Voltage (V) | 2 |
| Forward Voltage (Max) (V) | 2.5 |
| Mounting Type | Through Hole |
| Emitting Material | GaP |
| Forward Current (Max) (mA) | 25 |
| Power Dissipation (mW) | 62.5 |
| Operating Temperature (°C) | -40°C ~ +85°C |
