Product Description

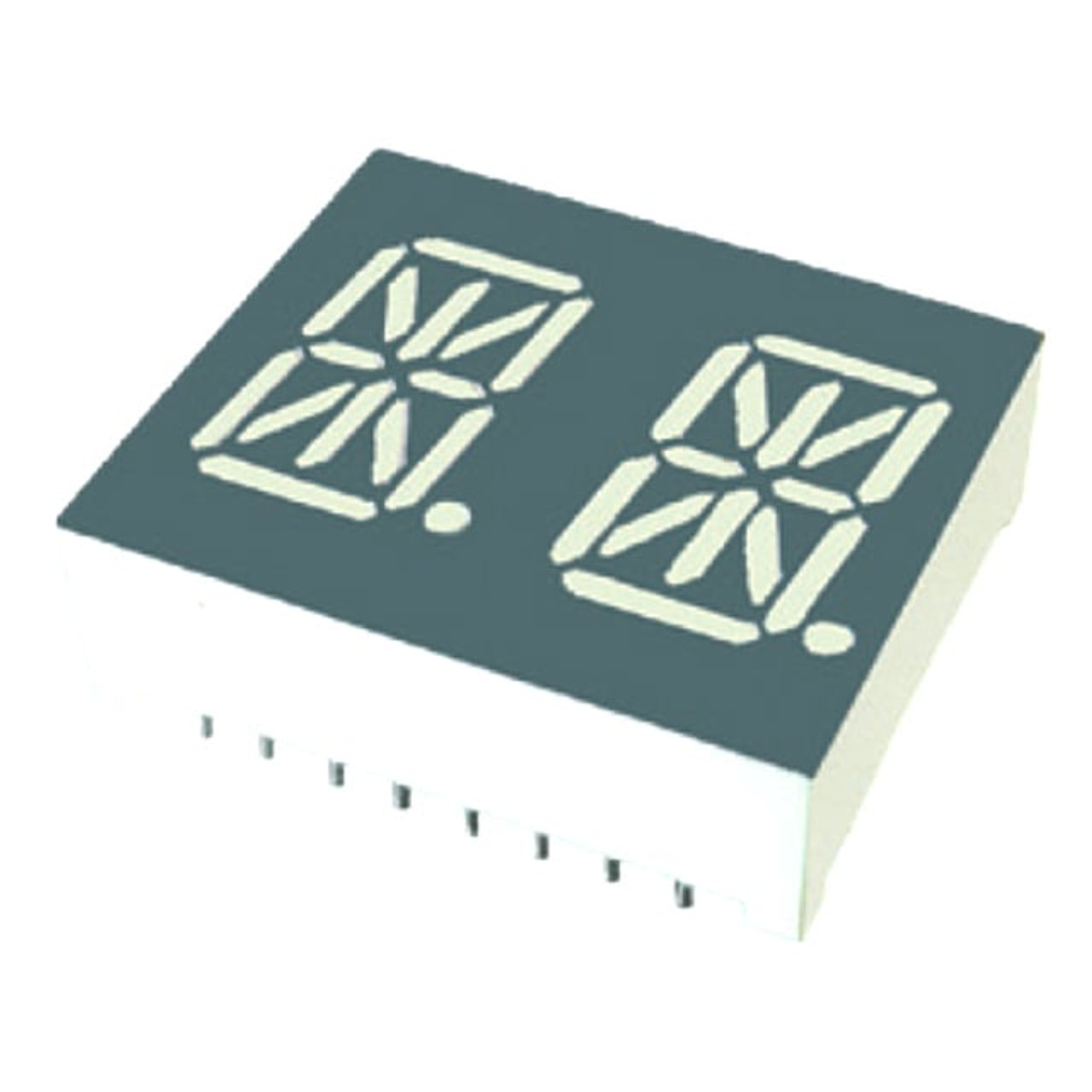

SunLED XAxx14x2 Series Alphanumeric Display; 2 Char; 14-Segment; Red; 0.54" (13.72mm); 1.8V; 18-DIP (0.600", 15.24mm)
Alphanumeric Display • Number of Characters: 2 • Size / Dimension: 0.835" H x 0.992" W x 0.310" D (21.20mm x 25.20mm x 7.80mm) • Digit/Alpha Size: 0.54" (13.72mm) • Display Type: 14-Segment, Alphanumeric • Color: Red • Voltage - Forward (Vf) (Typ): 1.8V • Wavelength - Peak: 655nm • Package / Case: 18-DIP (0.600", 15.24mm)
Product Information
| Manufacturer | SunLED |
| Product Category | Display |
| Product Sub Category | Alphanumeric Display |
| Series | XAxx14x2 Series |
| Catalog Part Number | XAMR14C2 |
| Status | Obsolete |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Number of Characters | 2 |
| Size / Dimension | 0.835" H x 0.992" W x 0.310" D (21.20mm x 25.20mm x 7.80mm) |
| Digit/Alpha Size | 0.54" (13.72mm) |
| Display Type | 14-Segment, Alphanumeric |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 10mA |
| Millicandela Rating | 6mcd |
| Wavelength - Peak | 655nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Series Features |
| XAxx14x2 Series |
