Product Description
Standex Electronics PR560 Series Reed Switch; Glass Body; Through Hole; SPST-NO; 1.0 A; 30 ~ 35 AT; 10 W; Axial Leads
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPST-NO • Operate Range: 30 ~ 35 AT • Contact Rating: 10 W • Switching Voltage: 100 V • Switching Current: 1.0 A
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | PR560 Series |
| Catalog Part Number | SW PR560/30-35 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 30 ~ 35 AT |
| Contact Rating | 10 W |
| Switching Voltage | 100 V |
| Switching Current | 1.0 A |

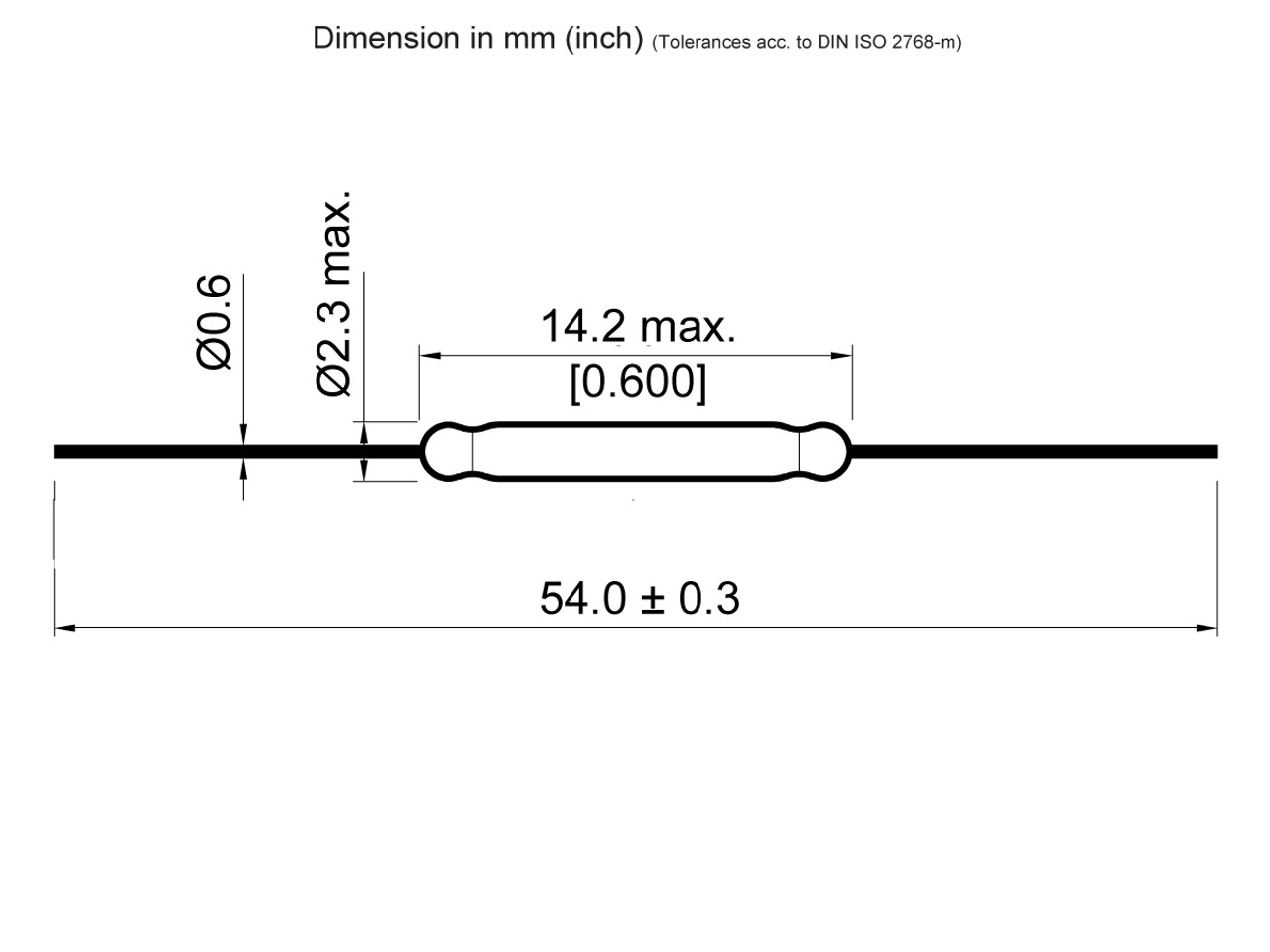

| Overall Length (mm) | 2.125" (54.0mm) |
| Size Body | 0.559" L x 0.090" Dia (14.20mm x 2.30mm) |
| Special Feature | High Voltage, Mid Power |
| Termination | Axial Leads |
Series Features
PR560 Series Reed Switch
Series DescriptionThe PR560 Series is a miniature SPST-NO (Form A) reed switch engineered for high-voltage AC and DC applications. With a glass body length of 14.2 mm and a diameter of 2.3 mm, it supports switching voltages up to 250 VAC / 100 VDC and currents up to 1.0 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the PR560 ensures long-term reliability and consistent performance in demanding environments. Its overall length of 54.0 mm and wide pull-in sensitivity range (20–50 AT) make it ideal for industrial, automotive, and appliance applications requiring mid-power switching.
- SPST-NO (Form A) contact configuration for straightforward on/off switching
- Rated for 10 W, 250 VAC / 100 VDC, and 1.0 A switching current
- Compact 14.2 mm glass body with 2.3 mm diameter for space-efficient integration
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required
- Wide pull-in sensitivity range (20–50 AT) for flexible magnetic actuation
- Overall length of 54.0 mm for versatile mounting options
Industrial Controls: High-voltage switching, motor control, relay logic
Home Appliances: Line voltage switching, power control
Automotive Systems: Battery isolation, high-current sensing
Test & Measurement Equipment: Signal routing in high-voltage environments
Security Systems: Power switching in perimeter and access control devices
Fluid Flow Systems: Pump control, valve actuation
