Standex Electronics PR126 Series Reed Switch; Glass Body; Through Hole; SPST-NO; 1.5 A; 10 ~ 20 AT; 70 W; Axial Leads
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPST-NO • Operate Range: 10 ~ 20 AT • Contact Rating: 70 W • Switching Voltage: 300/200 V • Switching Current: 1.5 A
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | PR126 Series |
| Catalog Part Number | SW PR126/10-20 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 10 ~ 20 AT |
| Contact Rating | 70 W |
| Switching Voltage | 300/200 V |
| Switching Current | 1.5 A |

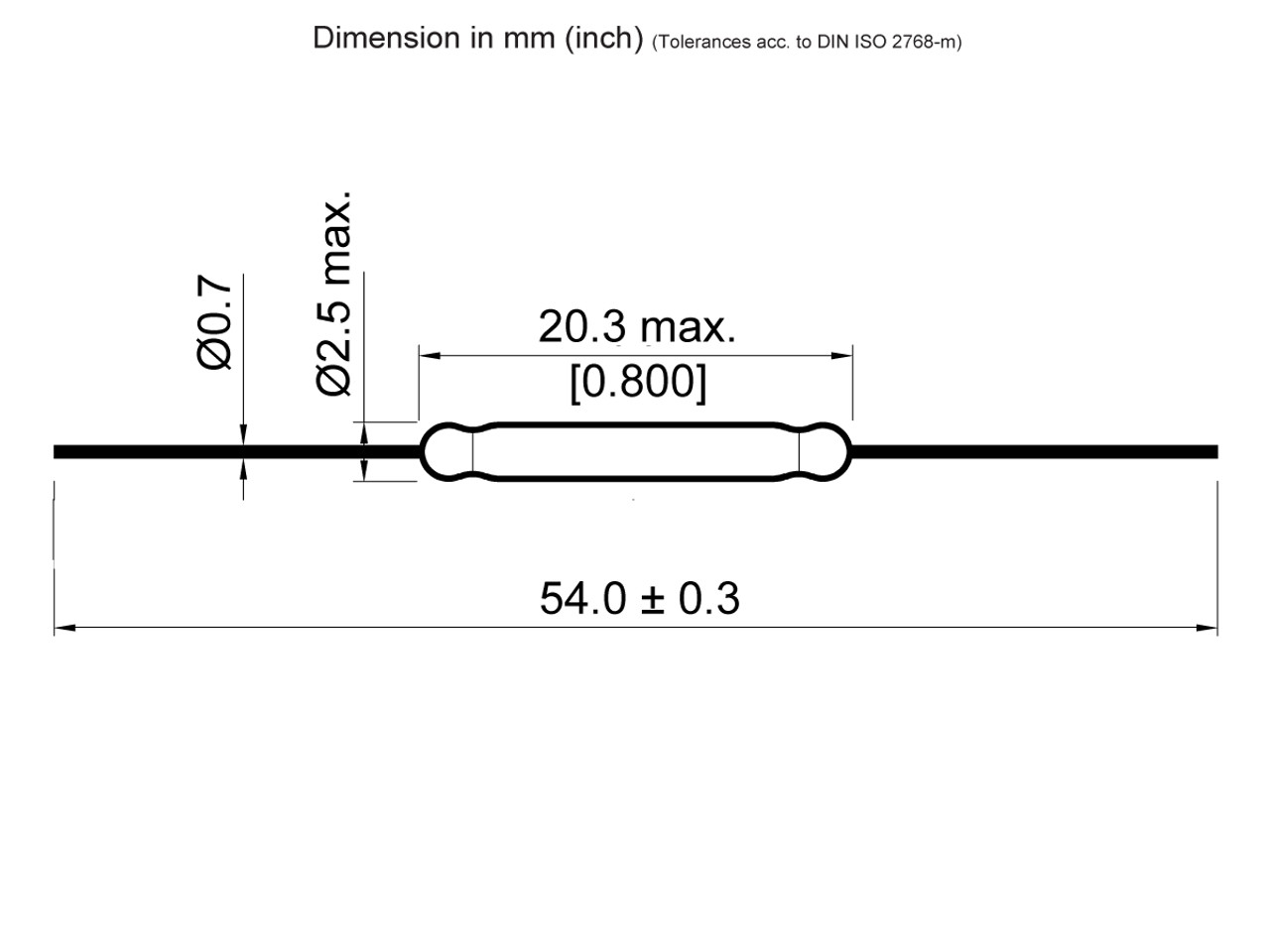

| Overall Length (mm) | 2.125" (54.0mm) |
| Size Body | 0.799" L x 0.098" Dia (20.30mm x 2.50mm) |
| Special Feature | High Power, Line Voltage |
| Termination | Axial Leads |
Series Features
PR126 Series Reed Switch
Series DescriptionThe PR126 Series is a high-power SPST-NO (Form A) reed switch designed for line voltage applications requiring robust switching capabilities. With a glass body length of 20.3 mm and a diameter of 2.5 mm, it supports switching voltages up to 300 VAC / 200 VDC and currents up to 1.5 A, with a rated power of 70 W.
Hermetically sealed in inert gas, the PR126 ensures long-term reliability and stable performance in demanding environments. Its extended overall length of 54.0 mm and wide pull-in sensitivity range (20–50 AT) make it ideal for industrial, appliance, and control applications where high voltage and current handling are essential.
- SPST-NO (Form A) contact configuration for straightforward on/off switching
- High-power capability: rated for 70 W, 300 VAC / 200 VDC, and 1.5 A switching current
- Glass body length of 20.3 mm and overall length of 54.0 mm for robust mechanical integration
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required
- Wide pull-in sensitivity range (20–50 AT) for flexible magnetic actuation
Industrial Controls: High-voltage switching, motor control, relay logic
Home Appliances: Line voltage switching, power control
Test & Measurement Equipment: High-current signal routing
Security Systems: Power switching in perimeter and access control devices
Fluid Flow Systems: Pump control, valve actuation
Automotive Systems: Battery isolation, high-current sensing
