Product Description

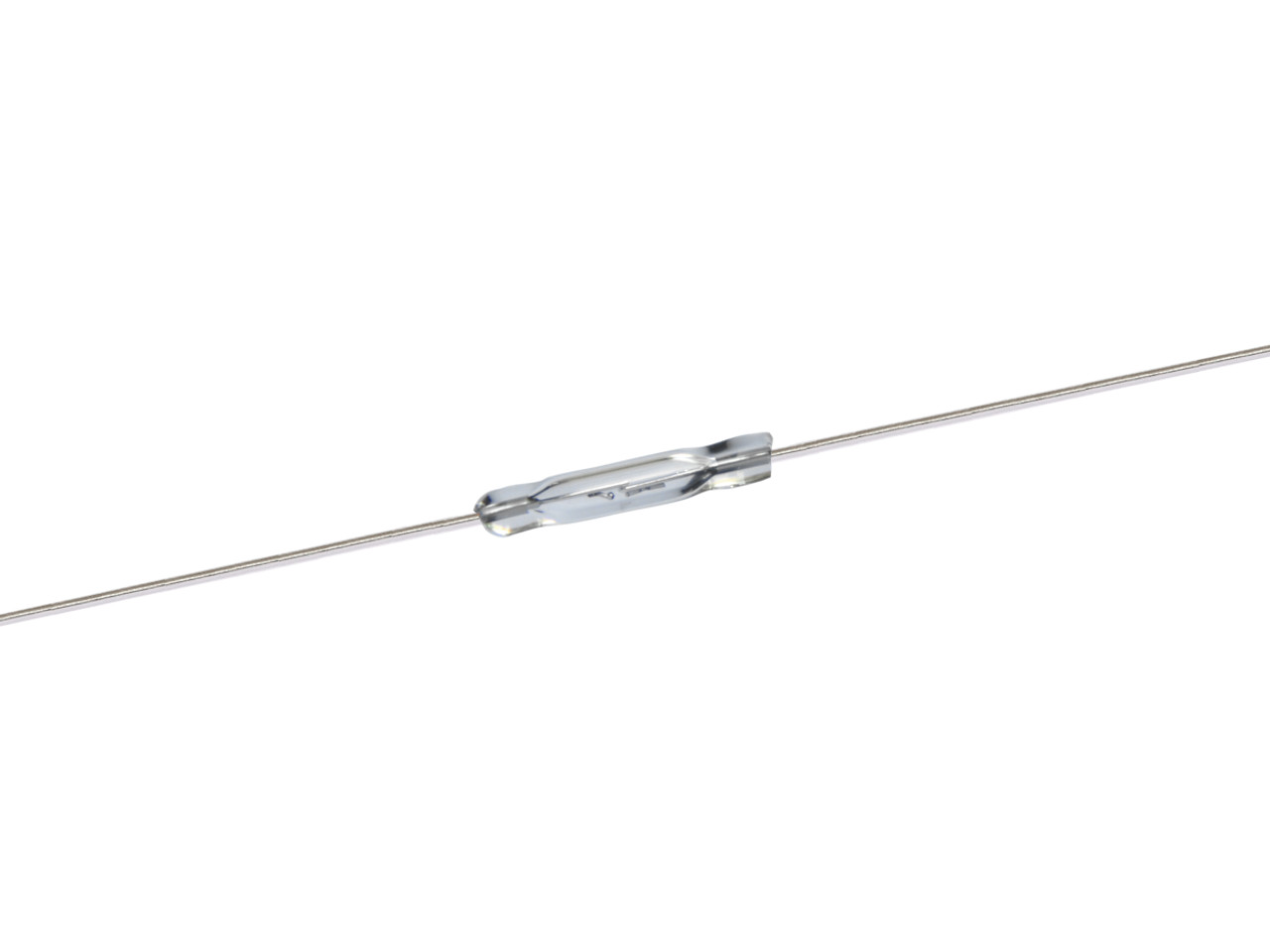

Description: Reed Switch
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Contact Configuration | SPST-NO |
| Operate Range | 10 ~ 15 AT |
| Contact Rating | 10 W |
| Switching Voltage | 200 V |
| Switching Current | 1.0 A |
| Overall Length (mm) | 2.125" (54.0mm) |
| Size Body | 0.559" L x 0.090" Dia (14.20mm x 2.30mm) |
| Special Feature | Miniature |
| Series Features |
| KSK or SW GP560 Series Reed Switch |
| Series Description: Miniature reed switch featuring a glass length of 14.2mm and diameter of 2.3mm. Rated power 10 W, Switching voltage 200 VDC, Switching current 1 Amp DC/AC. Most used. |
| Applications: Automotive, general purpose, industrial |
