Product Description

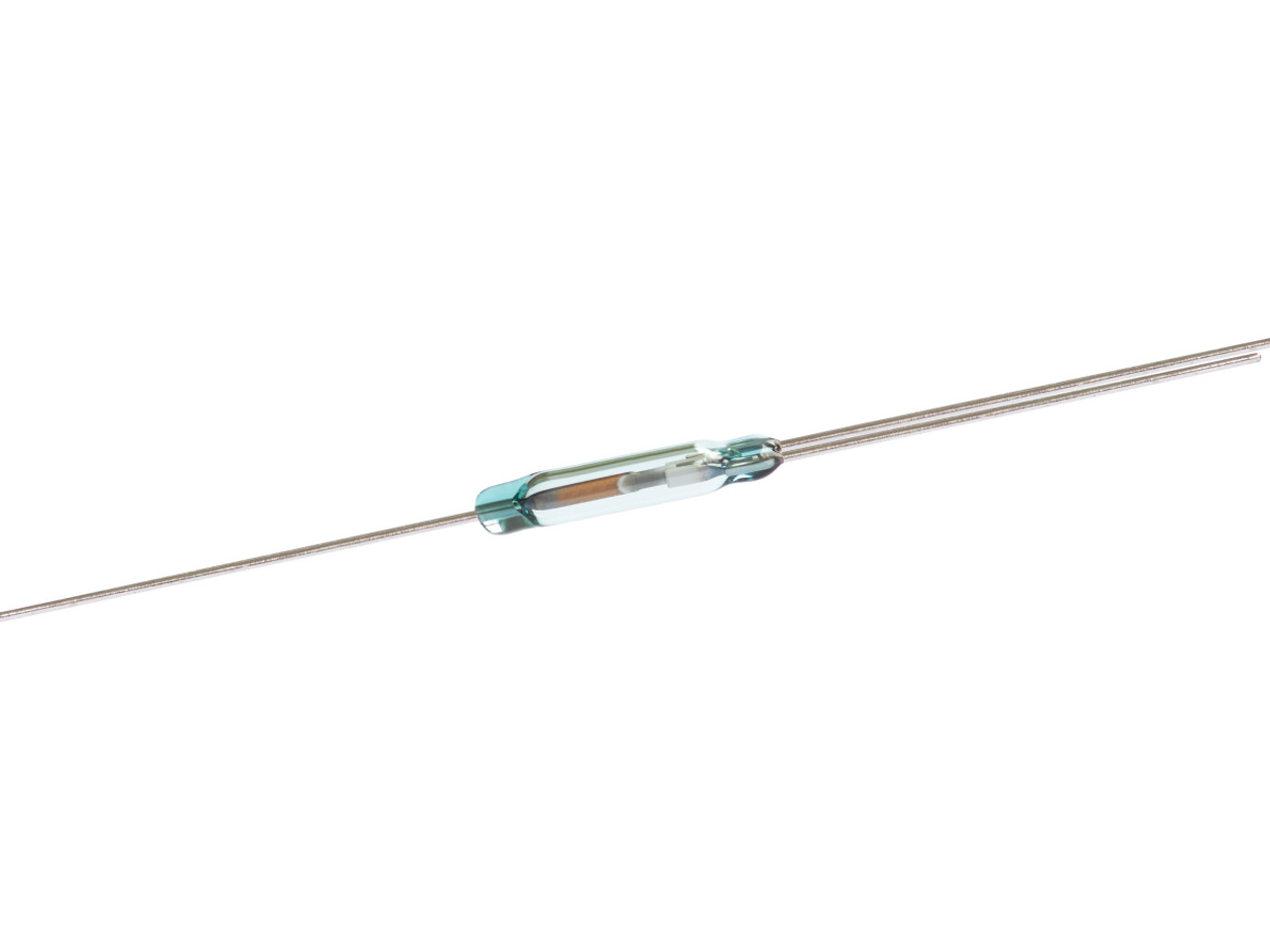

Standex Electronics ORT651 Series Reed Switch; 10 ~ 12 AT; SPDT; 3 W; Swt: 30 V; 0.2 A; Miniature, Change Over, Form C
Reed Switch • Contact Configuration: SPDT • Operate Range: 10 ~ 12 AT • Contact Rating: 3 W • Switching Voltage: 30 V • Switching Current: 0.2 A • Size Body: 0.551" L x 0.100" Dia (14.00mm x 2.54mm) • Special Feature: Miniature, Change Over, Form C
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | ORT651 Series |
| Catalog Part Number | ORT 651/10-12 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Contact Configuration | SPDT |
| Operate Range | 10 ~ 12 AT |
| Contact Rating | 3 W |
| Switching Voltage | 30 V |
| Switching Current | 0.2 A |
| Overall Length (mm) | 2.208" (56.1mm) |
| Size Body | 0.551" L x 0.100" Dia (14.00mm x 2.54mm) |
| Special Feature | Miniature, Change Over, Form C |
Series Features
ORT651 Series Reed Switch
Series DescriptionThe ORT651 Series is an ultra-miniature SPDT (Form C) reed switch designed for changeover-type operation in compact electronic systems. With a glass body length of 14.0 mm and a diameter of just 2.54 mm, it offers reliable switching under 30V DC with a rated power of 3 W and a switching current of 0.2 A.
Its hermetically sealed contacts are enclosed in inert gas to ensure long-term reliability and consistent performance. The ORT651 is ideal for applications requiring dual-circuit control in space-constrained environments, such as industrial automation, test equipment, and general-purpose electronics.
- Ultra-miniature design with a 14.0 mm glass body for tight-space integration
- SPDT (Form C) contact configuration enables changeover switching between two circuits
- Hermetically sealed contacts in inert gas for enhanced reliability and longevity
- Straight lead configuration for easy PCB mounting and mechanical stability
- Magnetically actuated with no external power required, supporting low-power designs
- Rated for 3 W, 30V DC, and 0.2 A switching current for signal-level applications
Test & Measurement (ATE): Precision switching in automated test setups
Industrial Controls: Dual-path control, actuator feedback
Consumer Electronics: Mode switching, magnetic docking systems
Security Systems: Door/window sensors with dual-state detection
Medical Devices: Compact switching in diagnostic and monitoring equipment
Smart Appliances: Multi-function sensing, fluid level control
