Product Description

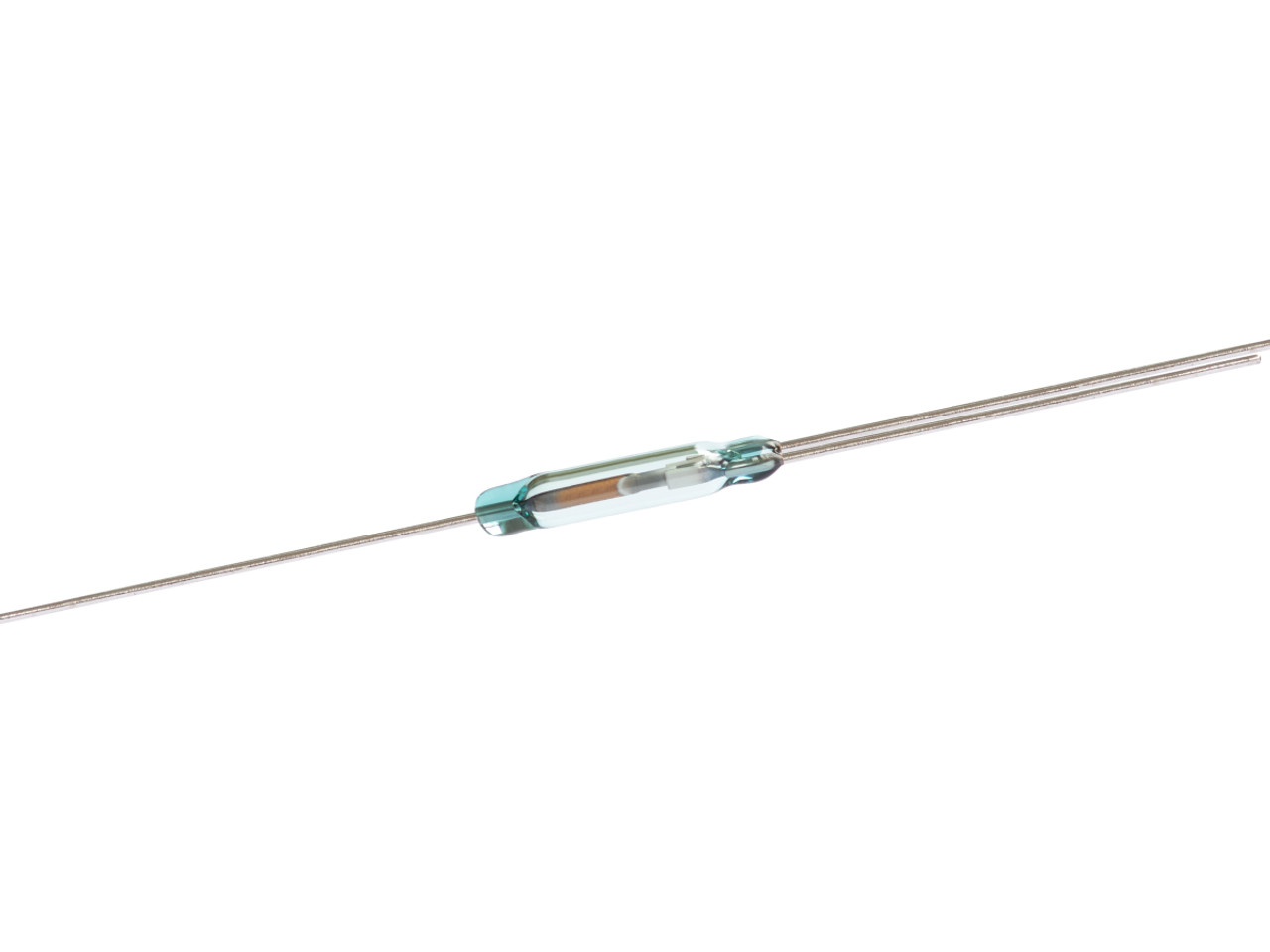

Standex Electronics ORT 551 Series Reed Switch; Glass Body; Through Hole; SPDT; 0.5 A; 15 ~ 20 AT; 10 W; Axial Leads
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPDT • Operate Range: 15 ~ 20 AT • Contact Rating: 10 W • Switching Voltage: 175 V • Switching Current: 0.5 A
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | ORT 551 Series |
| Catalog Part Number | ORT 551/15-20 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPDT |
| Operate Range | 15 ~ 20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 175 V |
| Switching Current | 0.5 A |
| Overall Length (mm) | 2.208" (56.1mm) |
| Size Body | 0.551" L x 0.100" Dia (14.00mm x 2.54mm) |
| Special Feature | Miniature, Change Over, Form C |
| Termination | Axial Leads |
Series Features
ORT551 Series Reed Switch
Series DescriptionThe ORT551 Series is a miniature SPDT (Form C) reed switch designed for changeover-type operation in compact electronic systems. With a glass body length of 14.0 mm and a diameter of 2.54 mm, it offers reliable switching under 30 VDC with a rated power of 3 W and a switching current of 0.2 A.
This switch is hermetically sealed in inert gas to ensure long-term contact reliability and consistent performance. Its compact form factor and dual-contact configuration make it ideal for applications requiring precise state detection, redundancy, or dual-path control in low-voltage environments.
- SPDT (Form C) contact configuration for flexible changeover switching
- Compact 14.0 mm glass body for space-constrained designs
- Hermetically sealed contacts in inert gas for enhanced durability and reliability
- Straight lead configuration for easy PCB mounting and mechanical stability
- Magnetically actuated with no external power required, ideal for energy-efficient systems
- Rated for 3 W, 30 VDC, and 0.2 A switching current for signal-level applications
Consumer Electronics: Mode switching, magnetic docking systems
Security Systems: Door/window sensors with dual-state detection
Medical Devices: Compact switching in diagnostic and monitoring equipment
Industrial Automation: State toggling in control systems and actuators
Smart Appliances: Multi-function sensing, fluid level control
Automotive Systems: Position detection, dual-path signal routing
