Product Description
Standex Electronics ORD 9215 Series Reed Switch; Glass Body; Through Hole; SPST-NO; 0.4 A; 25 ~ 30 AT; 10 W; Axial Leads
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPST-NO • Operate Range: 25 ~ 30 AT • Contact Rating: 10 W • Switching Voltage: 320 V • Switching Current: 0.4 A
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | ORD 9215 Series |
| Catalog Part Number | ORD 9215/25-30 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 25 ~ 30 AT |
| Contact Rating | 10 W |
| Switching Voltage | 320 V |
| Switching Current | 0.4 A |

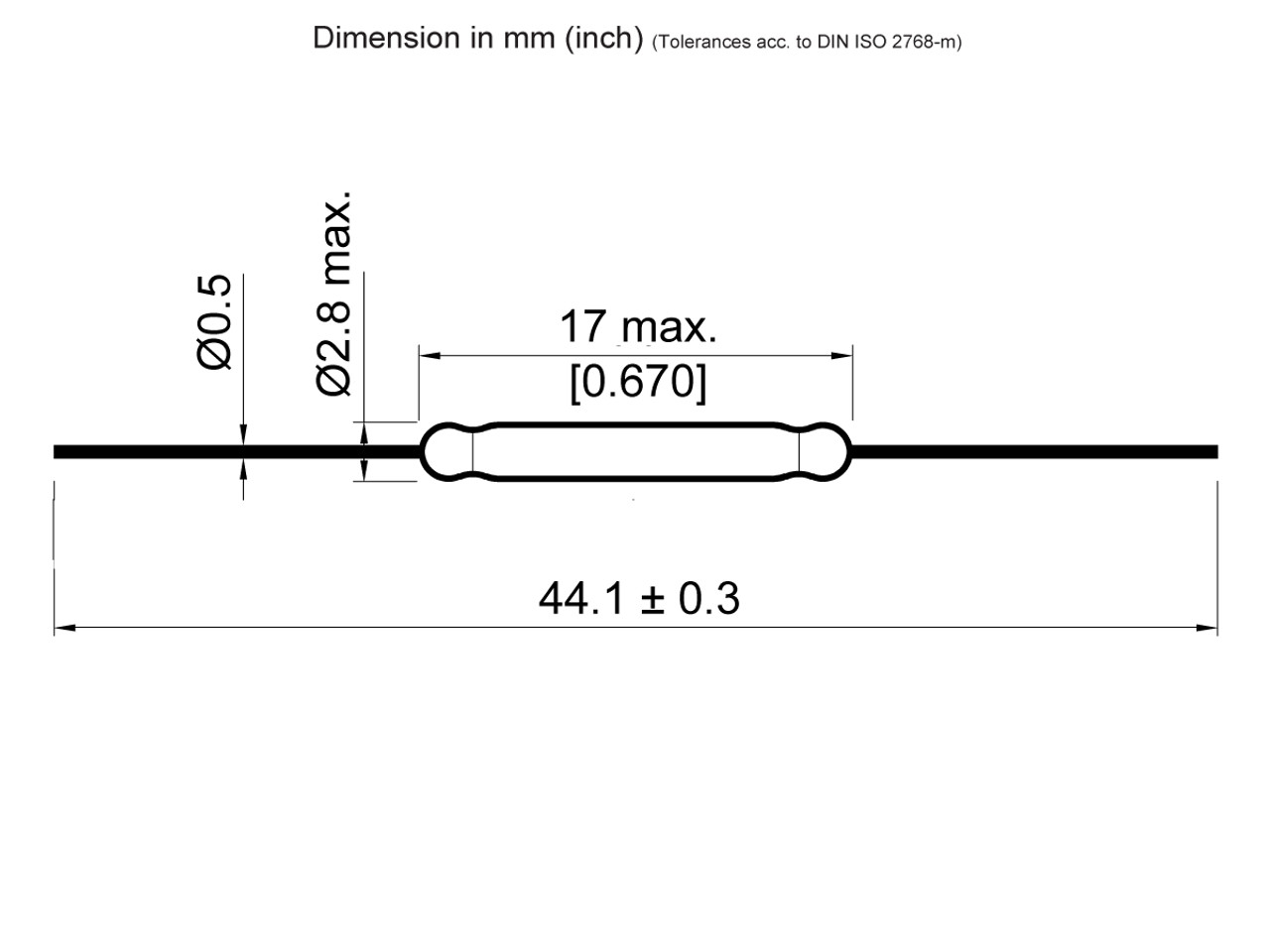

| Overall Length (mm) | 1.736" (44.1mm) |
| Size Body | 0.669" L x 0.110" Dia (17.00mm x 2.80mm) |
| Special Feature | - |
| Termination | Axial Leads |
Series Features
ORD9215 Series Reed Switch
Series DescriptionThe ORD9215 Series is a general-purpose miniature reed switch designed for reliable SPST-NO (Form A) switching in medium-load applications. With a glass body length of 17.0 mm and a diameter of 2.8 mm, it supports switching voltages up to 100 VDC and currents up to 0.4 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the ORD9215 ensures long-term contact reliability and stable performance across a wide range of operating conditions. Its compact form factor and broad sensitivity range (10–50 AT) make it ideal for integration into consumer, industrial, and telecom systems.
- SPST-NO (Form A) contact configuration for simple on/off switching
- Compact 17.0 mm glass body with 2.8 mm diameter for space-efficient designs
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required, ideal for low-power systems
- Rated for 10 W, 100 VDC, and 0.4 A switching current for medium-load applications
- Wide pull-in sensitivity range (10–50 AT) for flexible magnetic actuation
Test & Measurement Equipment: High-voltage switching in automated test setups
Industrial Controls: Power distribution, relay logic, and fault detection
Automotive Systems: EV battery isolation, high-voltage sensing
Medical Equipment: Isolation switching in diagnostic and imaging systems
HVAC & White Goods: Line voltage switching and control
Security Systems: High-voltage perimeter sensors and tamper detection
