Product Description
Standex Electronics ORD 324 Series Reed Switch; Glass Body; Through Hole; SPST-NO; 0.5 A; 08 ~ 11 AT; 10 W; Axial Leads
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPST-NO • Operate Range: 08 ~ 11 AT • Contact Rating: 10 W • Switching Voltage: 200 V • Switching Current: 0.5 A
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | ORD 324 Series |
| Catalog Part Number | ORD 324/08-11 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 08 ~ 11 AT |
| Contact Rating | 10 W |
| Switching Voltage | 200 V |
| Switching Current | 0.5 A |
| Overall Length (mm) | 1.744" (44.3mm) |

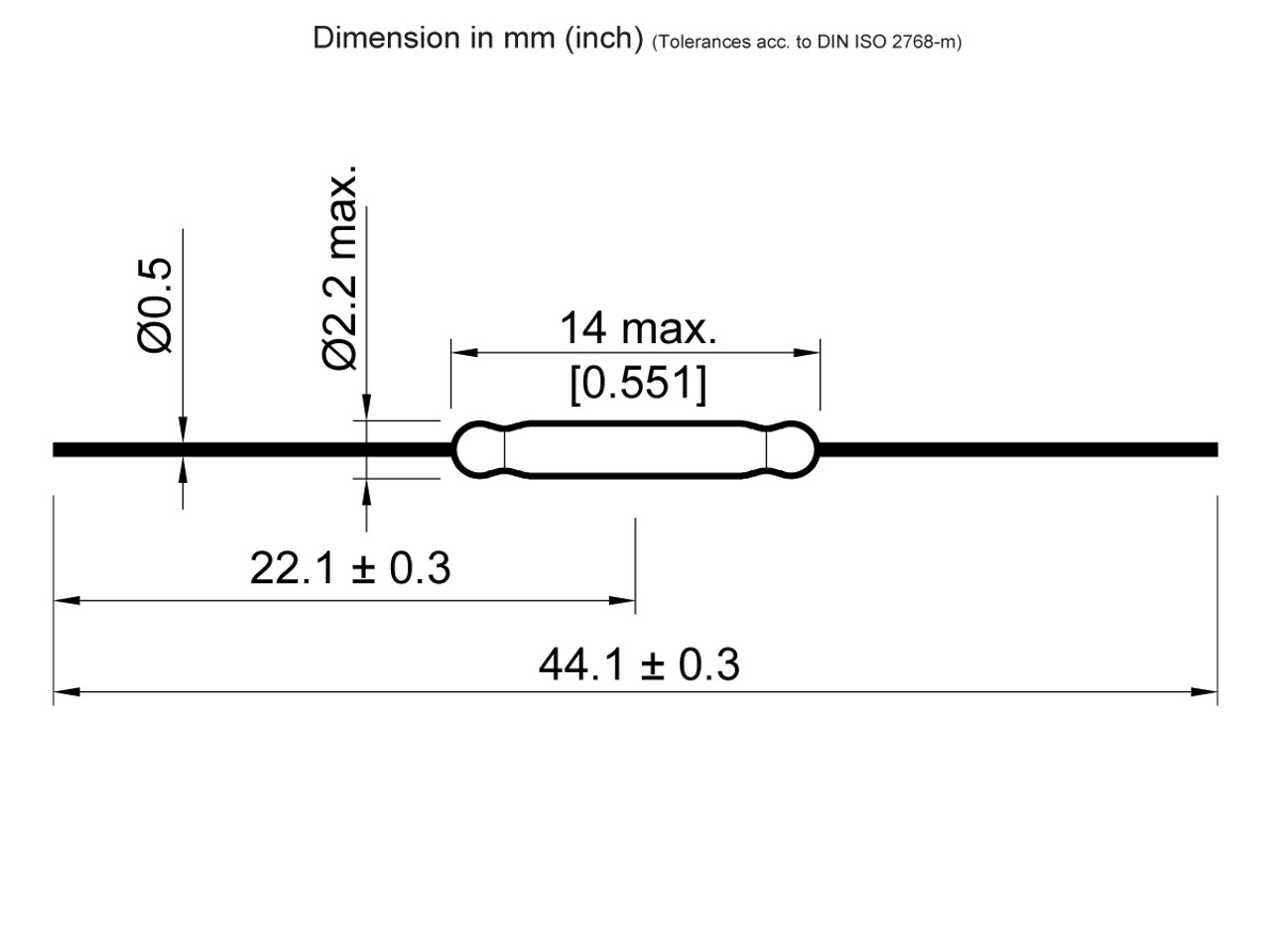

| Size Body | 0.551" L x 0.086" Dia (14.00mm x 2.20mm) |
| Special Feature | General Purpose, Miniature |
| Termination | Axial Leads |
Series Features
ORD324 Series Reed Switch
Series DescriptionThe ORD324 Series is a miniature SPST-NO (Form A) reed switch designed for general-purpose switching in medium-load applications. With a glass body length of 14.0 mm and a diameter of 2.2 mm, it supports switching voltages up to 200 VDC and currents up to 0.5 A, with a rated power of 10 W.
Hermetically sealed in inert gas, the ORD324 ensures long-term contact reliability and consistent performance. Its compact form factor and robust electrical ratings make it one of the most widely used switches in industrial, consumer, and automotive applications.
- SPST-NO (Form A) contact configuration for simple on/off switching
- Compact 14.0 mm glass body for space-constrained designs
- Hermetically sealed contacts in inert gas for enhanced durability and corrosion resistance
- Magnetically actuated with no external power required, ideal for low-power systems
- Rated for 10 W, 200 VDC, and 0.5 A switching current for medium-load applications
- Straight lead configuration for easy PCB mounting and mechanical stability
Automotive Systems: Fluid level sensing, seatbelt latch detection
Industrial Controls: Position sensing, relay logic, fault detection
Consumer Electronics: Magnetic lid detection, proximity sensing
Medical Devices: Compact switching in diagnostic and monitoring equipment
Smart Appliances: Door interlock sensing, water level control
Security Systems: Window/door sensors, tamper detection
