Product Description

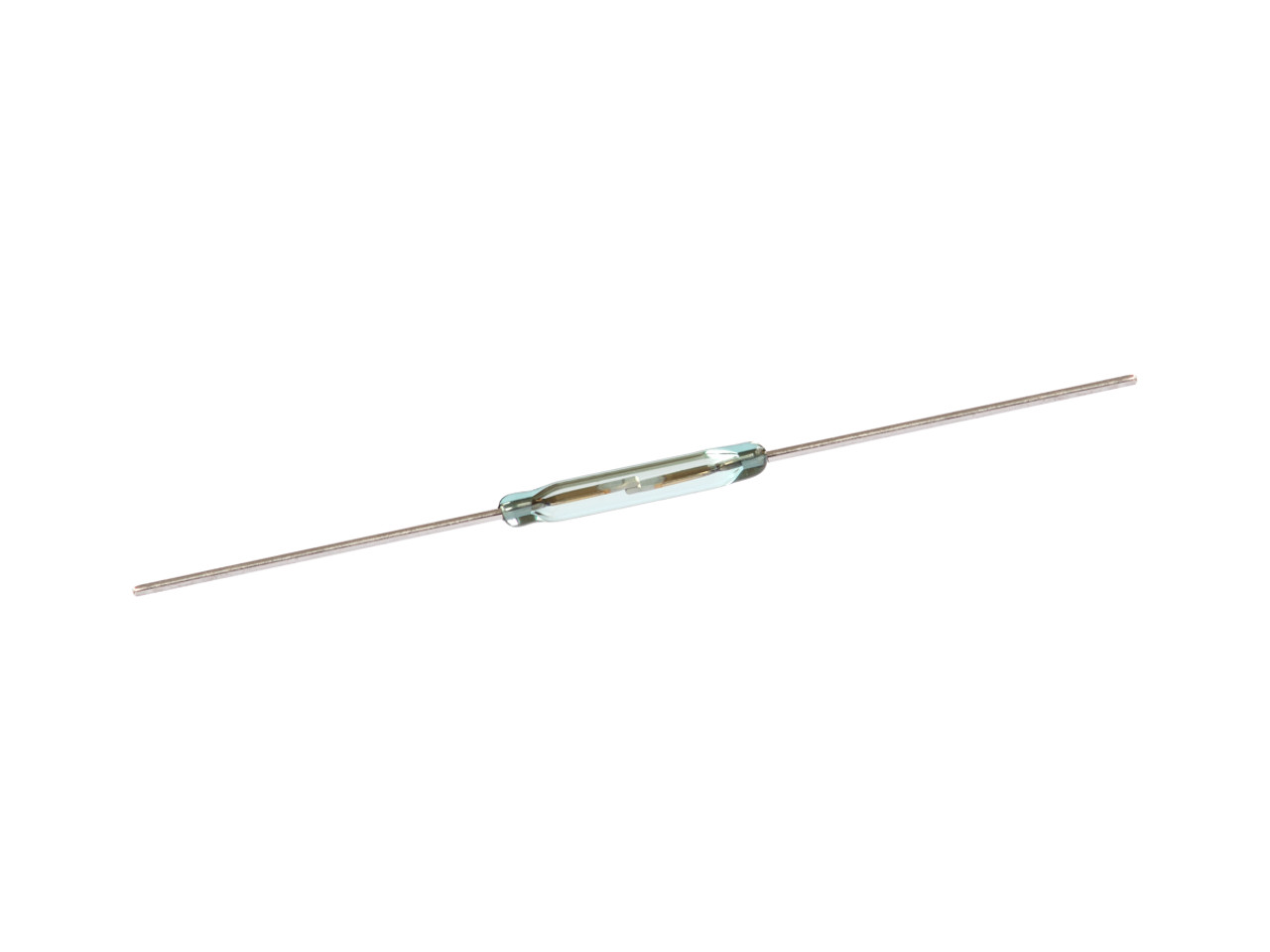

Standex Electronics ORD 312 Series Reed Switch; Glass Body; Through Hole; SPST-NO; 0.5 A; 10 ~ 15 AT; 30 W; Axial Leads
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPST-NO • Operate Range: 10 ~ 15 AT • Contact Rating: 30 W • Switching Voltage: 200 V • Switching Current: 0.5 A
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | ORD 312 Series |
| Catalog Part Number | ORD 312/10-15 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 10 ~ 15 AT |
| Contact Rating | 30 W |
| Switching Voltage | 200 V |
| Switching Current | 0.5 A |

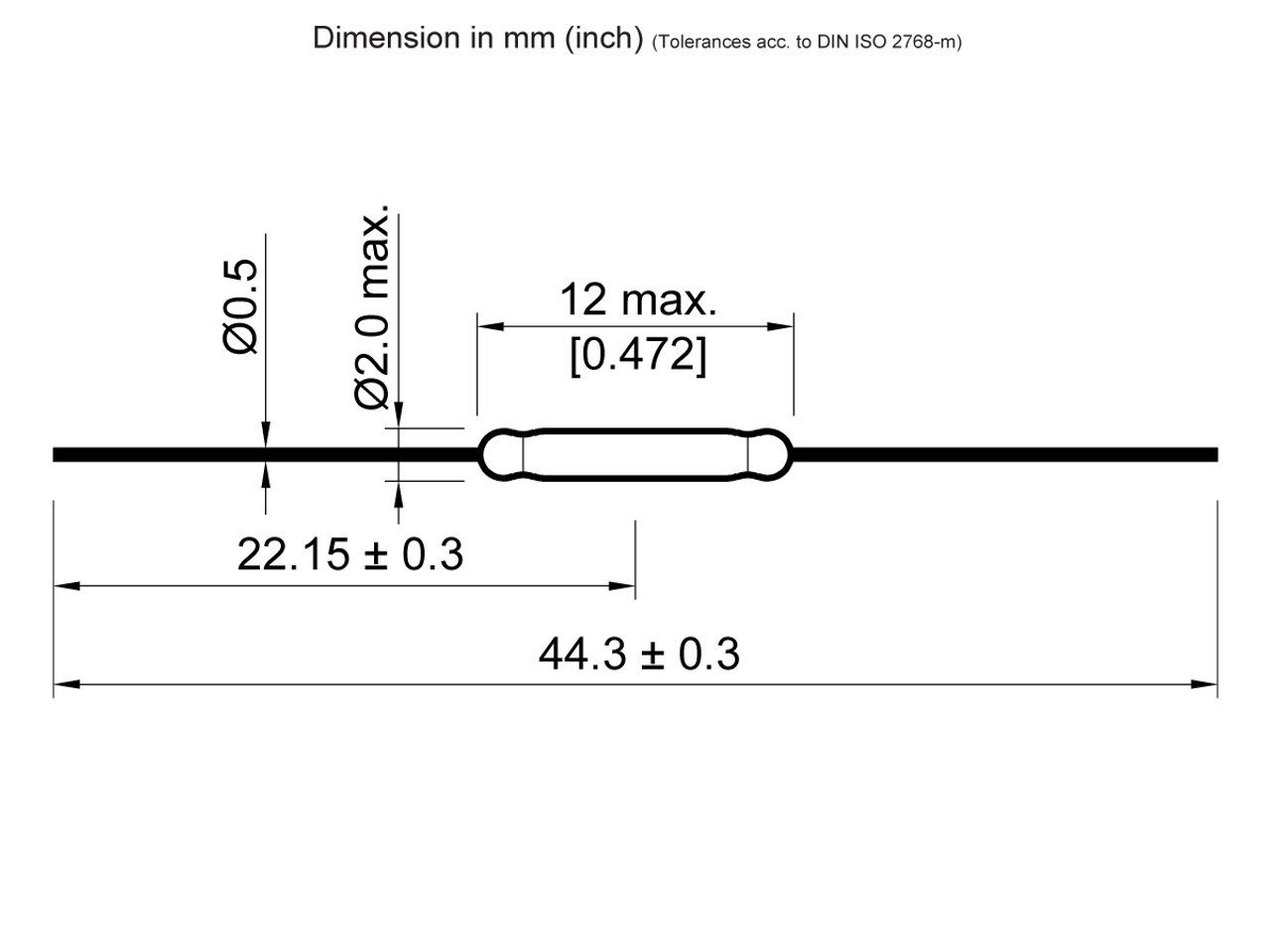

| Overall Length (mm) | 1.744" (44.3mm) |
| Size Body | 0.472" L x 0.078" Dia (12.00mm x 2.00mm) |
| Special Feature | High Power, Long Life Ir |
| Termination | Axial Leads |
Series Features
ORD312 Series Reed Switch
Series DescriptionThe ORD312 Series is a high-power, long-life reed switch engineered for precision switching in demanding environments. With a glass body length of 12.0 mm and diameter of 2.0 mm, this SPST-NO (Form A) switch supports switching voltages up to 200 VDC, currents up to 0.5 A, and a rated power of 30 VA.
Featuring iridium contacts for enhanced durability, the ORD312 offers ultra-low contact resistance (<100 mΩ) and can reliably switch signals as low as 10 nanovolts and 1 femtoamp without loss. Its hermetically sealed design ensures consistent performance in harsh conditions, including exposure to salt spray, humidity, chemicals, and dust.
- Iridium contact material for extended switch life and high reliability
- Can switch ultra-low signals without degradation—ideal for sensitive electronics
- Hermetically sealed in inert gas for protection against environmental contaminants
- Shock and vibration resistant, suitable for rugged industrial use
- Consumes no power in the open state, supporting energy-efficient designs
- High insulation resistance and low electrostatic capacitance (<0.3 pF)
Industrial automation and control systems
Test and measurement equipment (ATE)
Automotive sensors and electronics
Security and alarm systems
Medical devices requiring isolated switching
Communication and signal routing systems
