Product Description

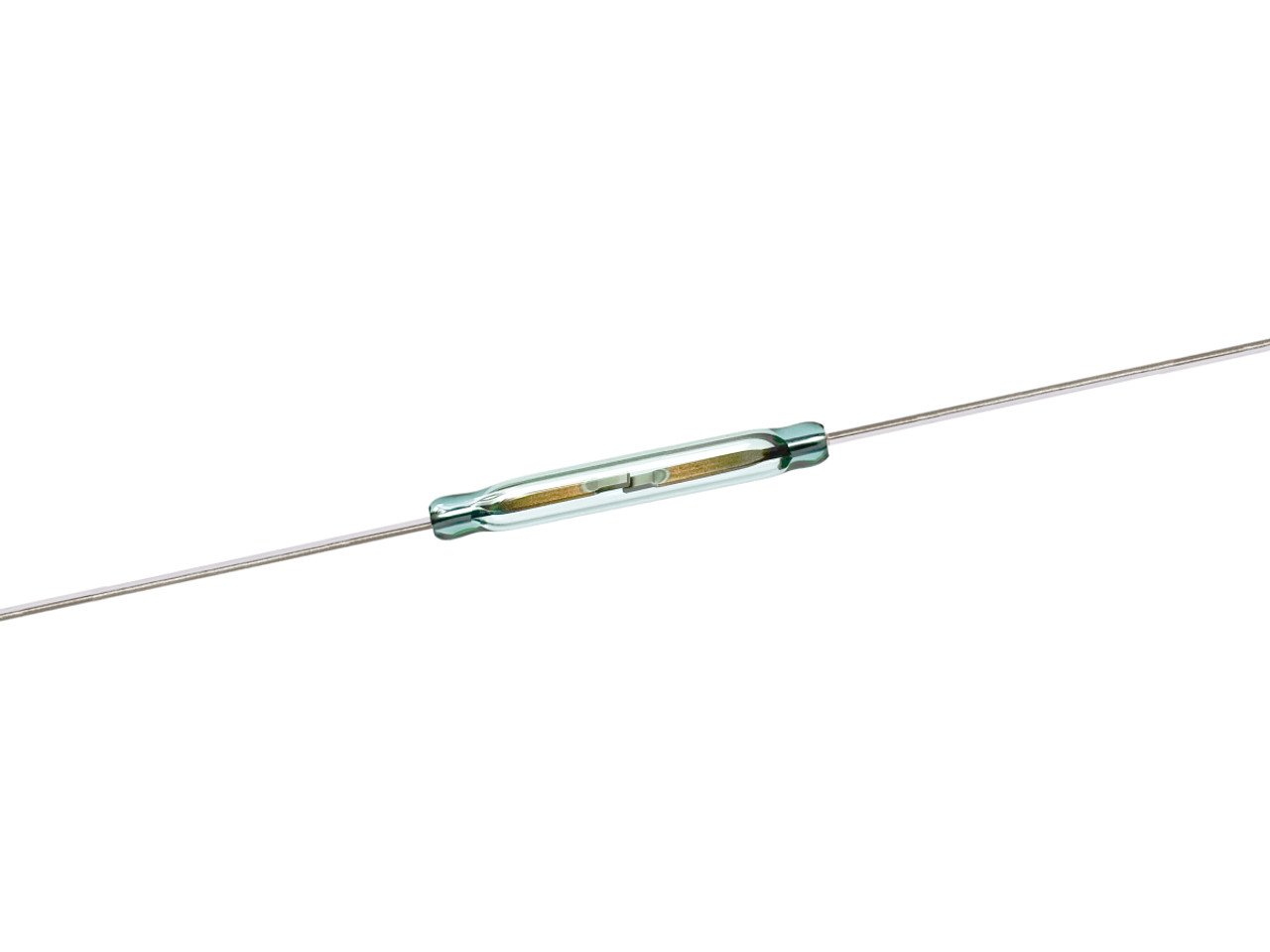

Standex Electronics ORD 2210V Series Reed Switch; Glass Body; Through Hole; SPST-NO; 1.0 A; 25 ~ 30 AT; 100 W; Axial Leads
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPST-NO • Operate Range: 25 ~ 30 AT • Contact Rating: 100 W • Switching Voltage: 1000 V • Switching Current: 1.0 A
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | ORD 2210V Series |
| Catalog Part Number | ORD 2210V/25-30 AT |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 25 ~ 30 AT |
| Contact Rating | 100 W |
| Switching Voltage | 1000 V |
| Switching Current | 1.0 A |
| Overall Length (mm) | 2.185" (55.5mm) |
| Size Body | 0.826" L x 0.108" Dia (21.00mm x 2.75mm) |
| Special Feature | High Power, High Voltage |
| Termination | Axial Leads |
Series Features
ORD2210V Series Reed Switch
Series DescriptionThe ORD2210V Series is a vacuum-type, high-voltage reed switch engineered for demanding applications requiring robust electrical performance and compact form factor. With a glass body length of 21.0 mm and diameter of 2.75 mm, this SPST-NO (Form A) switch supports switching voltages up to 1,000 VDC, currents up to 1.0 A, and a rated power of 100 W.
Its hermetically sealed construction ensures long-term reliability in harsh environments, while a wide operate range (20–60 AT) allows for flexible magnetic actuation. The ORD2210V is ideal for general-purpose, high-power, and industrial applications.
- Vacuum-sealed contacts for ultra-high breakdown voltage and long-term reliability
- High-voltage capability up to 1,000 VDC for demanding electrical environments
- Compact and rugged design suitable for high-power circuits
- Hermetically sealed glass body protects against moisture and contaminants
- Fast switching response for precise control and timing
- Wide operate range options for flexible magnetic sensitivity tuning
Industrial automation and control systems
High-voltage switching in power electronics
Test and measurement equipment (ATE)
Automotive sensors and controls
Smart grid and energy systems
Electric vehicle charging and detection systems
