To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Standex Electronics / Meder |
| Manufacturer Product Number | ORD 213/13-15 AT |

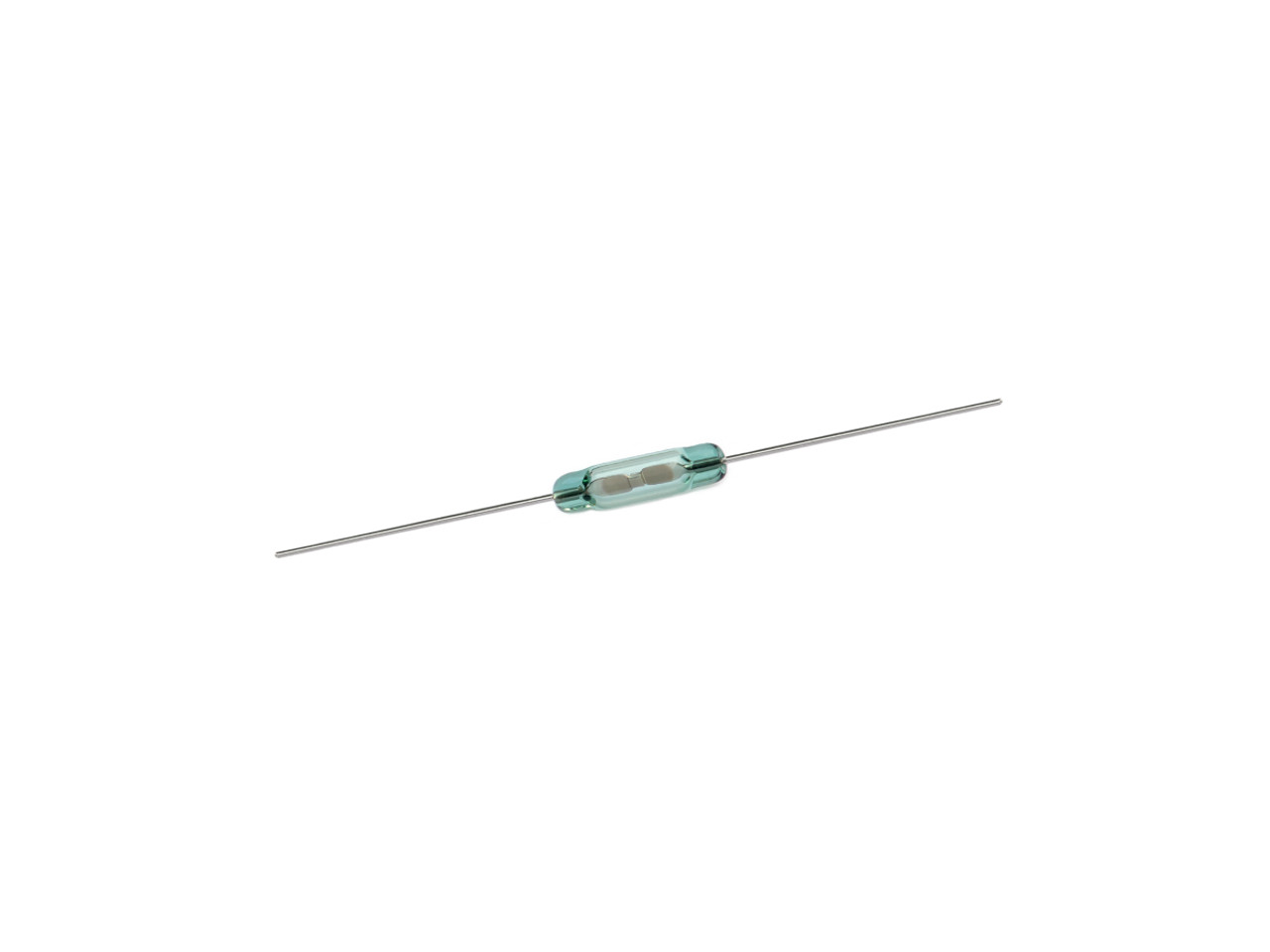

| Description | Reed Switch; Glass Body; Through Hole; SPST-NO; 0.5 A; 13 ~ 15 AT; 10 W; Axial Leads |
| Datasheet | Download Datasheet |
Reed Switch • Type: Glass Body • Mounting: Through Hole • Contact Configuration: SPST-NO • Operate Range: 13 ~ 15 AT • Contact Rating: 10 W • Switching Voltage: 170 V • Switching Current: 0.5 A
| Category | |
| Manufacturer | Standex Electronics / Meder |
| Type | Glass Body |
| Mounting | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 13 ~ 15 AT |
| Contact Rating | 10 W |
| Switching Voltage | 170 V |
| Switching Current | 0.5 A |

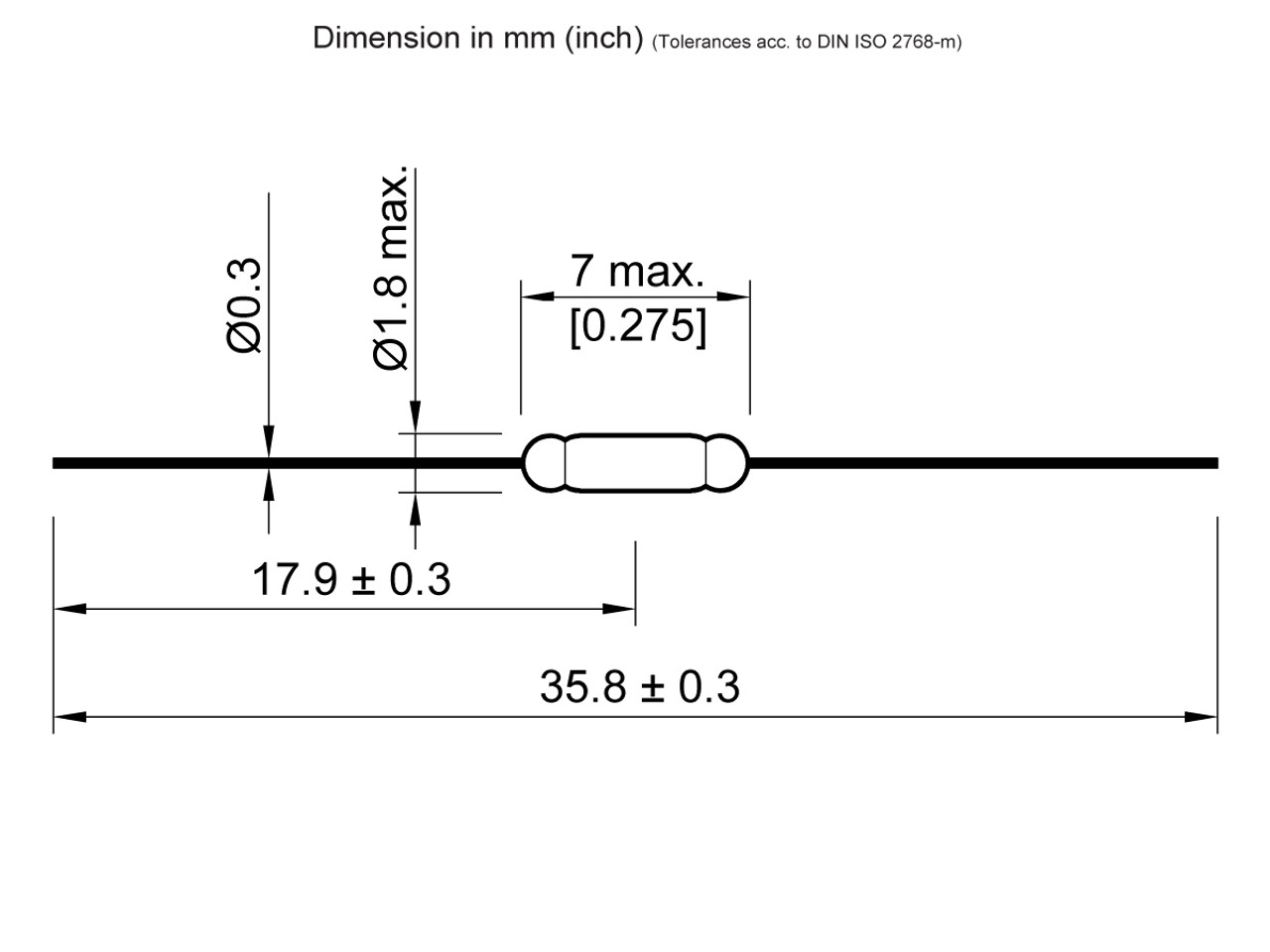

| Overall Length (mm) | 1.410" (35.8mm) |
| Size Body | 0.275" L x 0.070" Dia (7.00mm x 1.80mm) |
| Special Feature | Ultraminiature, Close Differential |
| Termination | Axial Leads |
