Product Description

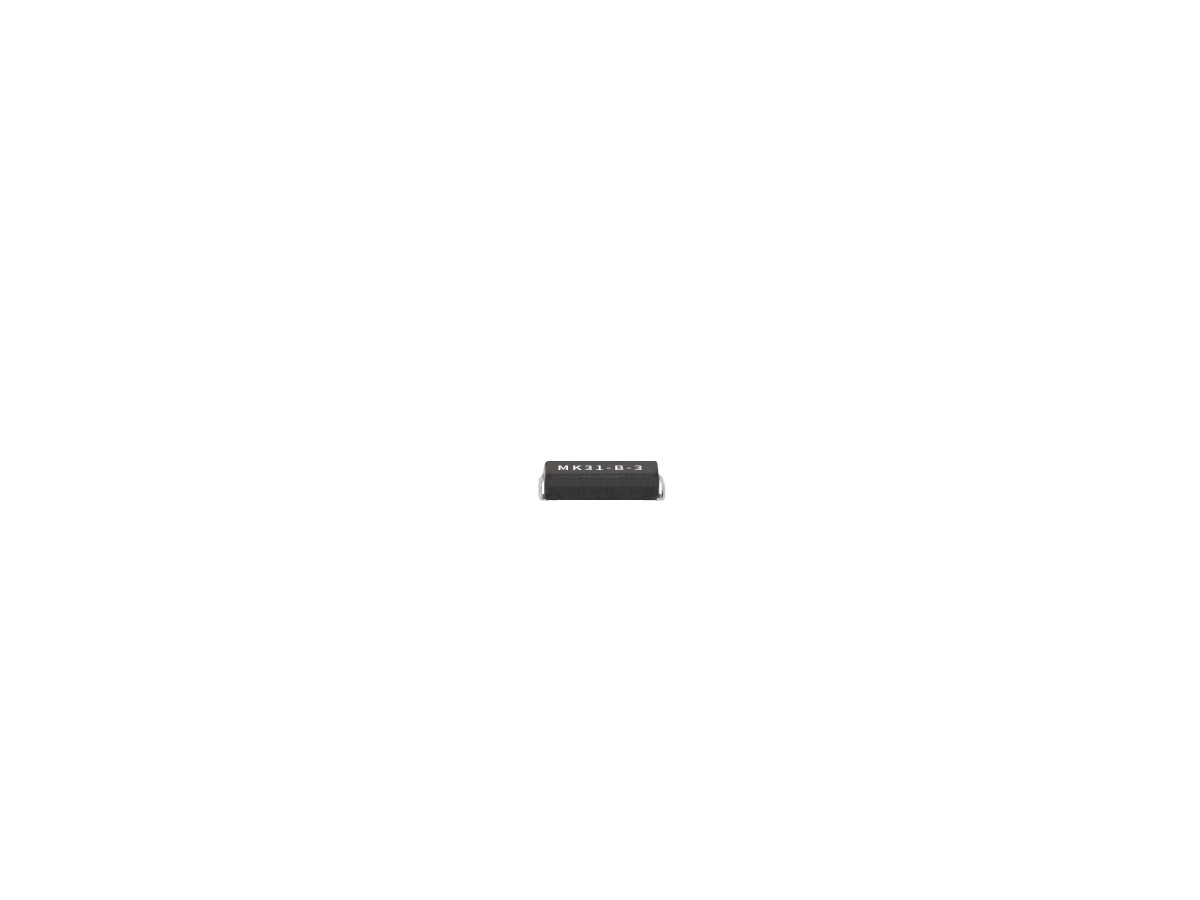

Standex Electronics MK31 Series Reed Switch; SMD - Molded Body; SPST-NO; 10-15 AT; 0.3 A; J Bend
Reed Switch • Reed Switch • Mounting Style: SMD - Molded Body • Contact Configuration: SPST-NO • Operate Range: 10-15 AT • Switching Current: 0.3 A • Termination: J Bend
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | MK31 Series |
| Catalog Part Number | MK31-B-3 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | SMD - Molded Body |
| Contact Configuration | SPST-NO |
| Operate Range | 10-15 AT |
| Contact Rating | 3 W |
| Switching Voltage | 30 V |
| Switching Current | 0.3 A |
| Size Body | 0.252" L x 0.087" W x 0.071" H (6.40mm x 2.20mm x 1.80mm) |
| Termination | J Bend |
| Packaging | Tape & Reel |
Series Features
MK31 Series Surface Mount Reed Switch
Series DescriptionThe MK31 Series is a compact, molded-body SPST-NO (Form A) reed sensor designed for precision and durability. With a centrally aligned paddle gap and rounded corners, it ensures consistent magnetic sensitivity and mechanical stability. Supplied in Tape & Reel packaging, it supports high-volume automated assembly.
- Hermetically sealed for long-term reliability
- Excellent coplanarity and solderability
- Ideal for low-power and space-limited designs
Medical devices
Security systems
Telecommunications
White goods
Metering and sabotage detection
