Product Description
Standex Electronics MK24 Series Reed Switch; SMD - Molded Body; SPST-NO; 10-15 AT; 0.3 A; Axial
Reed Switch • Reed Switch • Mounting Style: SMD - Molded Body • Contact Configuration: SPST-NO • Operate Range: 10-15 AT • Switching Current: 0.3 A • Termination: Axial
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | MK24 Series |
| Catalog Part Number | MK24-B-1 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | SMD - Molded Body |
| Contact Configuration | SPST-NO |
| Operate Range | 10-15 AT |
| Contact Rating | 3 W |
| Switching Voltage | 30 V |
| Switching Current | 0.3 A |

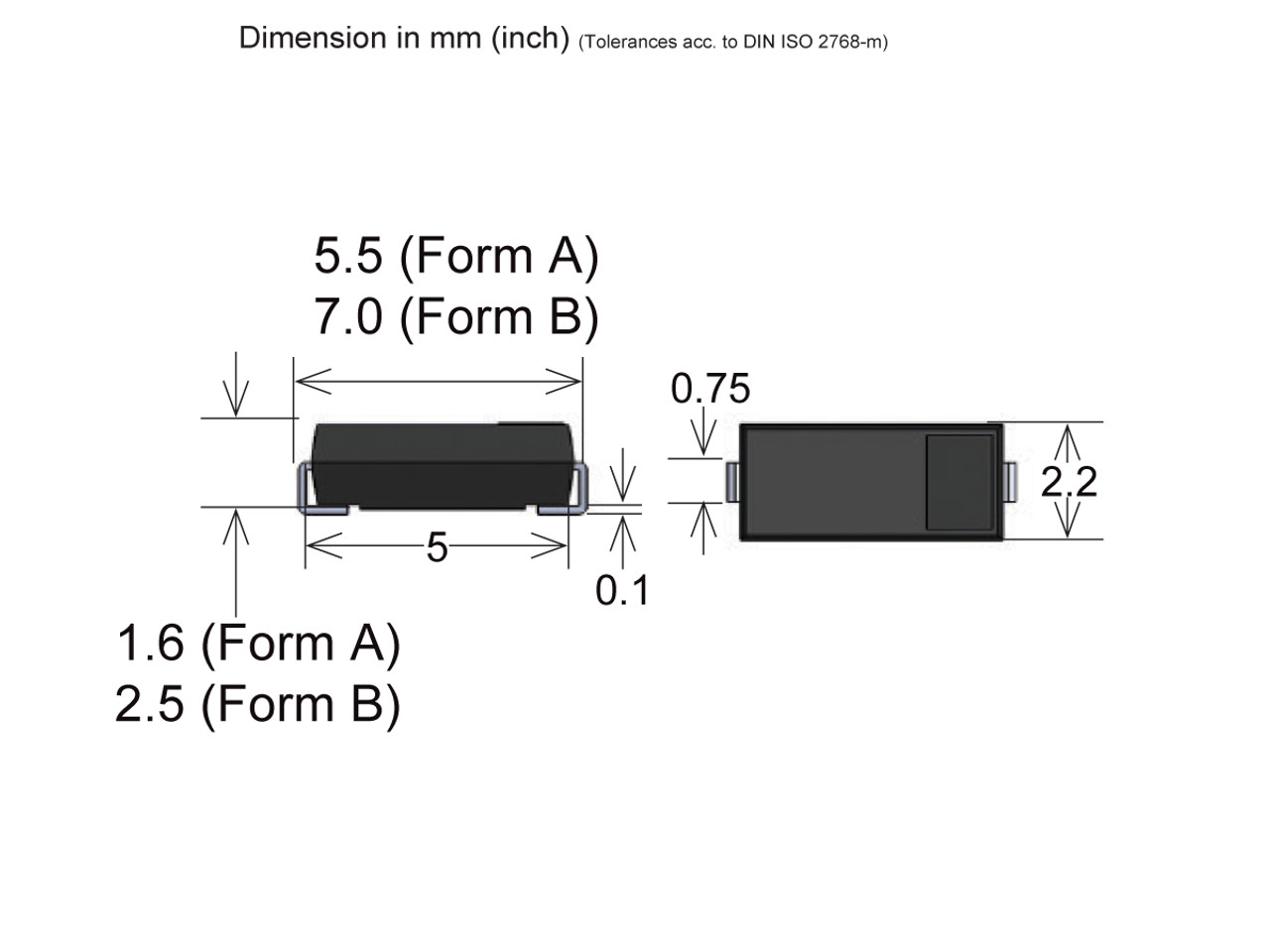

| Size Body | 0.197" L x 0.087" W x 0.063" H (5.00mm x 2.20mm x 1.60mm) |
| Termination | Axial |
| Packaging | Tape & Reel |
Series Features
MK24 Series Surface Mount Reed Switch
Series DescriptionThe MK24 Series is an ultra-miniature, molded-body SPST reed sensor available in both Normally Open (Form A) and Normally Closed (Form B) configurations. Designed for surface mount applications, it features a compact footprint and is ideal for low-power, space-constrained designs. Supplied in Tape & Reel packaging per IEC 286/Part 3, it supports automated pick-and-place assembly.
- Compact molded body for tight PCB layouts
- Optional Form B for fail-safe designs
- Excellent for low-power operations
- Lead Styles: Axial, Gull Wing, J-Bend
- Mounting Type: Surface Mount
- Packaging: Tape & Reel (IEC 286/Part 3)
Portable medical devices
White goods and appliances
Telecommunications
Security and sabotage detection
Metering systems
