Product Description
Description: Reed Switch
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Contact Configuration | SPST-NO |
| Operate Range | 25 ~ 30 AT |
| Contact Rating | 20 W |
| Switching Voltage | 200 V |
| Switching Current | 1.0 A |

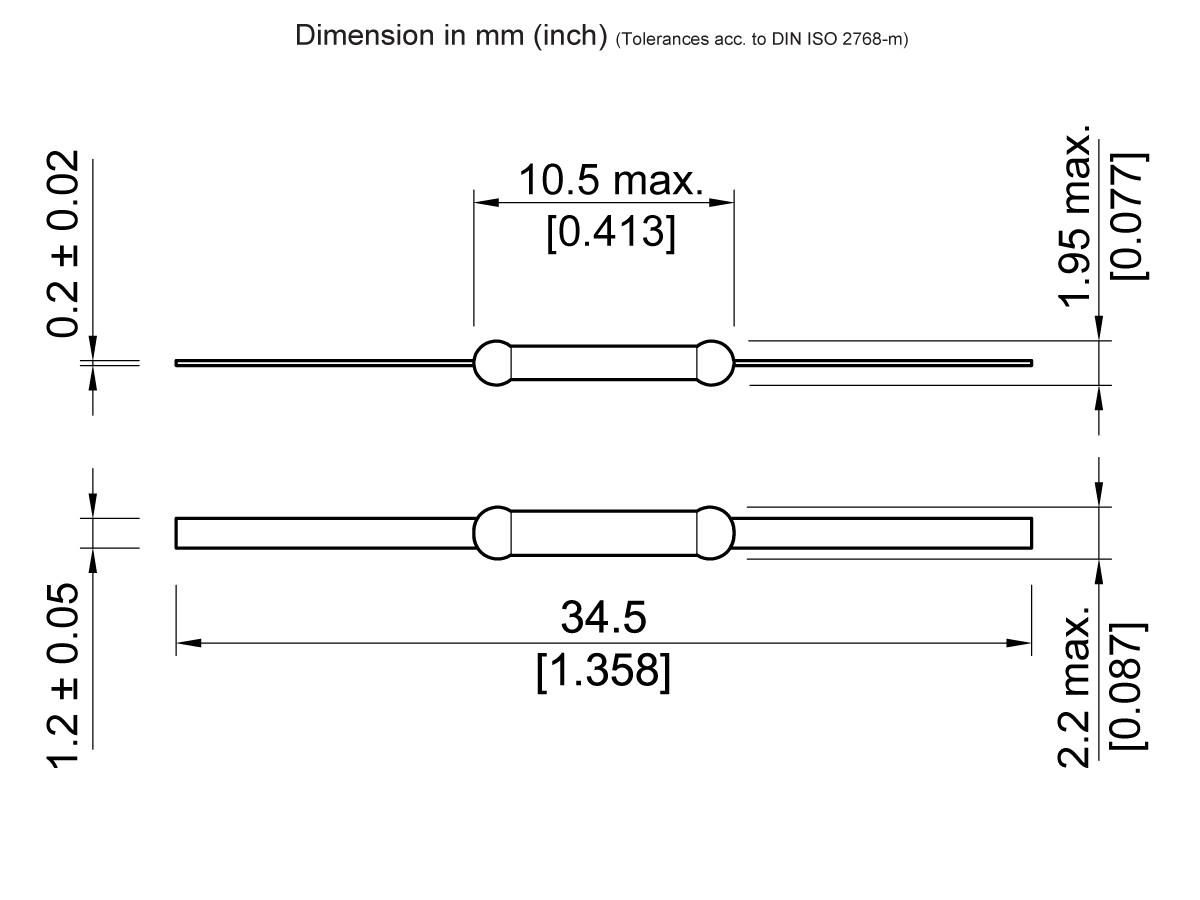

| Overall Length (mm) | 1.358" (34.5mm) |
| Size Body | 0.413" L x 0.082" Dia (10.50mm x 2.10mm) |
| Special Feature | Miniature, Flat Lead |
| Series Features |
| KSK-1A35 Series Reed Switch |
| Series Description: Miniature reed switch with glass length of 10.5mm and diameter of 2.1mm. Rated power 20 W, Switching voltage 200 VDC, Switching current 1 Amp DC. UL approval, flat leads. |
| Applications: General purpose, automotive, test and measurement (ATE) |
