Product Description
Standex Electronics KSK-1A35/1 Series Reed Switch; 25 ~ 30 AT; SPST-NO; 10 W; 1000 V; 0.7 A; Miniature, High Voltage
Reed Switch • Contact Configuration: SPST-NO • Operate Range: 25 ~ 30 AT • Contact Rating: 10 W • Switching Voltage: 1000 V • Switching Current: 0.7 A • Size Body: 0.413" L x 0.082" Dia (10.50mm x 2.10mm) • Special Feature: Miniature, High Voltage
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Switch |
| Product Sub Category | Reed Switch |
| Series | KSK-1A35/1 Series |
| Catalog Part Number | KSK-1A35/1-2530 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Contact Configuration | SPST-NO |
| Operate Range | 25 ~ 30 AT |
| Contact Rating | 10 W |
| Switching Voltage | 1000 V |
| Switching Current | 0.7 A |
| Overall Length (mm) | 1.358" (34.5mm) |

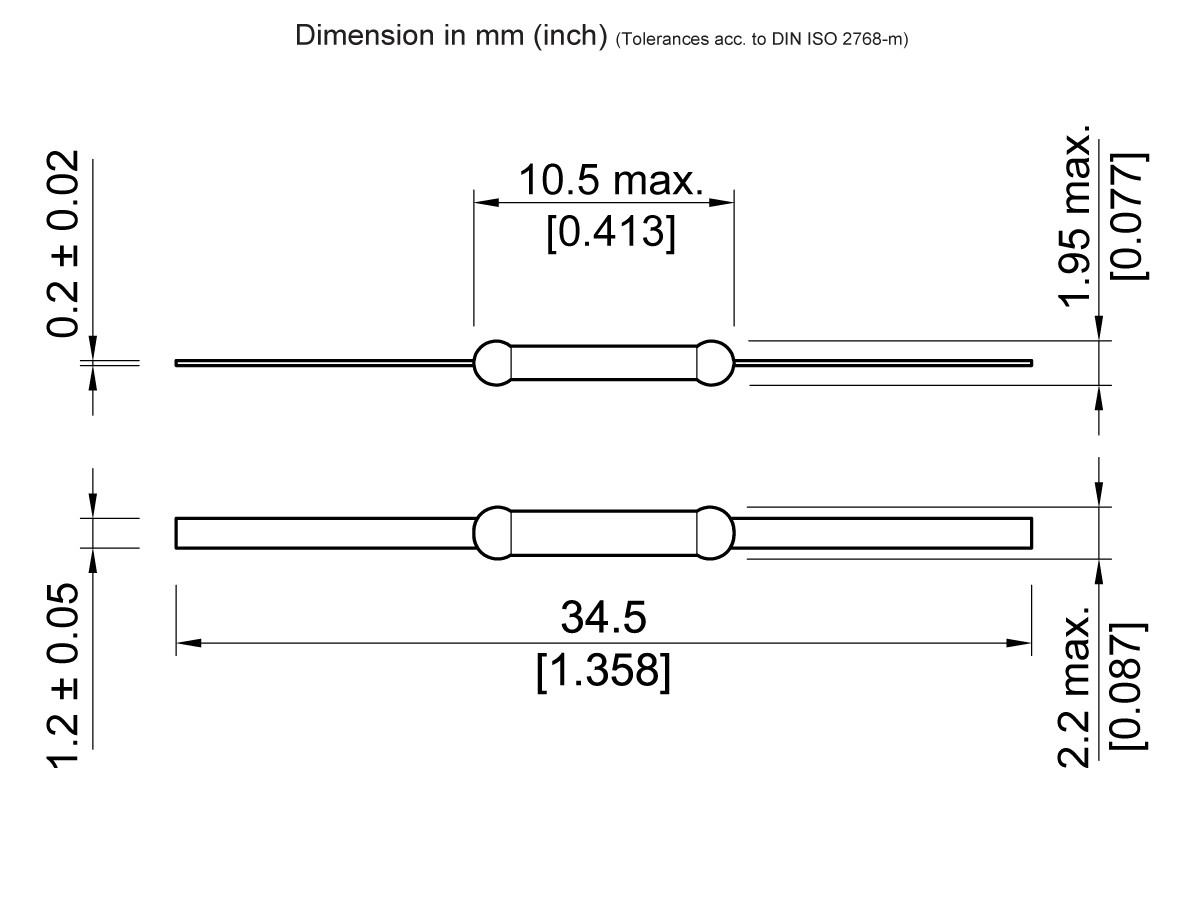

| Size Body | 0.413" L x 0.082" Dia (10.50mm x 2.10mm) |
| Special Feature | Miniature, High Voltage |
Series Features
KSK-1A35/1 Series Reed Switch
Series DescriptionThe KSK-1A35/1 Series is a miniature, high-voltage reed switch designed for precision switching in compact and demanding environments. With a glass body length of 10.5 mm and flat lead configuration, it offers SPST-NO (Form A) contact functionality and supports switching voltages up to 1,000 VDC.
Its hermetically sealed construction ensures long-term reliability, while its optimized sensitivity range makes it suitable for a wide variety of industrial and test applications. The flat leads provide mechanical stability and ease of integration into automated assembly processes.
- Miniature form factor ideal for space-constrained designs
- Flat lead design enhances mounting stability and simplifies PCB integration
- Hermetically sealed contacts for protection against environmental contaminants
- No external power required for actuation, supporting low-power systems
- High-voltage capability for demanding switching applications
- Fast and reliable switching for precision control in real-time systems
High-voltage switching in industrial equipment
Test and measurement systems (ATE)
Relay and remote control circuits
Lid and cover detection in appliances
Automotive and aerospace sensors
Medical devices requiring non-contact actuation
