Product Description

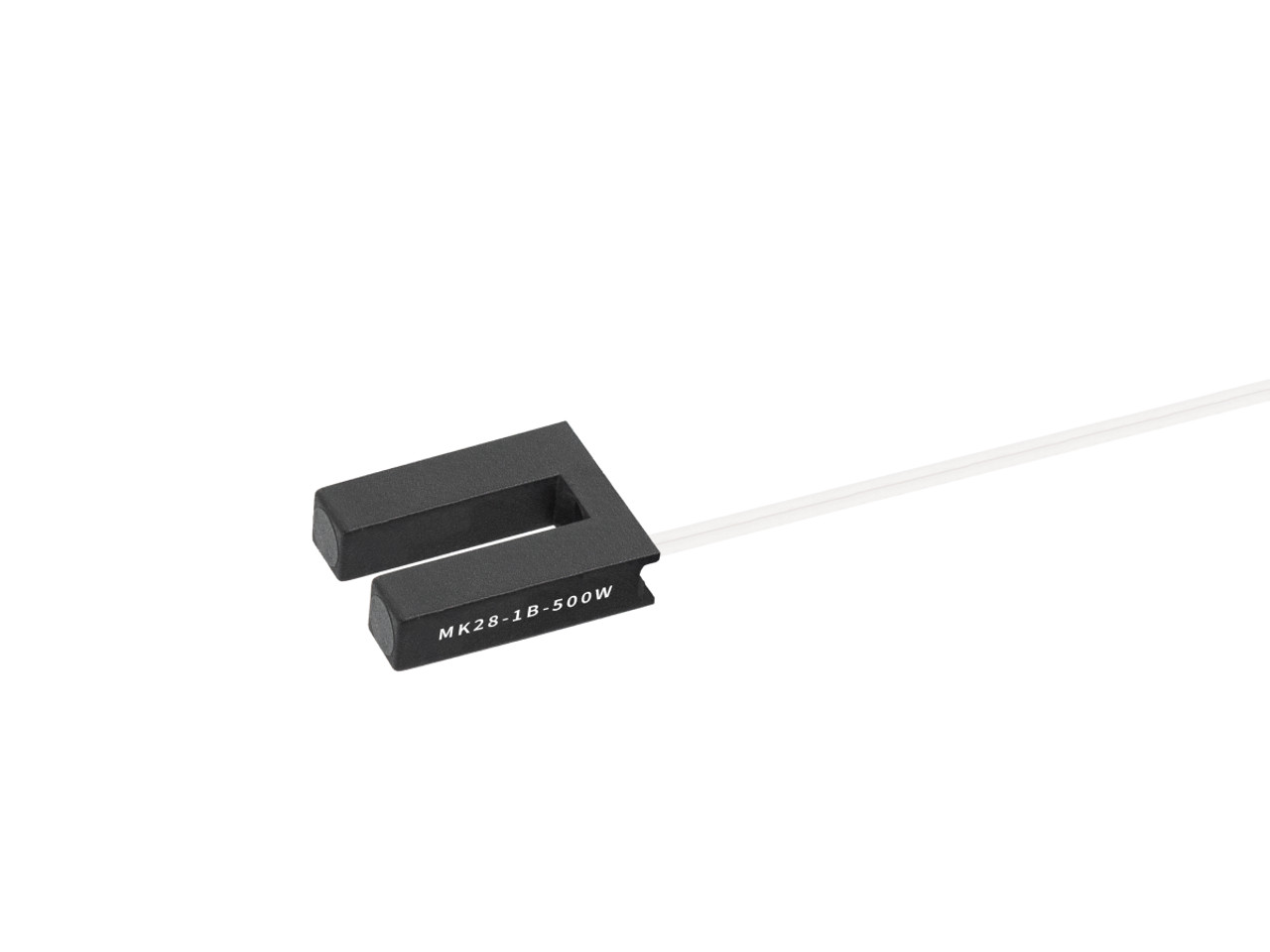

Standex Electronics MK28 Series Reed Sensor; Screw Flange; SPST-NC; 15 ~ 20 AT; 1.25 A; Wire Leads
Reed Sensor • Mounting Style: Screw Flange • Contact Configuration: SPST-NC • Operate Range: 15 ~ 20 AT • Contact Rating: 10 W • Switching Current: 1.25 A • Termination: Wire Leads
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK28 Series |
| Catalog Part Number | MK28-1B-500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Screw Flange |
| Contact Configuration | SPST-NC |
| Operate Range | 15 ~ 20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 200 V |
| Switching Current | 1.25 A |
| Size Body | 1.000" L x 0.750" W x 0.250" H (25.40mm x 19.05mm x 6.35mm) |
| Termination | Wire Leads |
| Packaging | Bulk |
Series Features
MK28 Series Reed Sensor
Series DescriptionThe MK28 Series is a magnetically conductive vane-operated reed sensor housed in a rectangular flange-mount body, designed for reliable magnetic sensing in automotive, industrial automation, and robotics applications. Its rugged construction and flexible cable configurations make it ideal for position, motion, and proximity detection in demanding environments.
The MK28 Series delivers robust magnetic sensing with vane-actuated precision, making it a trusted solution for OEMs and engineers working in harsh or mechanically active environments.
- Vane-operated sensing for precise actuation
- Screw flange mount for secure installation
- Rectangular housing with round wire leads
- UL-approved and IP-rated for environmental durability
- Customizable switch type, cable length, and termination
Automotive systems
Industrial automation equipment
Robotics and motion control
Water meter cursor detection
Locking systems
Position and proximity sensing
