Product Description
Standex Electronics MK26 Series Reed Sensor; Screw Flange; SPST-NO; 25-30 AT; 1.0 A; Wire Leads; 500 mm
Reed Sensor • Reed Sensor • Mounting Style: Screw Flange • Contact Configuration: SPST-NO • Operate Range: 25-30 AT • Switching Current: 1.0 A • Termination: Wire Leads • Cable Length: 500 mm
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK26 Series |
| Catalog Part Number | MK26-1A85E-500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Screw Flange |
| Contact Configuration | SPST-NO |
| Operate Range | 25-30 AT |
| Contact Rating | 100 W |
| Switching Voltage | 1000 V |
| Switching Current | 1.0 A |

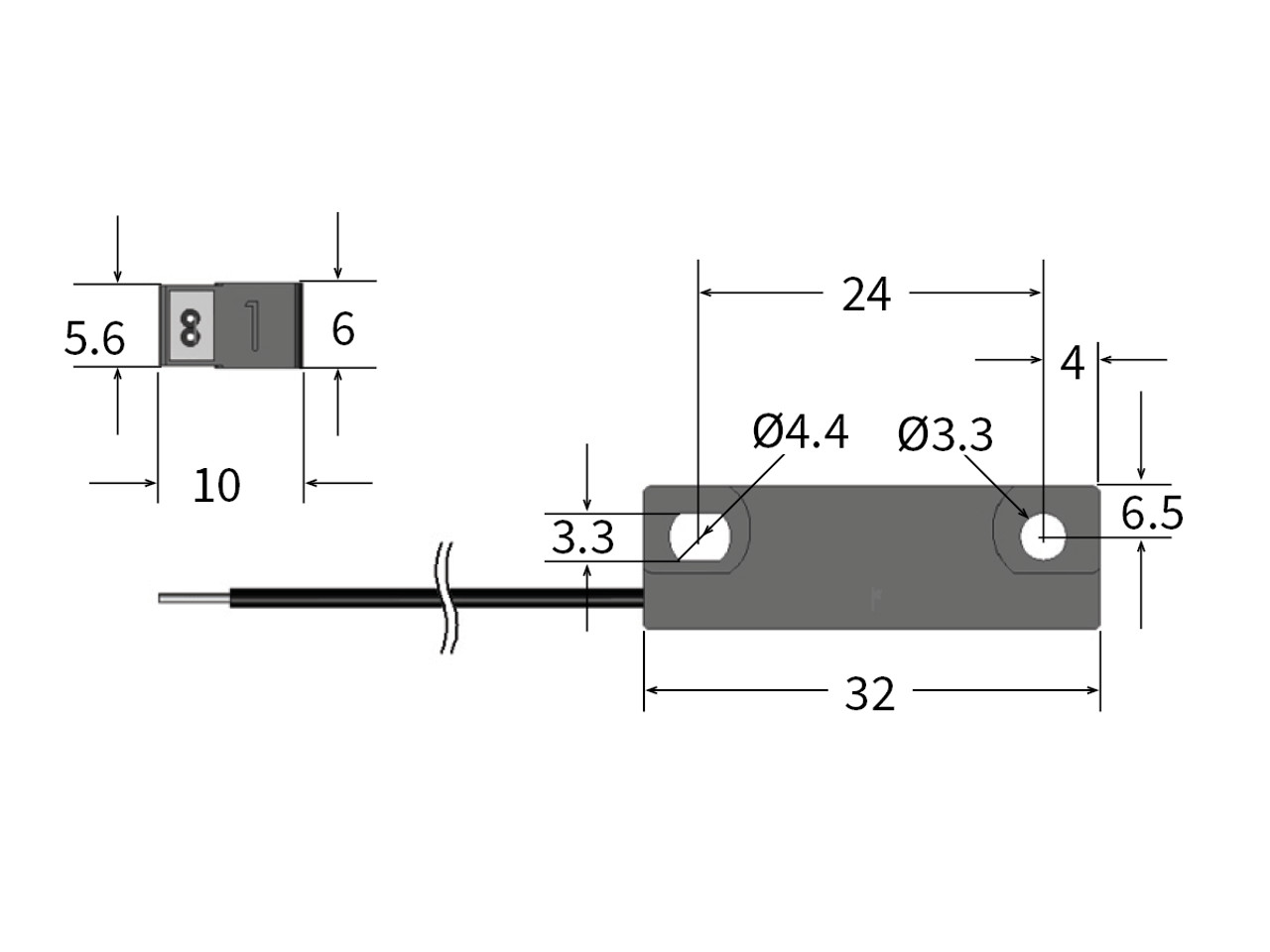

| Size Body | 1.126" L x 0.394" W x 0.236" H (32.00mm x 10.00mm x 6.00mm) |
| Termination | Wire Leads |
| Packaging | Bulk |
| Cable Length | 500 mm |
| Termination | Stripped &Ttinned |
Series Features
MK26 Series Reed Sensor
Series DescriptionThe MK26 Series is a rugged, flange-mount reed sensor designed for high-voltage switching applications in industrial, security, and appliance environments. Housed in a rectangular body with screw-fastened mounting and cable terminals, it offers reliable magnetic sensing for position, proximity, motion, level, and end-limit detection.
The MK26 Series delivers compact, high-power magnetic sensing in a durable flange-mount design, making it a trusted solution for OEMs and engineers working in demanding electrical and mechanical environments.
- High-voltage capability up to 1000VDC
- Screw flange mount for secure installation
- Rectangular housing with round wire leads
- Customizable switch type, cable length, and termination
- UL-approved and IP67-rated for harsh environments
High-voltage switching
Hydraulic actuator position indication
Industrial automation
Security systems
White goods and appliances
Liquid level sensing (with magnetic floats)
