Product Description

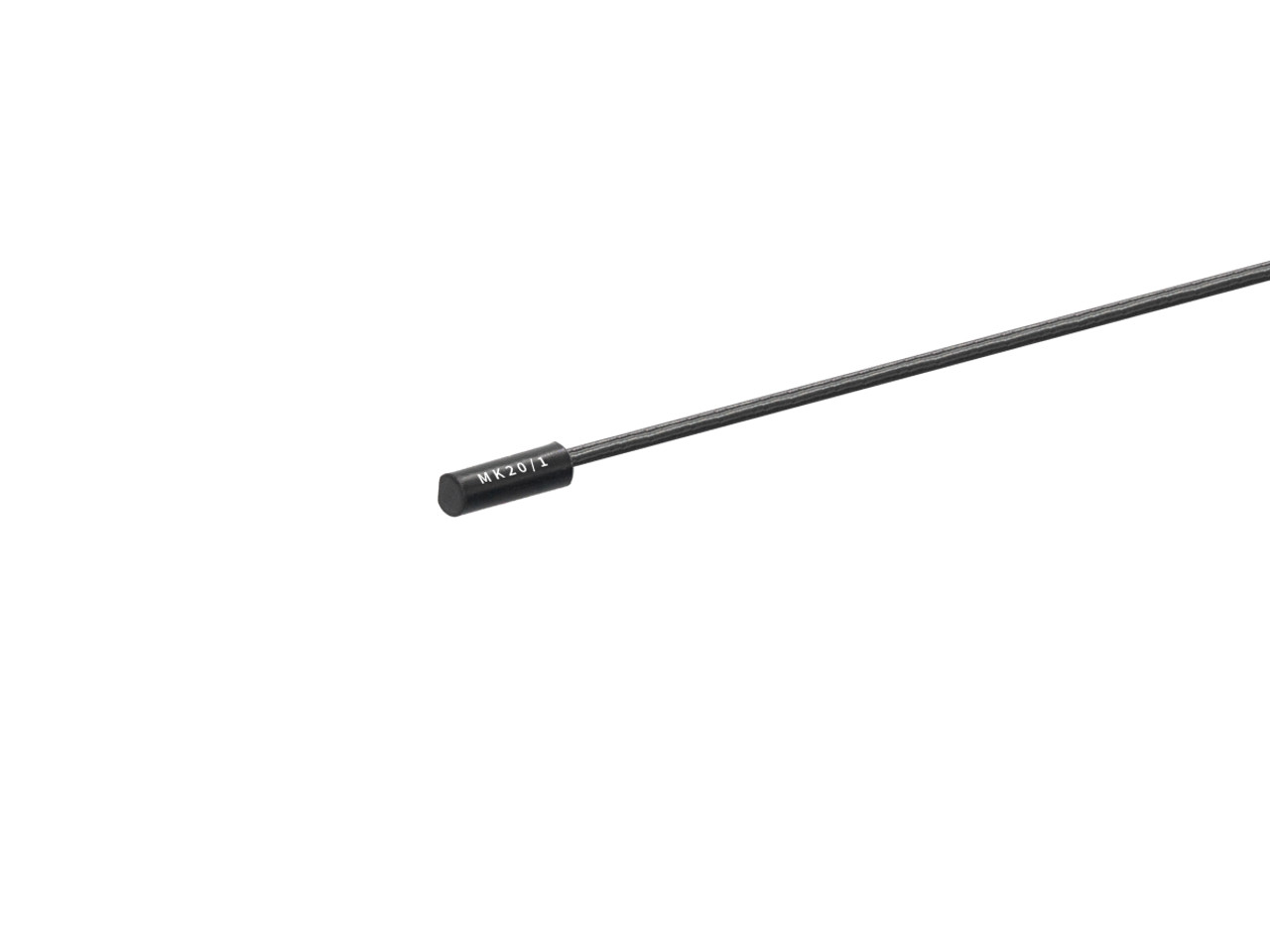

Standex Electronics MK20/1 Series Reed Sensor; Cylindrical; SPST-NO; 15-20 AT; 0.5 A; Wire Leads; 100 mm
Reed Sensor • Reed Sensor • Mounting Style: Cylindrical • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 0.5 A • Termination: Wire Leads • Cable Length: 100 mm
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK20/1 Series |
| Catalog Part Number | MK20/1-C-100W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Cylindrical |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 30 V |
| Switching Current | 0.5 A |
| Size Body | 0.394" L x 0.118" Dia. (10.00mm x 3.00mm) |
| Termination | Wire Leads |
| Packaging | Bulk |
| Cable Length | 100 mm |
| Termination | Stripped &Ttinned |
Series Features
MK20/1 Series Reed Sensor
Series DescriptionThe MK20/1 Series is a miniature cylindrical reed sensor designed for panel mounting in compact and space-constrained applications. With a 3.0mm diameter housing, it offers reliable magnetic sensing for industrial, security, and appliance environments. Its flexible cable configurations and magnetic sensitivity options make it ideal for position, level, and end-limit detection.
The MK20/1 Series delivers precise sensing performance in a miniature form factor, making it a trusted solution for OEMs and engineers designing in space-limited or low-voltage environments.
- Miniature 3.0mm cylindrical housing for tight spaces
- Panel-mount design with cable terminals
- Multiple cable lengths, terminations, and sensitivities available
- UL-approved configurations
- Compact footprint for discreet integration
Door and window monitoring
Water level detection (with magnetic floats)
Position and proximity sensing
White goods and household appliances
Security systems
Compact industrial devices
