Product Description
Standex Electronics MK18 Series Reed Sensor; Cylindrical; SPST-NO; 15-20 AT; 0.5 A; Wire Leads; 1500 mm
Reed Sensor • Reed Sensor • Mounting Style: Cylindrical • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 0.5 A • Termination: Wire Leads • Cable Length: 1500 mm
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK18 Series |
| Catalog Part Number | MK18-C-1500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Cylindrical |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 200 V |
| Switching Current | 0.5 A |

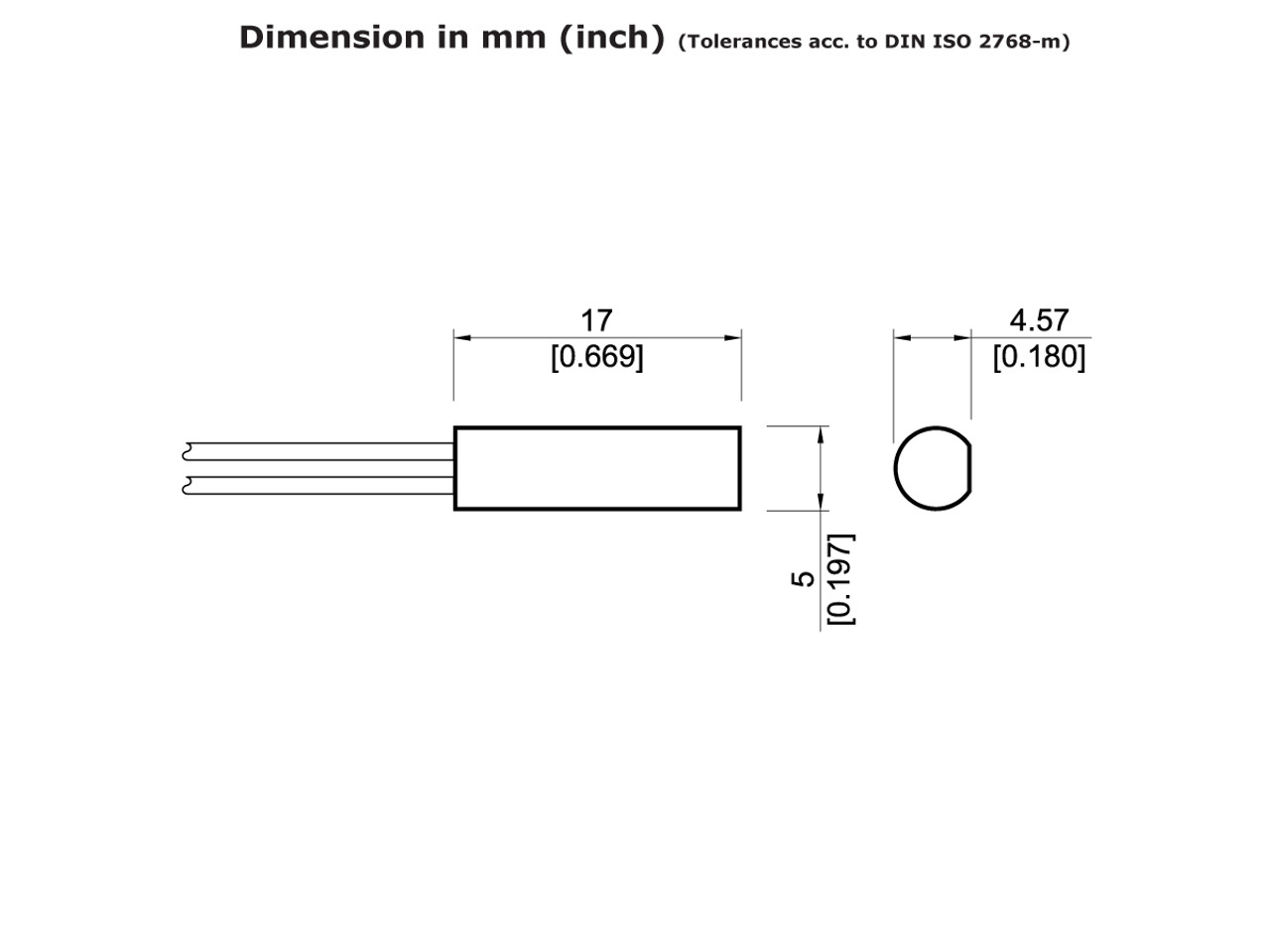

| Size Body | 1.004" L x 0.197" Dia. (17.00mm x 5.00mm) |
| Termination | Wire Leads |
| Packaging | Bulk |
| Cable Length | 1500 mm |
| Termination | Stripped &Ttinned |
Series Features
MK18 Series Reed Sensor
Series DescriptionThe MK18 Series is a panel-mount reed sensor housed in a 5.0mm diameter cylindrical body, designed for extended cable lengths and flexible installation in industrial, appliance, and security applications. With a wide range of magnetic sensitivities and cable configurations, it’s ideal for position, level, and end-limit sensing, especially where longer reach is required.
The MK18 Series offers extended sensing reach and robust performance in a compact, panel-mount design. It’s a reliable solution for OEMs and engineers working in space-constrained or long-distance sensing environments.
- Cylindrical 5.0mm housing for panel mounting
- Extended cable lengths up to 1500mm+
- Multiple magnetic sensitivity ranges available
- UL-approved configurations
- Customizable switch type, cable length, and termination
Door and window monitoring
Water level detection (with magnetic floats)
Position and proximity sensing
White goods and household appliances
Industrial automation
Security systems
