To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Standex Electronics / Meder |
| Manufacturer Product Number | MK18-B-1500W |

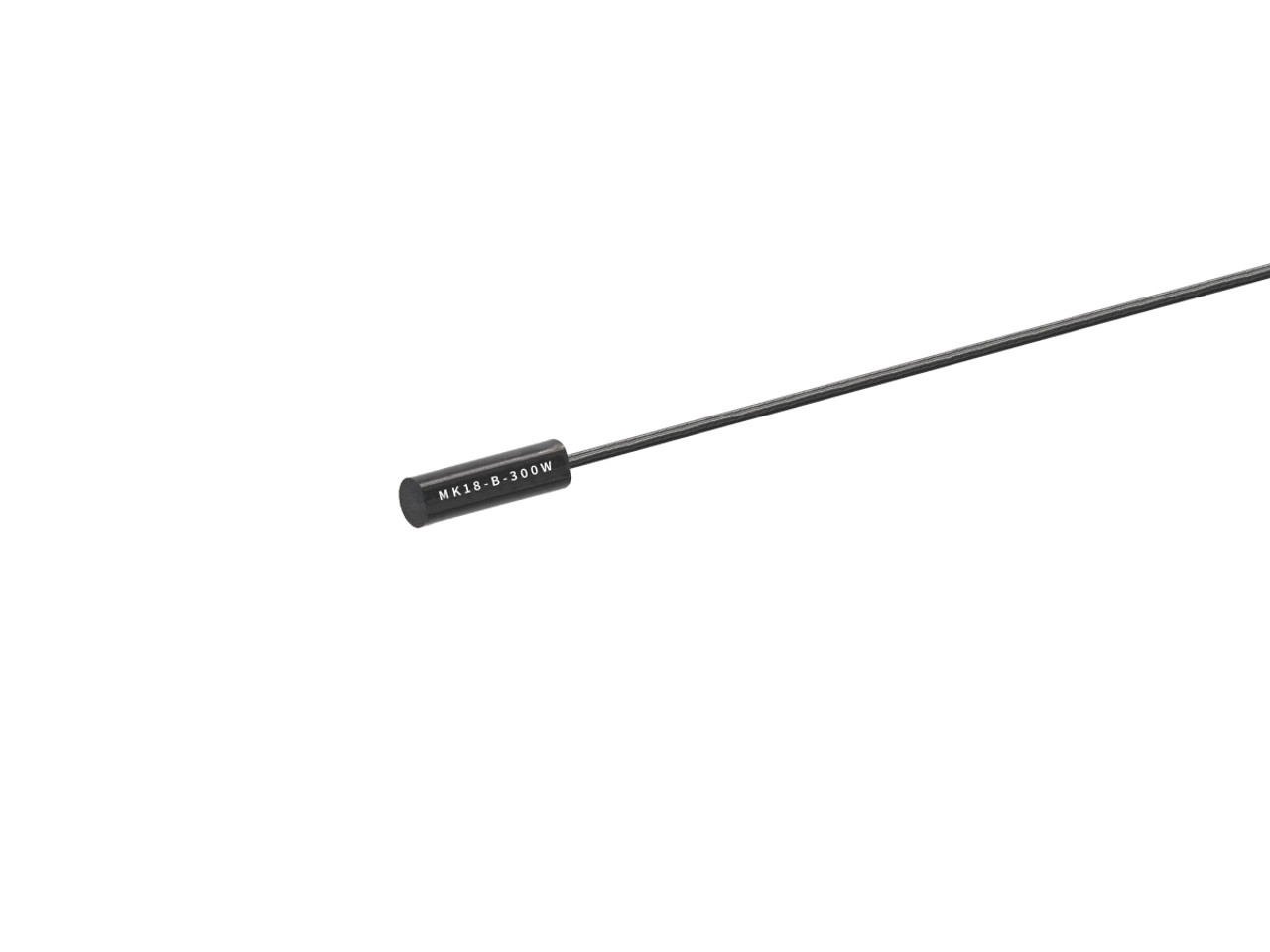

| Description | Reed Sensor; Cylindrical; SPST-NO; 10-15 AT; 0.5 A; Wire Leads; 1500 mm |
| Datasheet | Download Datasheet |
Reed Sensor • Reed Sensor • Mounting Style: Cylindrical • Contact Configuration: SPST-NO • Operate Range: 10-15 AT • Switching Current: 0.5 A • Termination: Wire Leads • Cable Length: 1500 mm
| Category | |
| Manufacturer | Standex Electronics / Meder |
| Mounting Style | Cylindrical |
| Contact Configuration | SPST-NO |
| Operate Range | 10-15 AT |
| Contact Rating | 10 W |
| Switching Voltage | 200 V |
| Switching Current | 0.5 A |

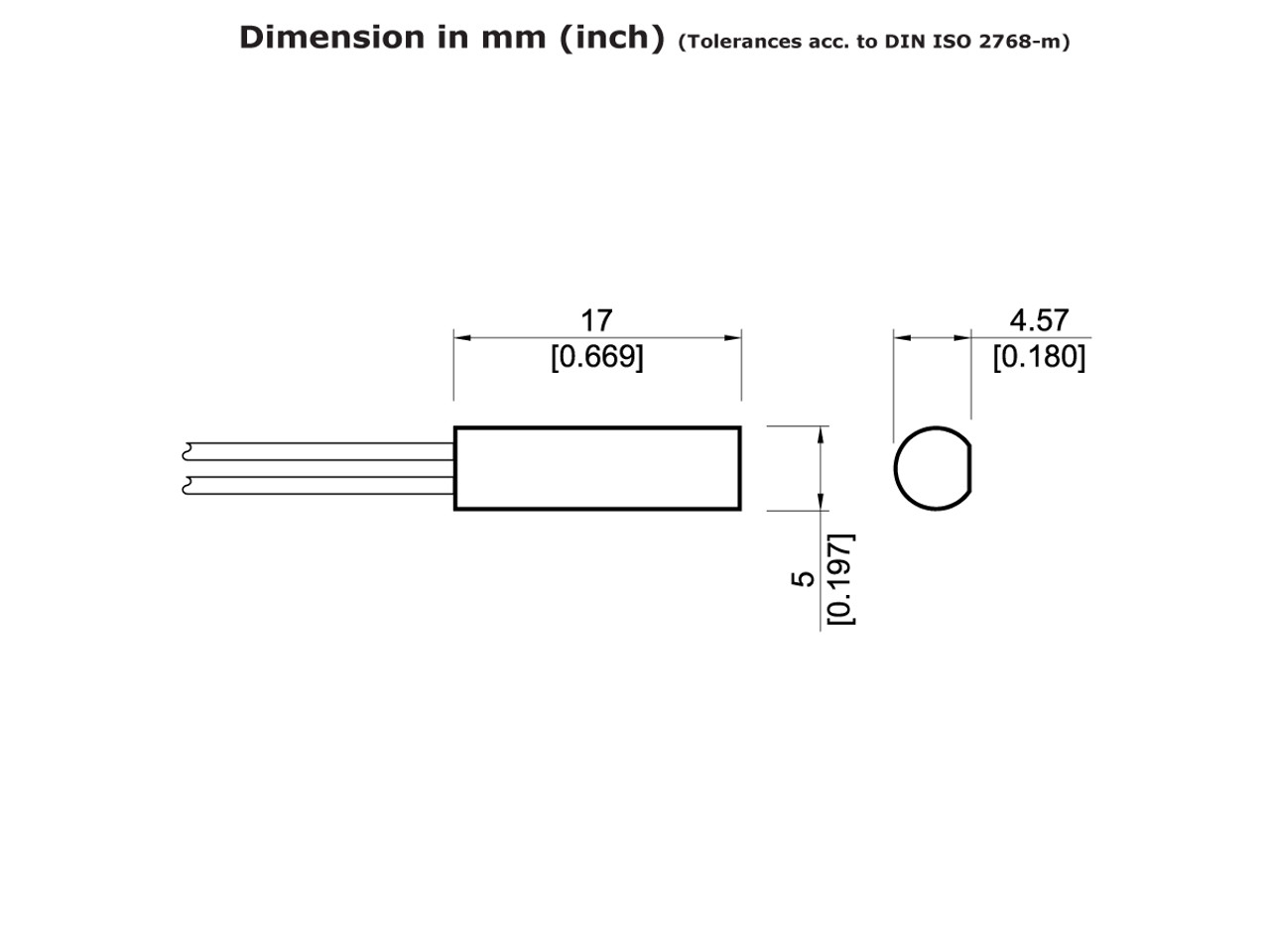

| Size Body | 1.004" L x 0.197" Dia. (17.00mm x 5.00mm) |
| Termination | Wire Leads |
| Packaging | Bulk |
| Cable Length | 1500 mm |
| Termination | Stripped &Ttinned |
