Product Description
Standex Electronics MK17 Series Reed Sensor; SMD - Molded Body; SPST-NO; 15-20 AT; 0.5 A; Axial
Reed Sensor • Reed Sensor • Mounting Style: SMD - Molded Body • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 0.5 A • Termination: Axial
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK17 Series |
| Catalog Part Number | MK17-C-1 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | SMD - Molded Body |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 100 V |
| Switching Current | 0.5 A |

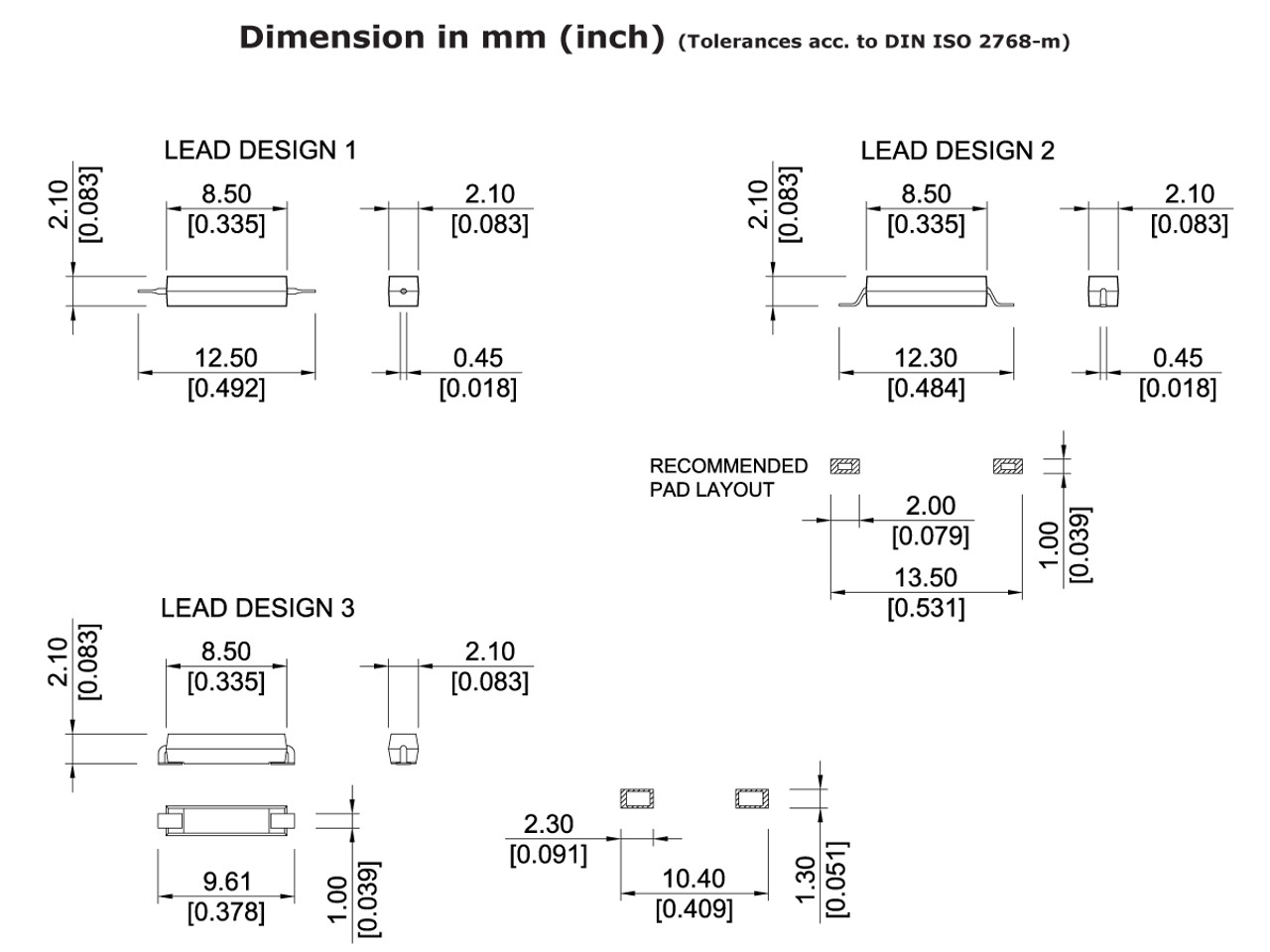

| Size Body | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) |
| Termination | Axial |
| Packaging | Tape & Reel |
Series Features

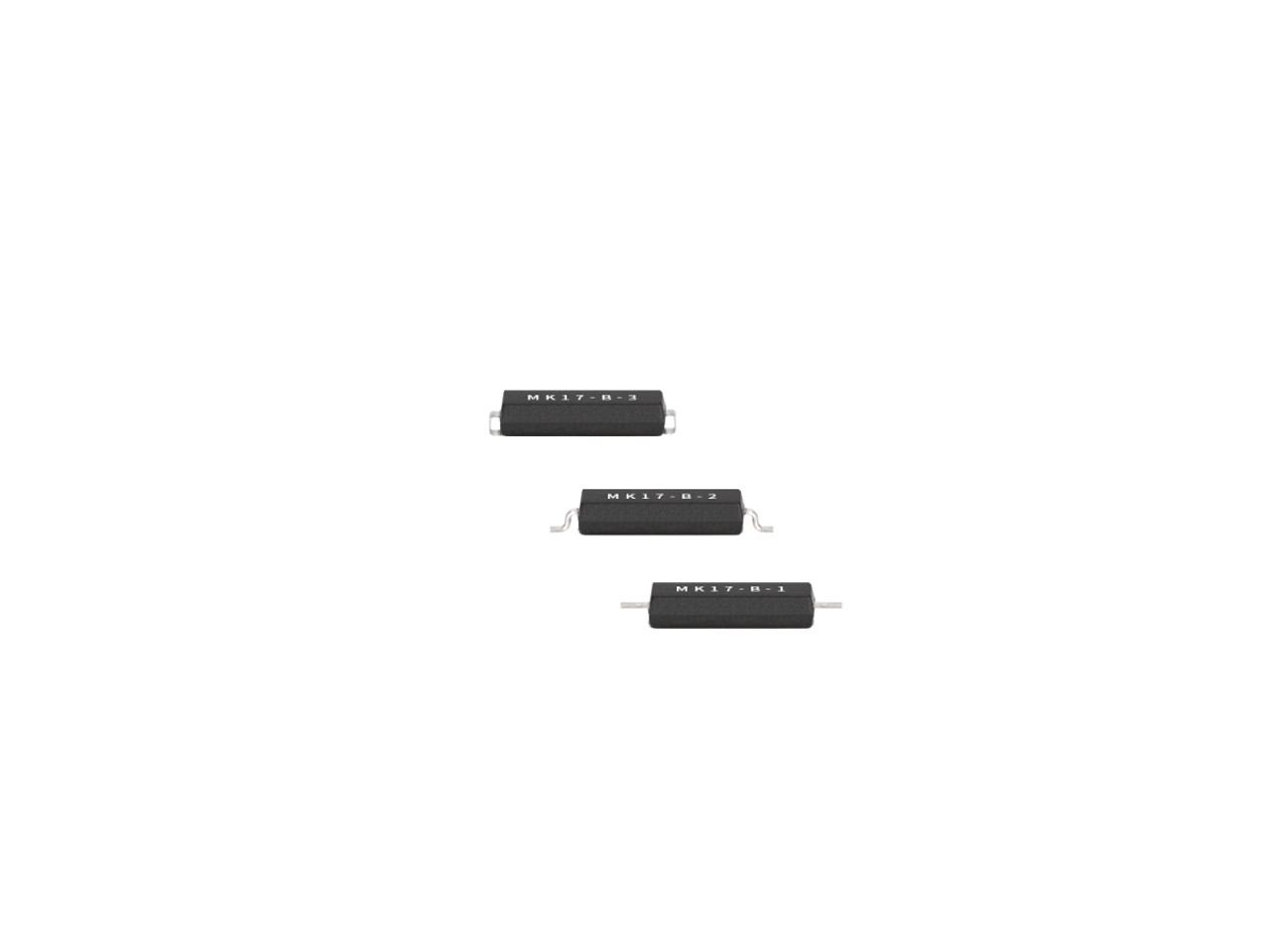

MK17 Series Surface Mount Reed Switch
Series DescriptionThe MK17 Series is an ultraminiature surface-mount (SMD) reed sensor designed for on/off control, position, motion, and proximity detection in compact electronic assemblies. Supplied in tape and reel packaging per IEC 286/Part 3, it’s ideal for high-volume automated production environments such as medical devices, telecommunications, security systems, and white goods.
The MK17 Series delivers precise magnetic sensing in an ultracompact SMD format, making it a trusted solution for OEMs and engineers designing in miniature, automated, or low-power environments.
- Ultraminiature molded body for space-constrained designs
- Surface-mount (SMD) configuration with axial, gull-wing, or J-lead options
- Tape & reel packaging for automated assembly
- UL-approved configurations
- Excellent for low-power switching applications
Portable medical devices
Telecommunications equipment
Security systems
White goods and appliances
Compact industrial electronics
Position and proximity sensing
