Product Description
Standex Electronics MK15 Series Reed Sensor; SMD - Molded Body; SPST-NO; 15-20 AT; 0.5 A; Axial
Reed Sensor • Reed Sensor • Mounting Style: SMD - Molded Body • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 0.5 A • Termination: Axial
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK15 Series |
| Catalog Part Number | MK15-C-1 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | SMD - Molded Body |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 180 V |
| Switching Current | 0.5 A |

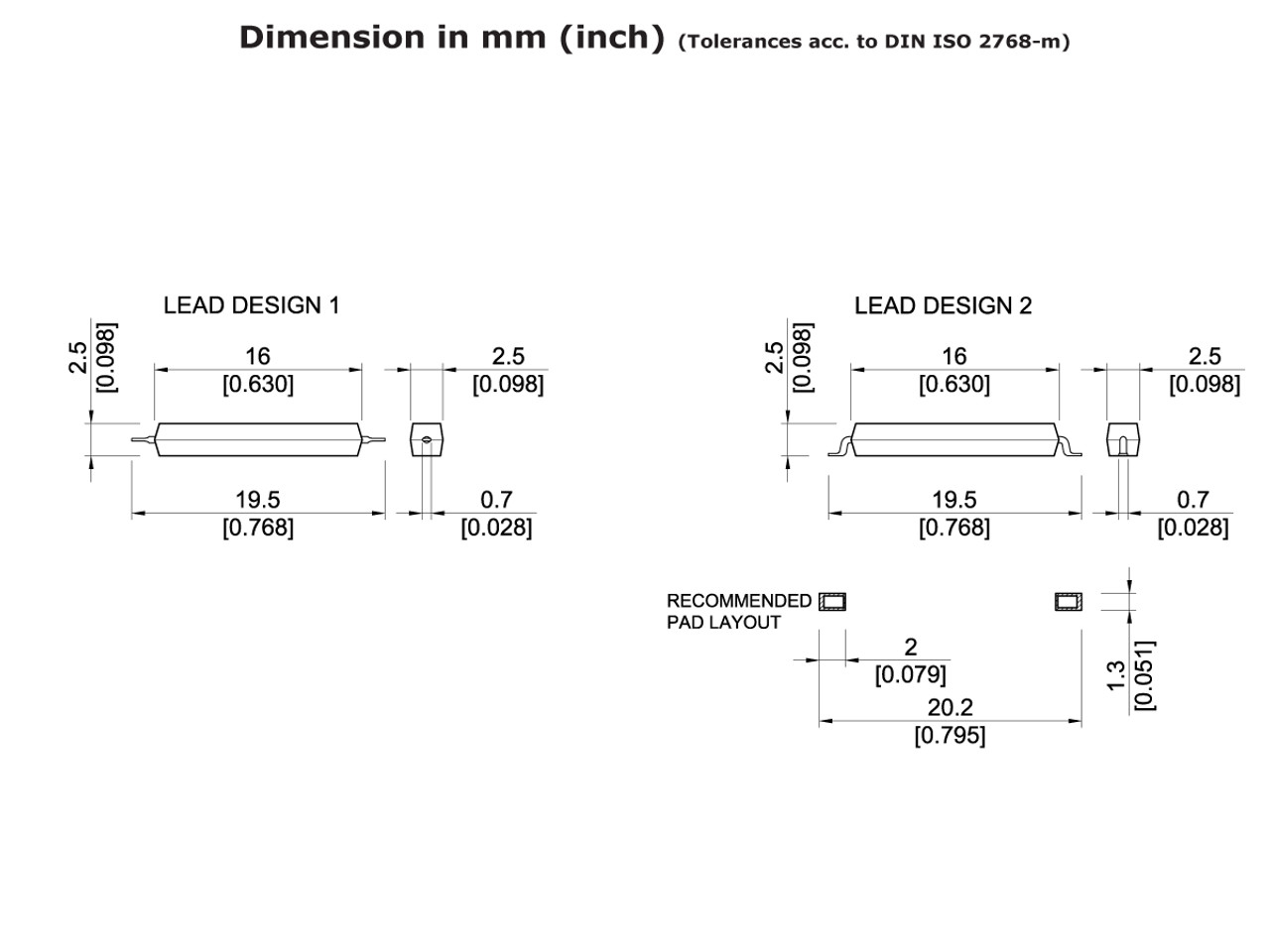

| Size Body | 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm) |
| Termination | Axial |
| Packaging | Tape & Reel |
Series Features
MK15 Series Surface Mount Reed Switch
Series DescriptionThe MK15 Series is a miniature surface-mount (SMD) reed sensor designed for on/off control, position, motion, and proximity detection in compact electronic assemblies. Available in axial, gull-wing, and long gull-wing lead styles, it supports automated production with tape & reel packaging per IEC 286/Part 3. Ideal for medical, telecom, security, and white goods applications
The MK15 Series delivers precise magnetic sensing in a versatile SMD format, making it a trusted solution for OEMs and engineers designing in automated, space-limited, or low-power environments.
- Miniature molded body for space-constrained designs
- Surface-mount configuration with multiple lead styles
- Tape & reel packaging for automated assembly
- UL-approved configurations
- Excellent for low-power switching applications
Portable medical devices
Telecommunications equipment
Security systems
White goods and appliances
Compact industrial electronics
Position and proximity sensing
