Product Description
Standex Electronics MK13 Series Reed Sensor; Screw Flange; SPST-NO; 15-20 AT; 0.5 A; Cable, Flat; 1000 mm
Reed Sensor • Reed Sensor • Mounting Style: Screw Flange • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 0.5 A • Termination: Cable, Flat
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK13 Series |
| Catalog Part Number | MK13-1A66C-1000X |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Screw Flange |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 180 V |
| Switching Current | 0.5 A |

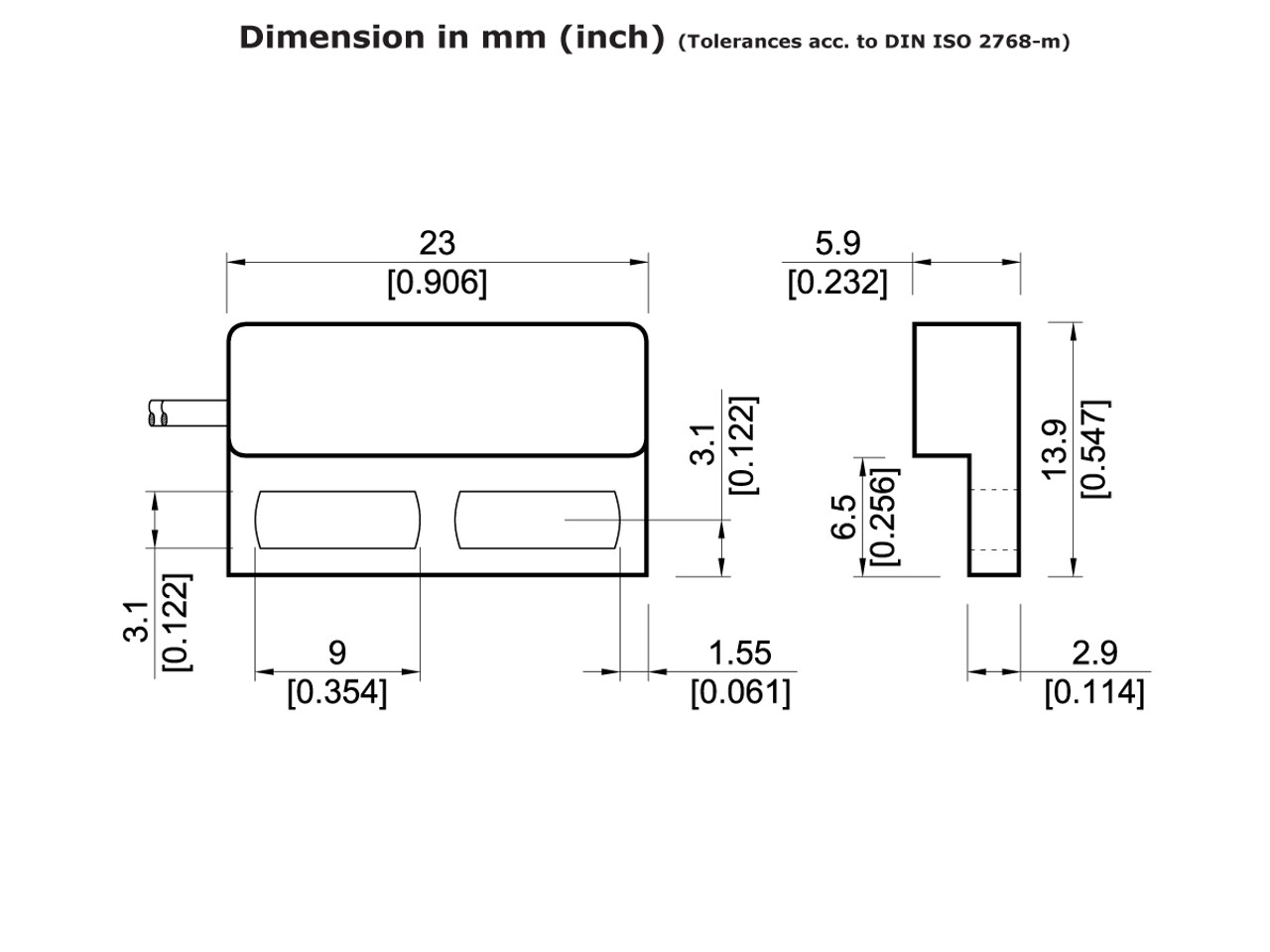

| Size Body | 0.910" L x 0.550" W x 0.230" H (23.00mm x 13.90mm x 5.90mm) |
| Termination | Cable, Flat |
| Packaging | Bulk |
| Cable Length | 1000 mm |
| Termination | - |
Series Features
MK13 Series Reed Sensor
Series DescriptionThe MK13 Series is a compact, rectangular reed sensor designed for screw-fastened flange mounting, offering reliable magnetic sensing in a wide range of applications. Its flat housing and cable terminal design make it ideal for OEMs seeking a cost-effective solution for position, proximity, motion, level, and end-limit detection.
The MK13 Series offers best-value performance in a compact, flange-mount design. It’s a trusted solution for engineers and designers looking for flexible, reliable magnetic sensing across a broad range of industries.
- Screw flange mount for secure installation
- Rectangular housing with flat or round cable terminals
- Customizable switch type, cable length, and termination
- UL-approved configurations available
- Compact footprint for space-constrained designs
Industrial automation
Security systems
White goods and appliances
Hydraulic and pneumatic actuators
Door and flap control
Position and motion sensing
