Product Description

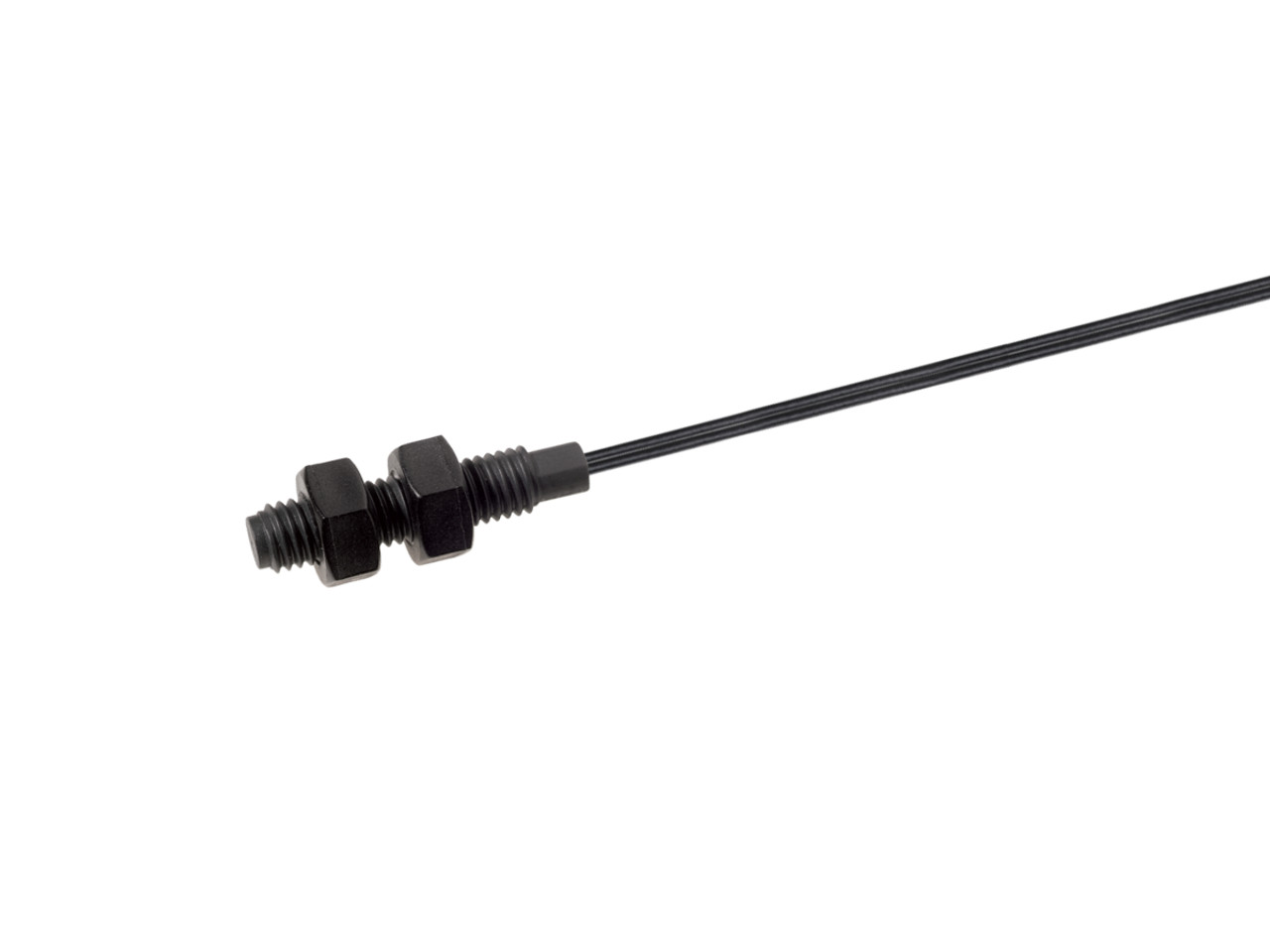

Standex Electronics MK11 Plastic Series Reed Sensor; Thread Cylinder; SPST-NO; 15-20 AT; 1.0 A; Wire Leads; Plastic; 500 mm
Reed Sensor • Reed Sensor • Mounting Style: Threaded Cylinder - Plastic • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 1.0 A • Termination: Wire Leads
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK11 Plastic Series |
| Catalog Part Number | MK11/M8-1A85C-500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Threaded Cylinder - Plastic |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 100 W |
| Switching Voltage | 1000 V |
| Switching Current | 1.0 A |

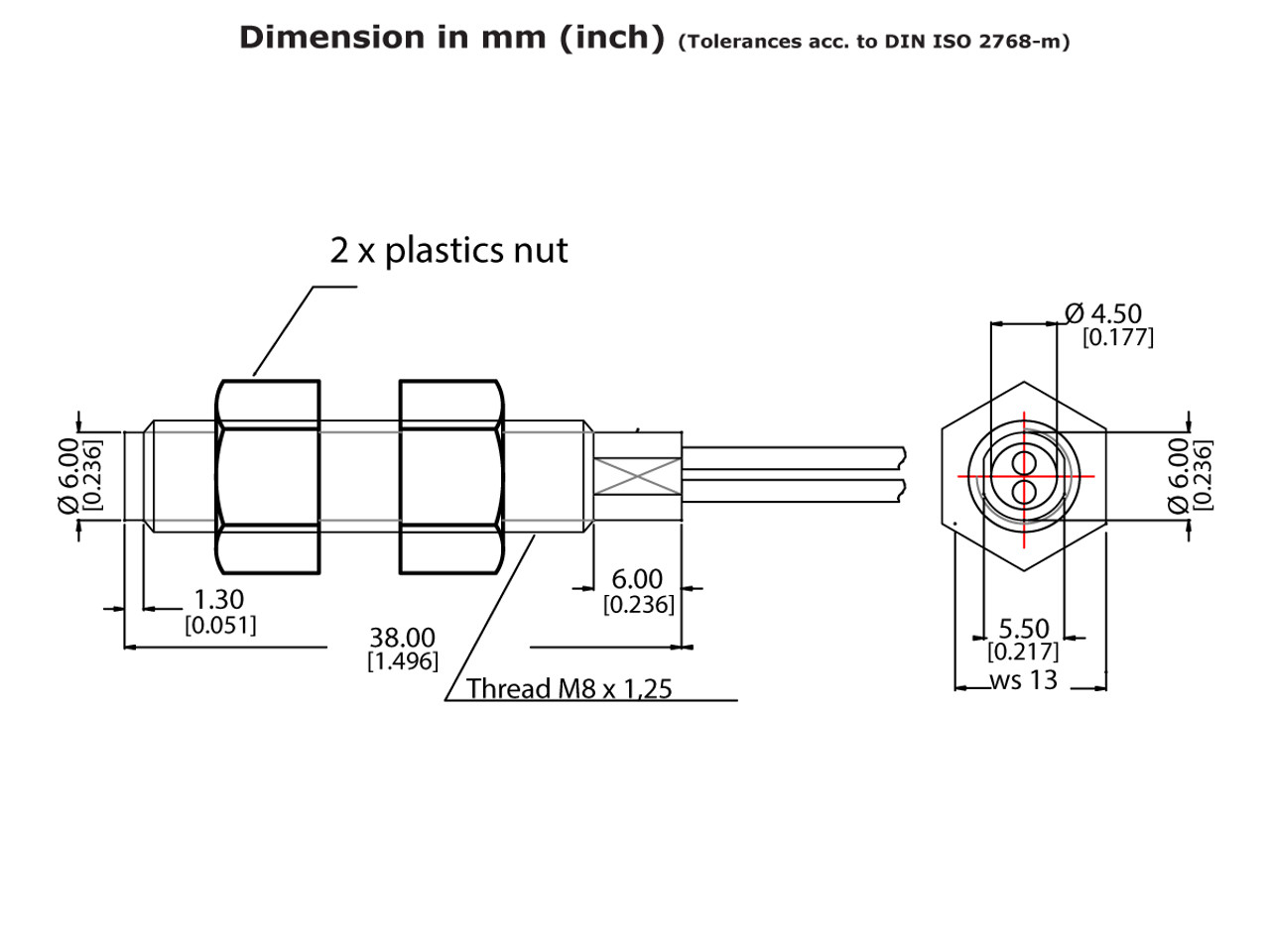

| Size Body | 0.984" L x M8 x 0.049" Thread (25.00mm x M8 x 1.25mm) |
| Termination | Wire Leads |
| Packaging | Bulk |
| Cable Length | 500 mm |
| Termination | Stripped &Ttinned |
Series Features
MK11 Plastic Series Reed Sensor
Series DescriptionThe MK11 Plastic Series is a versatile, cylindrically housed reed sensor designed for M8 adjustable thread mounting, offering flexible installation and precise sensing alignment. Built for high-voltage and industrial environments, it features a rugged plastic housing with cable terminals and supports a wide range of sensing applications.
The MK11 Plastic Series combines high-voltage capability with installation flexibility, making it a reliable choice for OEMs and engineers working in demanding environments.
- M8 thread mount for adjustable positioning
- Plastic cylindrical housing with cable terminals
- Optional high-voltage switch configurations
- UL-approved and IP67-rated for durability
- Custom cable types, lengths, and terminations available
High-voltage switching
Industrial automation
Security systems
White goods and appliances
Position, level, and end-limit sensing
