Product Description

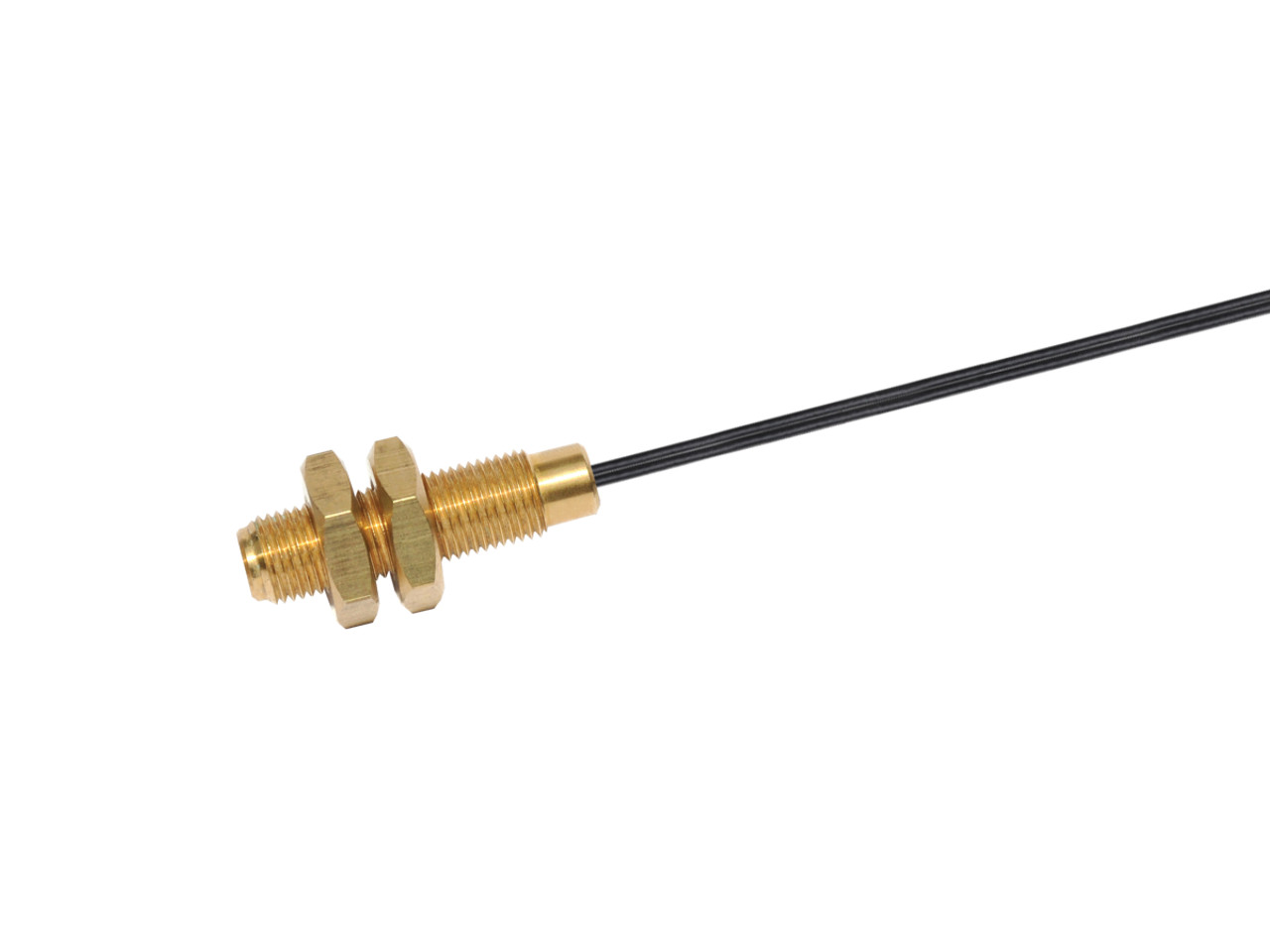

Standex Electronics MK11/B Series Reed Sensor; Thread Cylinder; SPST-NO; 10-15 AT; 0.5 A; Wire Leads; Brass; 500 mm
Reed Sensor • Reed Sensor • Mounting Style: Threaded Cylinder - Brass • Contact Configuration: SPST-NO • Operate Range: 10-15 AT • Switching Current: 0.5 A • Termination: Wire Leads
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK11/B Series |
| Catalog Part Number | MK11/B6-1A66B-500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Threaded Cylinder - Brass |
| Contact Configuration | SPST-NO |
| Operate Range | 10-15 AT |
| Contact Rating | 10 W |
| Switching Voltage | 180 V |
| Switching Current | 0.5 A |

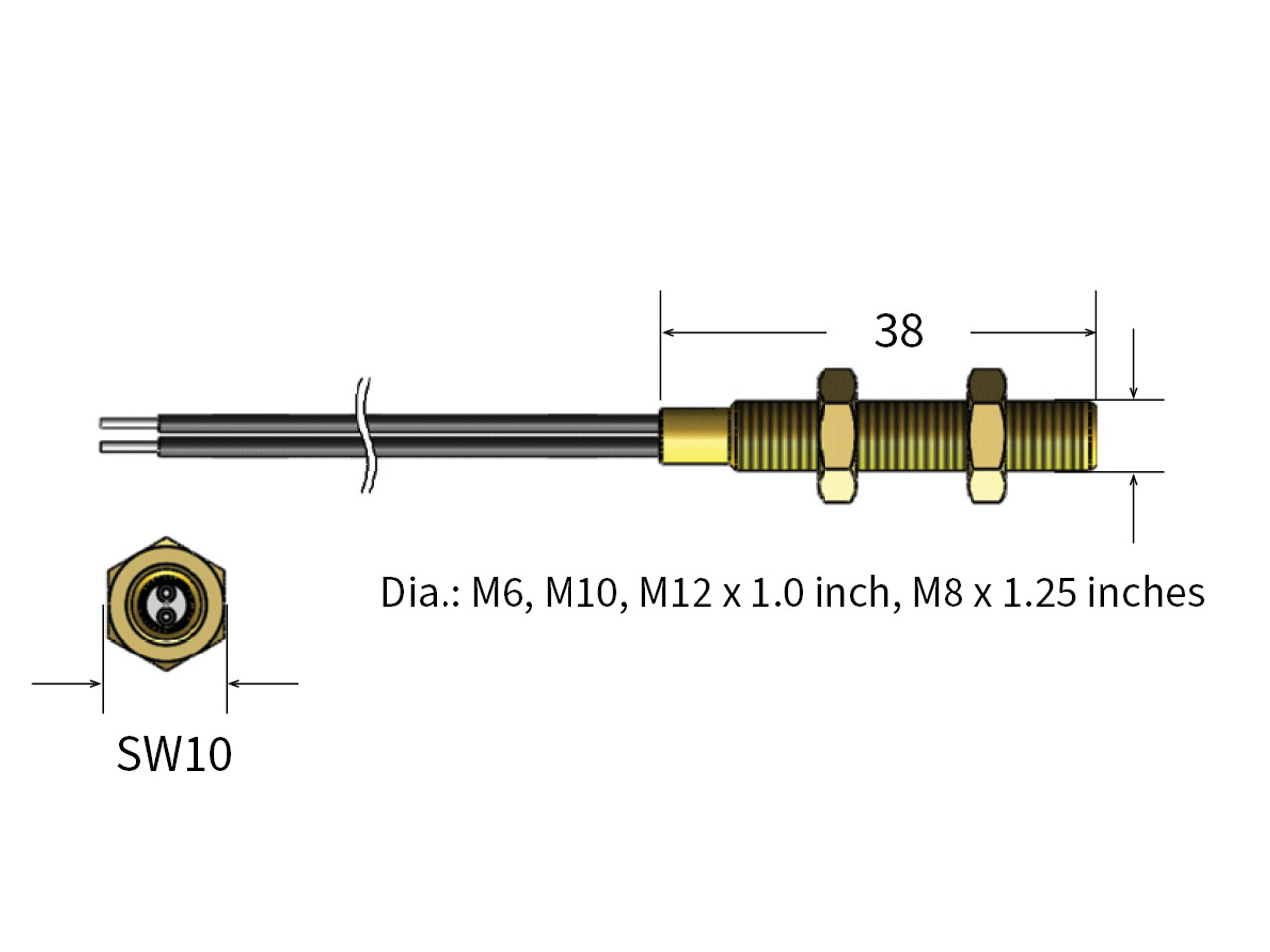

| Size Body | 1.496" L x M6 Thread (38.00mm x M6) |
| Termination | Wire Leads |
| Packaging | Bulk |
| Cable Length | 500 mm |
| Termination | Stripped &Ttinned |
Series Features
MK11 Brass Series Reed Sensor
Series DescriptionThe MK11 Brass Series is a robust, cylindrically housed reed sensor designed for M6, M8, M10, and M12 adjustable thread mounting, offering flexible installation and precise sensing alignment. Its brass housing provides excellent durability and corrosion resistance, making it ideal for high-voltage, industrial, and machine safety applications.
The MK11 Brass Series offers high-voltage performance and mechanical resilience in a compact, thread-mount design. It’s a trusted solution for OEMs and engineers working in demanding industrial and safety-critical environments.
- Brass cylindrical housing with adjustable thread mount
- Available in M6, M8, M10, and M12 thread sizes
- Optional high-voltage switch configurations
- UL-approved and IP67-rated for rugged environments
- Custom cable types, lengths, and terminations available
High-voltage switching
Industrial automation
Machine safety controls
Satellite antennas
Doors and gates
Position, level, and end-limit sensing
