Product Description
Standex Electronics MK11 Stainless Steel Series Reed Sensor; Thread Cylinder; SPST-NO; 15-20 AT; 0.5 A; Cable, Flat; SS; 1500 mm
Reed Sensor • Reed Sensor • Mounting Style: Threaded Cylinder - Stainless • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 0.5 A • Termination: Cable, Flat
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK11 Stainless Steel Series |
| Catalog Part Number | MK11-1A66C-1500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Threaded Cylinder - Stainless |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 180 V |
| Switching Current | 0.5 A |

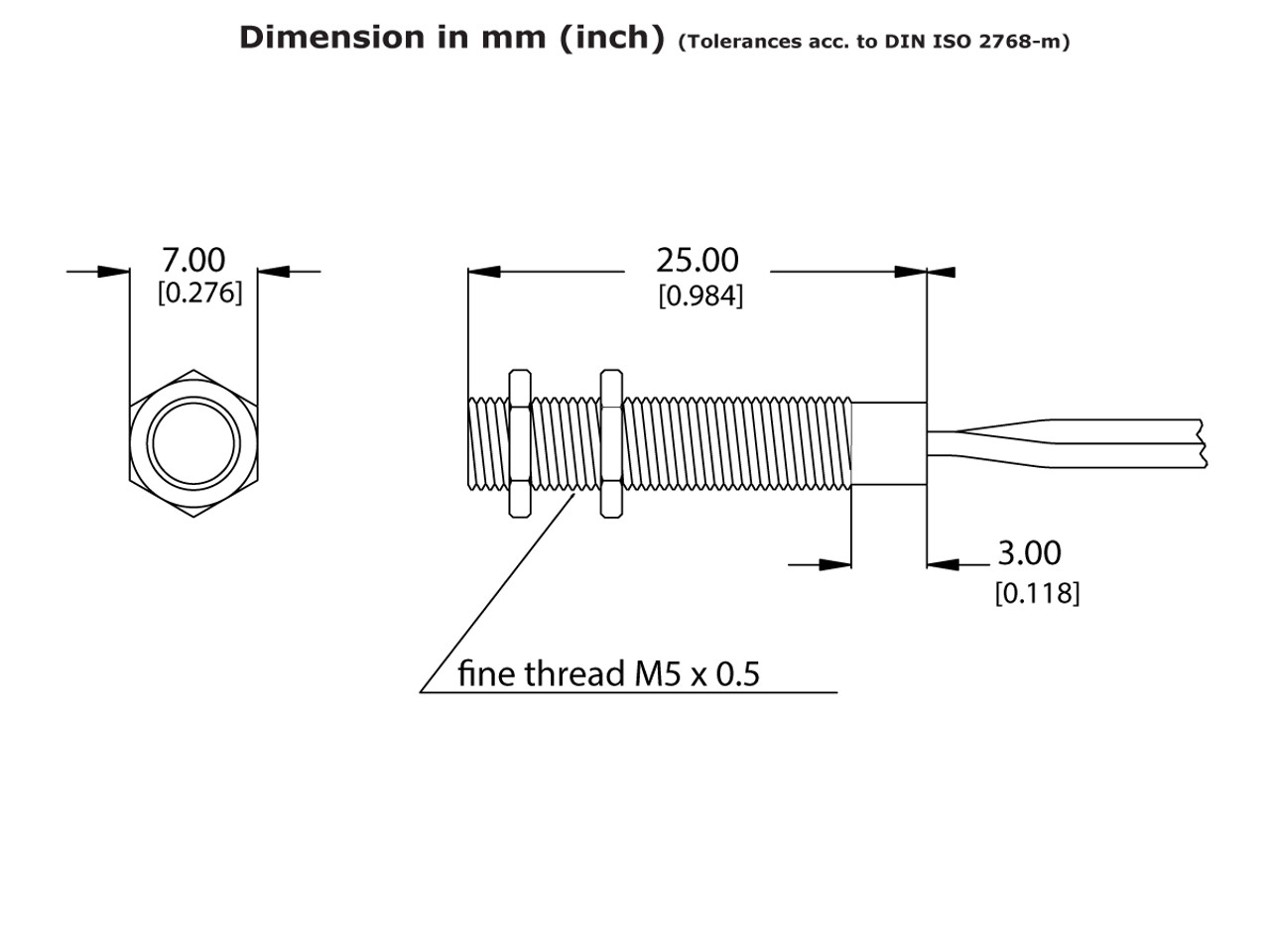

| Size Body | 0.984" L x M5 x 0.020" Thread (25.00mm x M5 x 0.50mm) |
| Termination | Cable, Flat |
| Packaging | Bulk |
| Cable Length | 1500 mm |
| Termination | Stripped &Ttinned |
Series Features
MK11 Stainless Steel Series Reed Sensor
Series DescriptionThe MK11 Stainless Steel Series is a durable, cylindrically housed reed sensor designed for M5/M8 adjustable thread mounting, offering precise sensing alignment and robust performance in demanding industrial and outdoor environments. Its stainless steel housing and IP67 rating make it ideal for applications requiring corrosion resistance, mechanical strength, and environmental protection.
The MK11 Stainless Steel Series offers reliable magnetic sensing in environments where mechanical resilience and environmental sealing are critical. It’s a trusted solution for OEMs and engineers working in outdoor, industrial, or hygienic settings.
- Stainless steel cylindrical housing for rugged durability
- M5/M8 thread mount for adjustable positioning
- Cable terminal design with flat or round PVC options
- UL-approved and IP67-rated for harsh conditions
- Customizable switch type, cable length, and termination
Food and beverage equipment
Industrial automation
Security systems
White goods and appliances
Position, level, and end-limit sensing
