Product Description

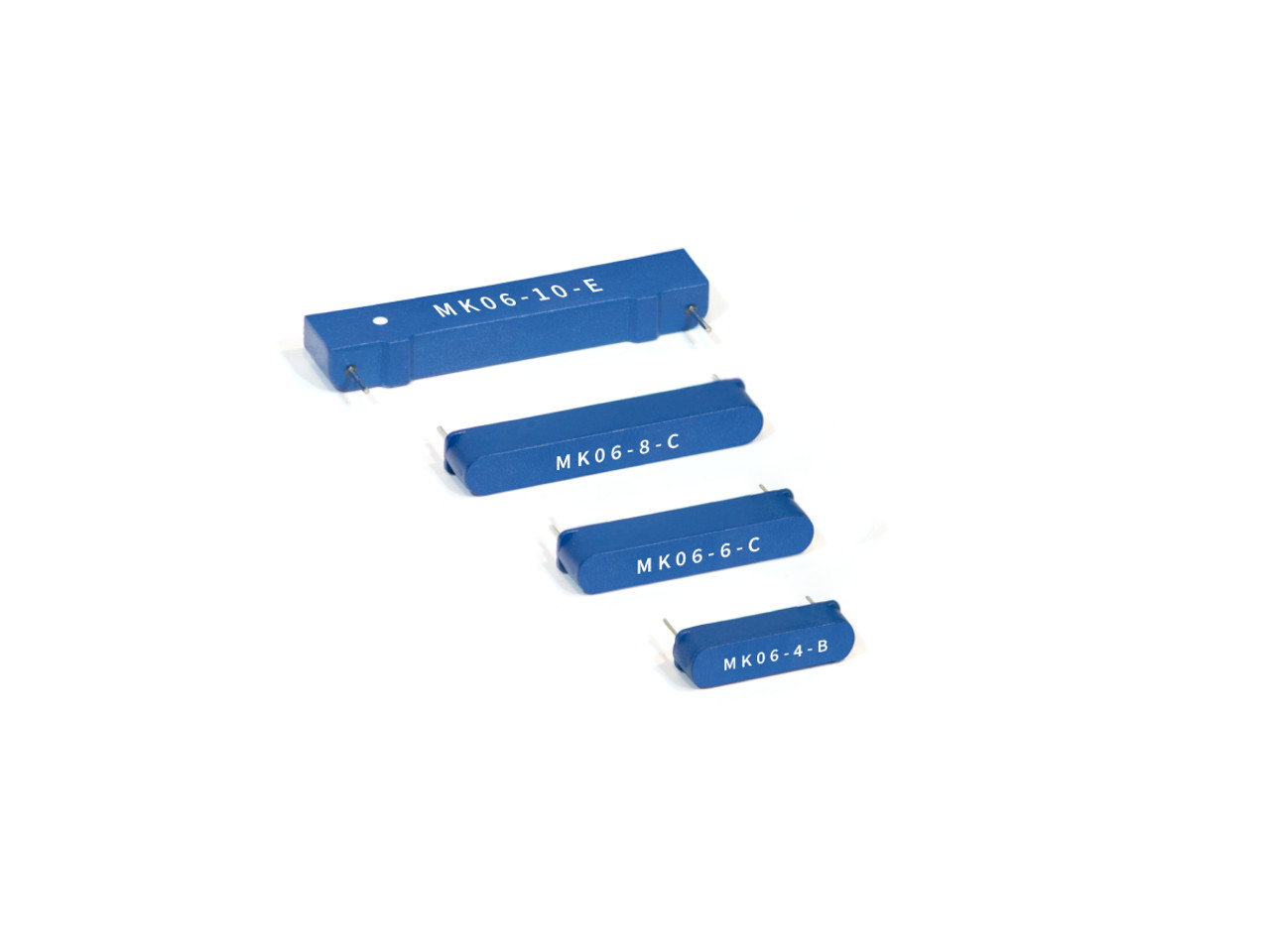

Standex Electronics MK06 Series Reed Sensor; ThroughHole; SPST-NO; 15-20 AT; 0.5 A; PC Pin
Reed Sensor • Reed Sensor • Mounting Style: Through Hole • Contact Configuration: SPST-NO • Operate Range: 15-20 AT • Switching Current: 0.5 A • Termination: PC Pin
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK06 Series |
| Catalog Part Number | MK06-8-C |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Through Hole |
| Contact Configuration | SPST-NO |
| Operate Range | 15-20 AT |
| Contact Rating | 10 W |
| Switching Voltage | 180 V |
| Switching Current | 0.5 A |
| Size Body | 0.880" L x 0.130" W x 0.280" H (22.32mm x 3.30mm x 7.10mm) |
| Termination | PC Pin |
| Packaging | Bulk |
Series Features
MK06 Series Reed Switch
Series DescriptionThe MK06 Series is a compact, through-hole mount (THT) reed sensor designed for direct PCB integration in applications requiring precise magnetic sensing. With a variety of case sizes, magnetic sensitivities, and switch configurations, it’s ideal for position, motion, proximity, and on/off control in industrial, security, and appliance systems.
The MK06 Series offers compact, high-performance magnetic sensing in a PCB-friendly format, making it a trusted solution for OEMs and engineers designing in space-constrained or embedded environments.
- Miniature THT design for direct PCB mounting
- Multiple case sizes and magnetic sensitivity options
- UL-approved configurations
- Customizable switch type, pin spacing, and termination
- High-voltage and latching options available
Industrial automation
Security systems
Telecommunications equipment
White goods and appliances
Medical devices
Position and proximity sensing
