Product Description

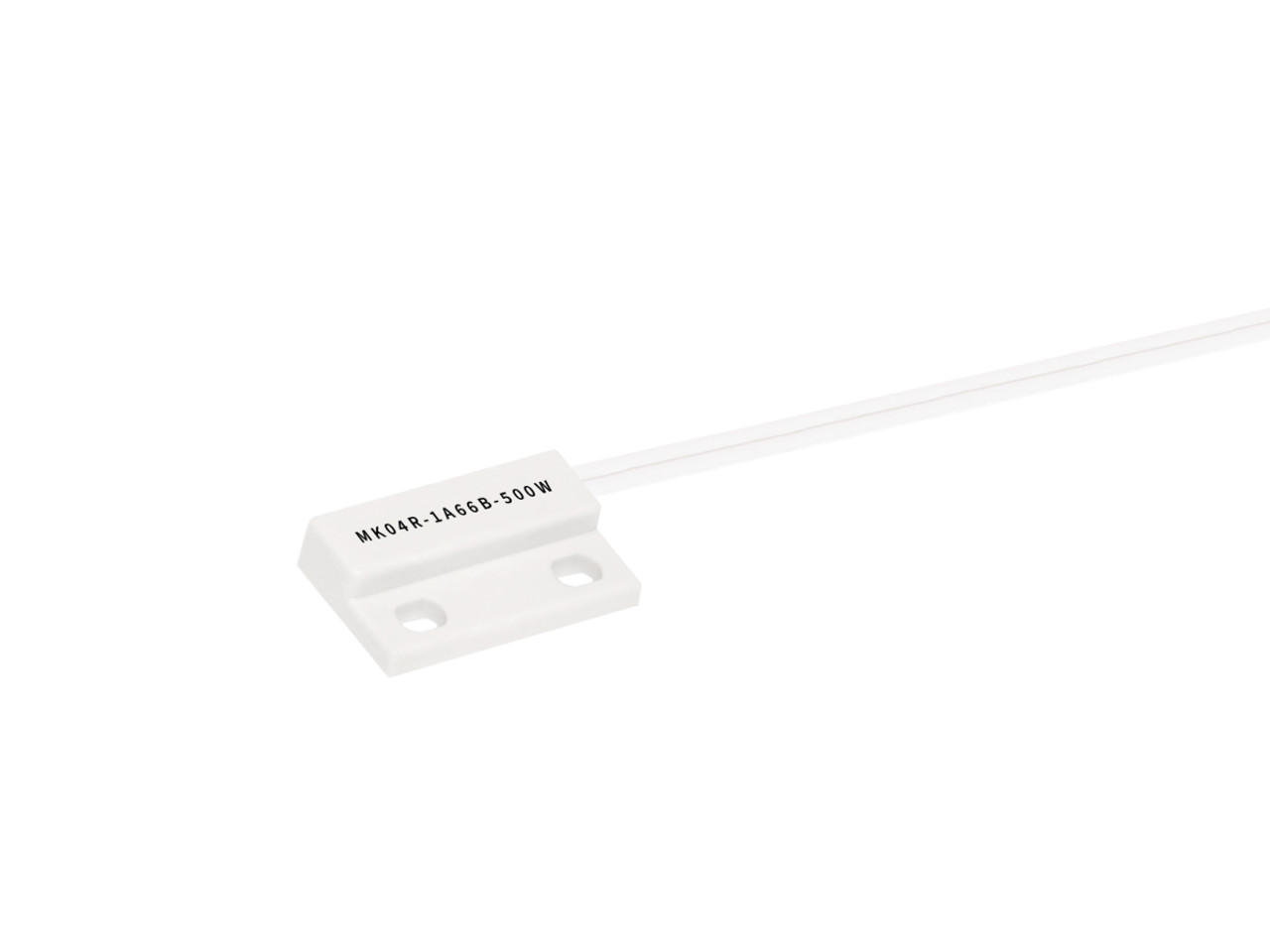

Standex Electronics MK04R Series Reed Sensor; Screw Flng RtCab; SPST-NO; 10-15 AT; 0.5 A; Cable, Flat
Reed Sensor • Reed Sensor • Mounting Style: Screw Flange Right Cable Exit • Contact Configuration: SPST-NO • Operate Range: 10-15 AT • Switching Current: 0.5 A • Termination: Cable, Flat
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK04R Series |
| Catalog Part Number | MK04R-1A66B-500W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Screw Flange Right Cable Exit |
| Contact Configuration | SPST-NO |
| Operate Range | 10-15 AT |
| Contact Rating | 10 W |
| Switching Voltage | 180 V |
| Switching Current | 0.5 A |
| Size Body | 0.910" L x 0.550" W x 0.230" H (23.00mm x 13.90mm x 5.90mm) |
| Termination | Cable, Flat |
| Packaging | Bulk |
| Cable Length | 500 mm |
| Termination | Stripped &Ttinned |
Series Features
MK04R Series Reed Sensor
Series DescriptionThe MK04R Series is a cost-effective reed sensor designed with a right-side cable exit, making it ideal for applications where space constraints prevent the use of standard left-exit configurations. Its compact, rectangular housing features flat PVC wires that exit from the right side, available in a variety of standard and custom cable lengths and termination options to suit diverse installation needs.
The MK04R Series offers the same reliability and versatility as the MK04, with a cable exit configuration tailored for more constrained environments. It’s an ideal choice for OEMs and engineers seeking a compact, flexible sensing solution.
- Right-side cable exit for space-sensitive designs
- Flat or round PVC cable options
- Multiple cable lengths and terminations available
- Screw flange mounting for secure and easy installation
- Customizable switch configurations to match application need
Industrial automation
Security systems
White goods
Door & window contacts
Pneumatic/hydraulic actuators
Position indicators
