Product Description
Standex Electronics MK02 Series Reed Sensor Metal Detect; SPST-NO; 4.5 ~ 10 MM; 0.5 A; Screw Flange; Cable, Round
Reed Sensor • Reed Sensor • Mounting Style: Screw Flange • Contact Configuration: SPST-NO • Operate Range: 4.5 ~ 10 MM • Switching Current: 0.5 A • Termination: Cable, Round
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Sensor |
| Product Sub Category | Reed Sensor |
| Series | MK02 Series |
| Catalog Part Number | MK02/1-1A66-5000W |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting Style | Screw Flange |
| Contact Configuration | SPST-NO |
| Operate Range | 4.5 ~ 10 MM |
| Contact Rating | 10 W |
| Switching Voltage | 180 V |
| Switching Current | 0.5 A |

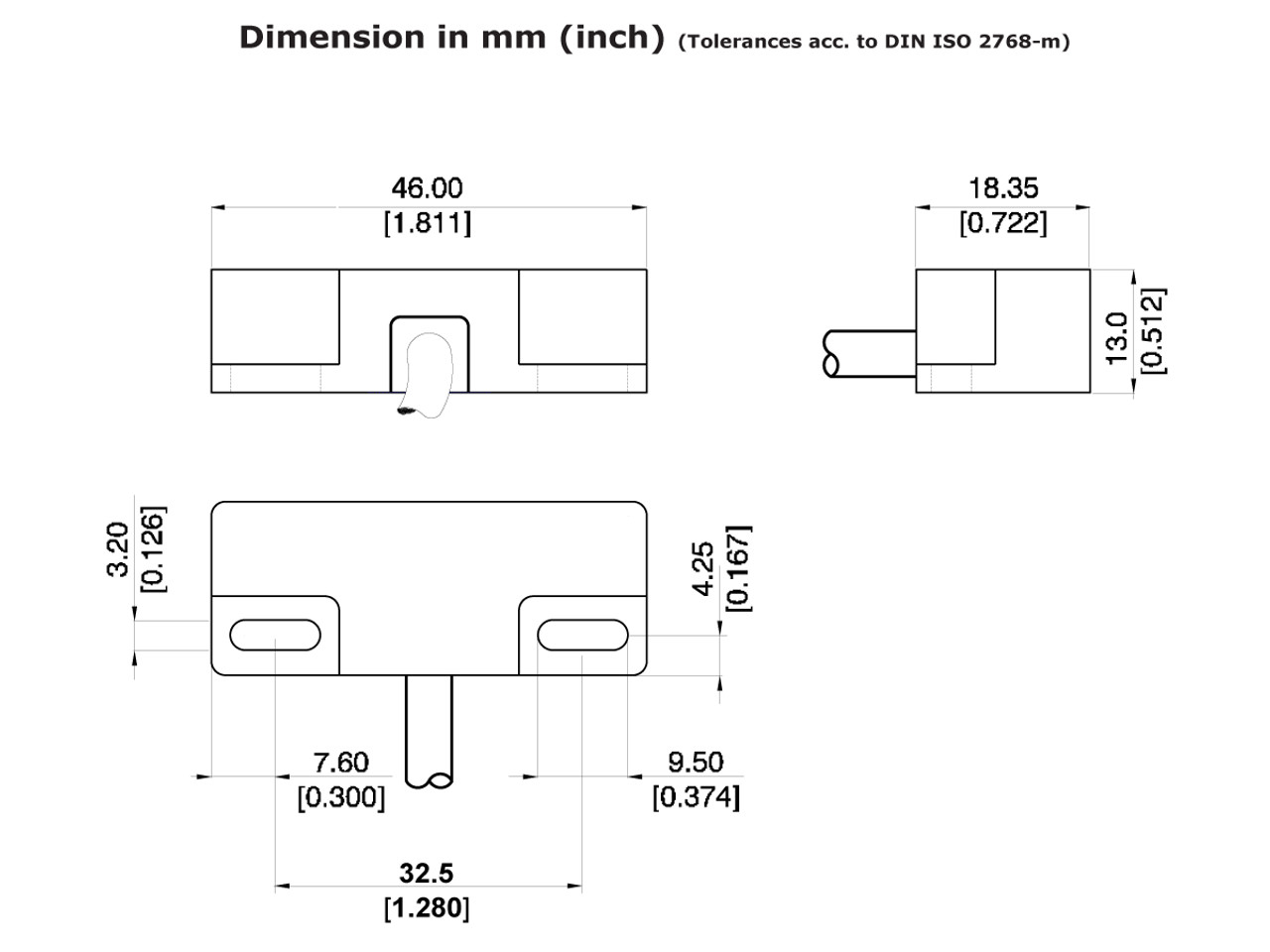

| Size Body | 1.280" L x 0.661" W x 0.394" H (32.40mm x 16.80mm x 10.00mm) |
| Termination | Cable, Round |
| Packaging | Bulk |
Series Features
MK02 Series Reed Sensor
Series DescriptionThe MK02 Series Reed Sensor is a robust solution for ferrous metal detection, proximity sensing, and position monitoring in industrial and security applications. Housed in a screw-fastened flange-mount rectangular casing with cable terminals, it offers reliable performance in harsh environments and is UL approved with an IP67 rating for dust and water resistance.
- High reliability and long operational life
- Compact design for space-constrained installations
- Multiple configurations to suit diverse application needs
- Wide Operating Range: Detects targets from 4.5 mm to 15 mm, depending on model
- Mounting Style: Screw flange for robust attachment
- Ingress Protection: IP67 rated for harsh environments
- Certifications: UL Approved
Industrial automation
Security systems
Metal detection
Position sensing in rugged environments
