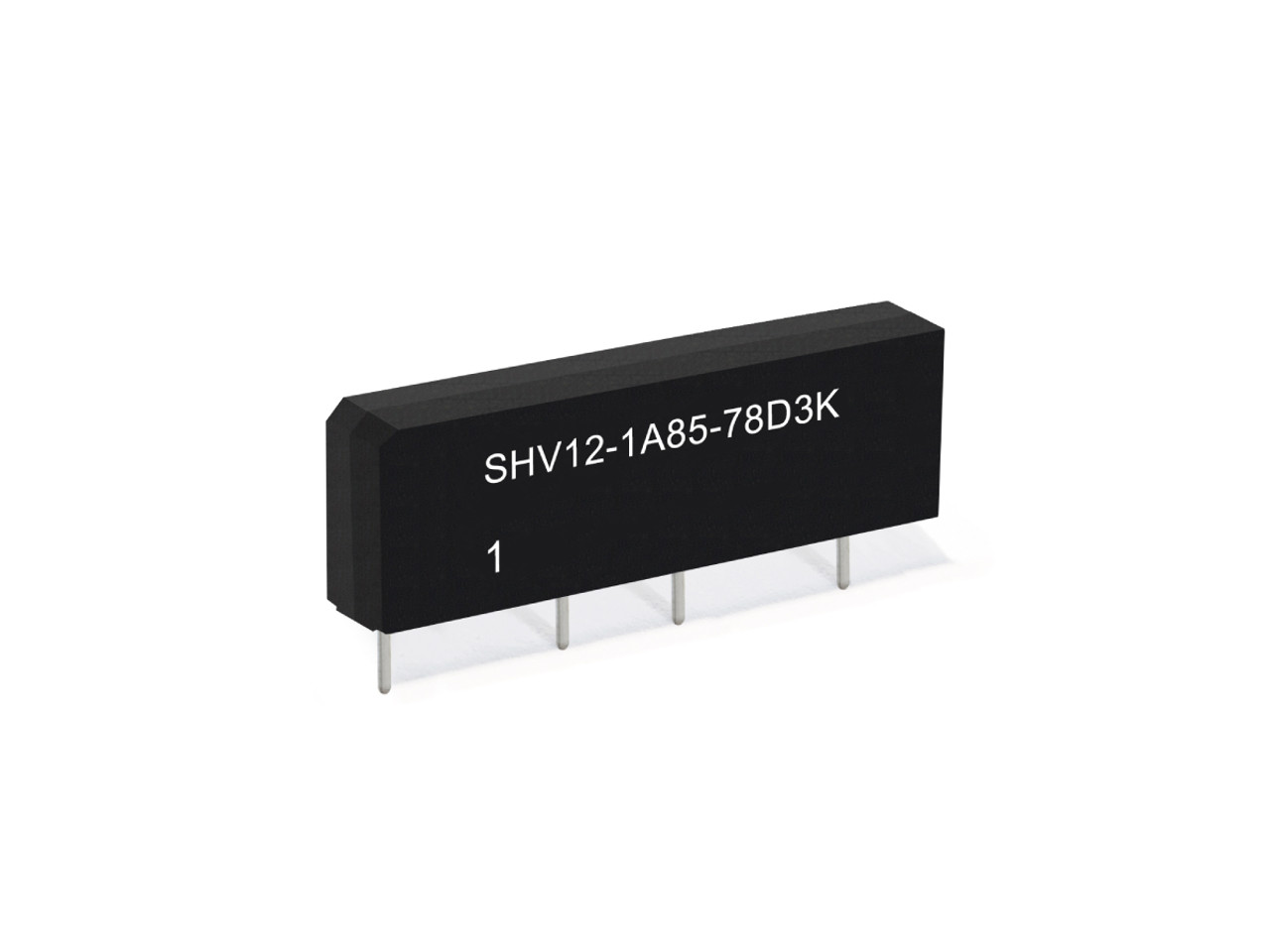

Product Description
Description: Reed Relay • Mounting: Through Hole (THT) • Contact Form: 1A SPST-NO • Coil Voltage: 12 VDC • Switching Voltage: < 1000 VDC • Switching Current (max.): 1 Amp • Option: Diode & Magnetic Shield • Special Feature: - • Washability: Fully Sealed
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting | Through Hole (THT) |
| Contact Form | 1A SPST-NO |
| Coil Voltage | 12 VDC |
| Switching Voltage | < 1000 VDC |
| Switching Current (max.) | 1 Amp |
| Option | Diode & Magnetic Shield |
| Special Feature | - |
| Washability | Fully Sealed |
| Coil Resistance (typ.) | 500 |
| Pull-In Voltage (VDC) | 8.4 |
| Drop-Out Voltage (VDC) | 1.8 |
| Nominal Coil Power (typ.) mw | 288 |
| Contact Material | Rhodium |
| Rated Power (max.) | 100 W |
| Carry Current (max.) | 2.5 A |
| Contact Resistance (max.) | 150 mOhm |
| Breakdown Voltage (min.) | 4 kVDC |
| Operating Time (max.) | 1.1 ms |
| Release Time (max.) | 0.1 ms |
| Insulation Resistance (typ.) | 1010 ohm |
| Capacitance (typ.) | 0.5 pF |
| Dielectric Strength Coil/Contact (min.) | 4 kVDC |
| Insulation Resistance Coil/Contact (min./typ.) | 1011/1012 ohm |
| Capacitance Coil/Contact (typ.) | 1.2 pF |
| Shock Resistance (max.) | 50 g |
| Vibration Resistance (max.) | 20 g |
| Operating Temperature (max.) | -40 to 105 °C |
| Storage Temperature (max.) | -40 to 125 °C |
| Soldering Temperature (max.) | 260 °C |
| Series Features |
| SHV Reed Relay |
| Series Description: The SHV reed relay is a single in-line and high voltage relay or instrumentation grade reed relay supplied in a molded housing, capable of switching up to 1kVDC and breakdown voltage of 4kVDC. This high voltage reed relay series features an insulation res |
| Applications: Automated test equipment (ATE), battery powered devices, general purpose electronic test equipment, medical equipment, photovoltaics, portable defibrillators, replacement of mercury wetted relays, telecommunications |
|
