Product Description

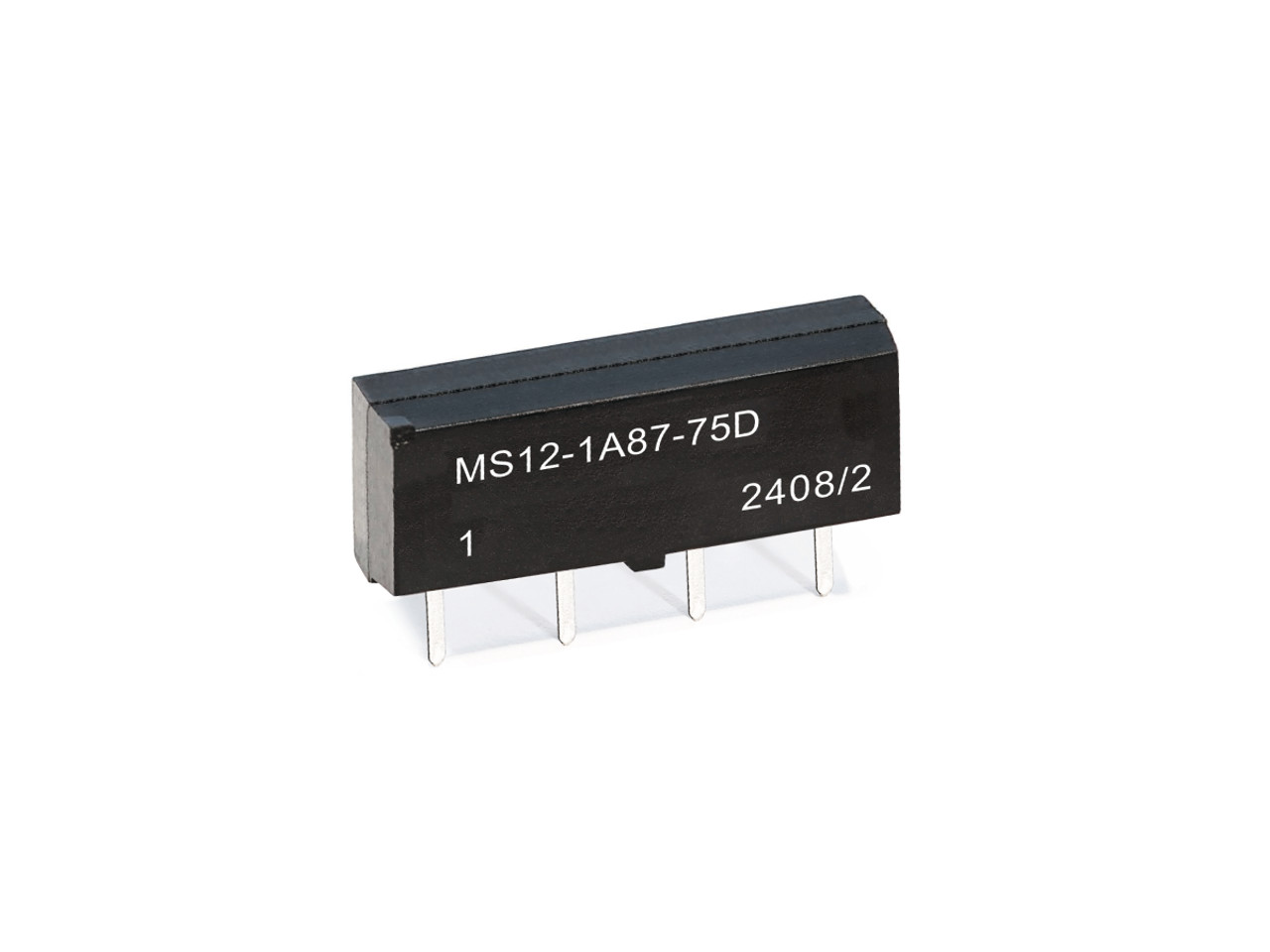

Standex Electronics MS Series Reed Relay; Through Hole (THT); 1A SPST-NO; 5 VDC; 0.5 Amp; < 200 VDC SWT Voltage
Reed Relay • Mounting: Through Hole (THT) • Contact Form: 1A SPST-NO • Coil Voltage: 5 VDC • Switching Voltage: < 200 VDC • Switching Current (max.): 0.5 Amp • Option: Standard • Special Feature: Low Consumption Coil
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Relay |
| Product Sub Category | Reed Relay |
| Series | MS Series |
| Catalog Part Number | MS05-1A87-75LHR |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting | Through Hole (THT) |
| Contact Form | 1A SPST-NO |
| Coil Voltage | 5 VDC |
| Switching Voltage | < 200 VDC |
| Switching Current (max.) | 0.5 Amp |
| Option | Standard |
| Special Feature | Low Consumption Coil |
| Coil Resistance (typ.) | 500 |
| Pull-In Voltage (VDC) | 3.75 |
| Drop-Out Voltage (VDC) | 0.75 |
| Nominal Coil Power (typ.) mw | 50 |
| Rated Power (max.) | 10 W |
| Carry Current (max.) | 1.0 A |
| Contact Resistance (max.) | 150 mOhm |
| Breakdown Voltage (min.) | .225 kVDC |
| Operating Time (max.) | 0.5 ms |
| Release Time (max.) | 0.1 ms |
| Insulation Resistance (typ.) | 10<sup>11</sup> ohm |
| Capacitance (typ.) | 0.2 pF |
| Shock Resistance (max.) | 50 g |
| Vibration Resistance (max.) | 20 g |
| Operating Temperature (max.) | -20 to 70 °C |
| Storage Temperature (max.) | -35 to 95 °C |
| Soldering Temperature (max.) | 260 °C |
Series Features
MS Series Reed Relay
Series DescriptionThe MS Series is a general-purpose micro single-in-line (SIL) reed relay designed for instrumentation-grade performance in compact and high-density PCB layouts. Encased in a rugged thermoset overmolded package, the MS Series features a standard internal magnetic shield and is ideal for stacking in close matrices. A high-frequency version is available, supporting switching up to 1 GHz, making it suitable for precision signal routing in test and measurement environments.
Available in SPST-NO (Form 1A) and SPST-NC (Form 1B) contact configurations, the MS Series supports coil voltages of 5 VDC and 12 VDC, with coil resistance ranging from 280 to 700 Ω. It is rated for up to 10 W, 200 VDC, and 0.5 A, and offers optional diode protection for coil suppression. UL approval ensures compliance with safety standards for industrial and commercial applications.
- Features: Micro Single In-Line Relay, High Resistance Coil Option available
- Applications: ATE Systems, Computer Peripherals, Alarm Systems, Measurement Equipment & Others
- Markets: Test and Measurement, Security & Others
Alarm Systems: Reliable switching in compact control modules
Computer Peripherals: Signal routing in embedded systems
General Purpose Switching: Versatile use across industrial electronics
Telecommunications: Signal control in network infrastructure
Test & Measurement (ATE): Precision switching in instrumentation-grade equipment
