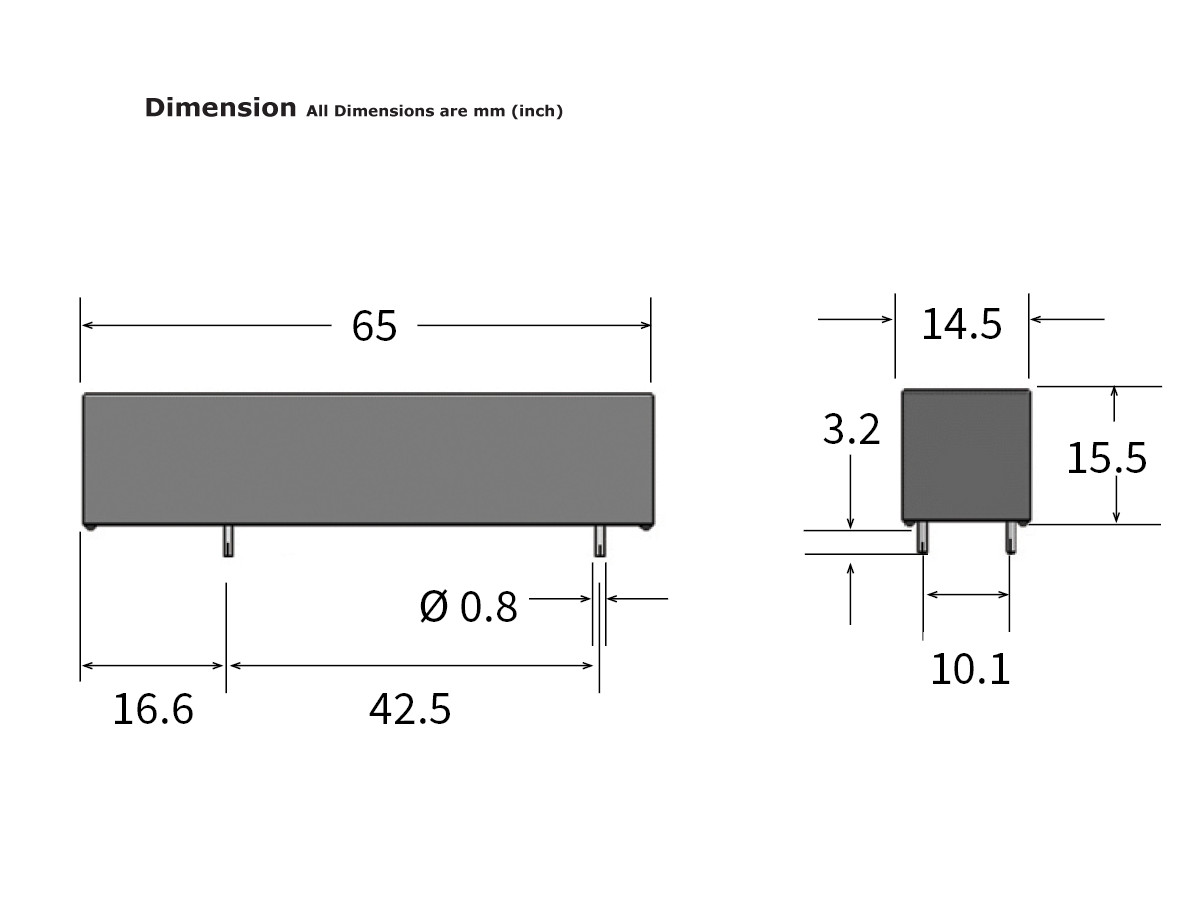

Product Description
Description: Reed Relay • Mounting: Through Hole (THT) • Contact Form: 1A SPST-NO • Coil Voltage: 5 VDC • Switching Voltage: < 7500 VDC • Switching Current (max.): 3 Amp • Option: Standard • Special Feature: -
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting | Through Hole (THT) |
| Contact Form | 1A SPST-NO |
| Coil Voltage | 5 VDC |
| Switching Voltage | < 7500 VDC |
| Switching Current (max.) | 3 Amp |
| Option | Standard |
| Special Feature | - |
| Coil Resistance (typ.) | - |
| Pull-In Voltage (VDC) | - |
| Drop-Out Voltage (VDC) | - |
| Nominal Coil Power (typ.) mw | - |
| Rated Power (max.) | 50 W |
| Carry Current (max.) | 5.0 A |
| Contact Resistance (max.) | 150 mOhm |
| Breakdown Voltage (min.) | 10 kVDC |
| Operating Time (max.) | 3.0 ms |
| Release Time (max.) | 1.5 ms |
| Insulation Resistance (typ.) | 1012 ohm |
| Capacitance (typ.) | 0.2 pF |
| Shock Resistance (max.) | 50 g |
| Vibration Resistance (max.) | 20 g |
| Operating Temperature (max.) | -20 to 70 °C |
| Storage Temperature (max.) | -35 to 105 °C |
| Soldering Temperature (max.) | 260 °C |
| Series Features |
| HE Series Reed Relay |
| Series Description: The HE Series high voltage reed relay is capable of switching up to 10kVDC and breakdown voltage of 15kVDC. Leakage distance >26mm. This high voltage reed relay is epoxy encapsulated with many PCB pin configurations available. Options include high voltage |
| Applications: Cable test equipment, defibrillators, electrosurgical generator used with electronic scalpel for electrocauterization, medical equipment, replacement of mercury wetted relays, test and measurement (ATE) |
|
