Product Description
Standex Electronics H Series Reed Relay, Axial Leads; 1B SPST-NC, 12 VDC; 3 Amp, < 7500 VDC SWT Voltage
Reed Relay • Mounting: Axial Leads • Contact Form: 1B SPST-NC • Coil Voltage: 12 VDC • Switching Voltage: < 7500 VDC • Switching Current (max.): 3 Amp • Option: Standard • Special Feature: High Voltage Isolation
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Relay |
| Product Sub Category | Reed Relay |
| Series | H Series |
| Catalog Part Number | H12-1B83 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting | Axial Leads |
| Contact Form | 1B SPST-NC |
| Coil Voltage | 12 VDC |
| Switching Voltage | < 7500 VDC |
| Switching Current (max.) | 3 Amp |
| Option | Standard |
| Special Feature | High Voltage Isolation |
| Coil Resistance (typ.) | 180 |
| Pull-In Voltage (VDC) | 8.4 |
| Drop-Out Voltage (VDC) | 1 |
| Nominal Coil Power (typ.) mw | 800 |
| Rated Power (max.) | 50 W |
| Carry Current (max.) | 5.0 Amp |
| Contact Resistance (max.) | 150 mOhm |
| Breakdown Voltage (min.) | 10 VDC |
| Operating Time (max.) | 3.0 ms |
| Release Time (max.) | 1.5 ms |
| Insulation Resistance (typ.) | 10<sup>10</sup> ohm |
| Capacitance (typ.) | 1 pF |
| Shock Resistance (max.) | 50 g |
| Vibration Resistance (max.) | 20 g |
| Operating Temperature (max.) | -20 to 70 °C |
| Storage Temperature (max.) | -35 to 95 °C |
| Soldering Temperature (max.) | 260 °C |
Series Features

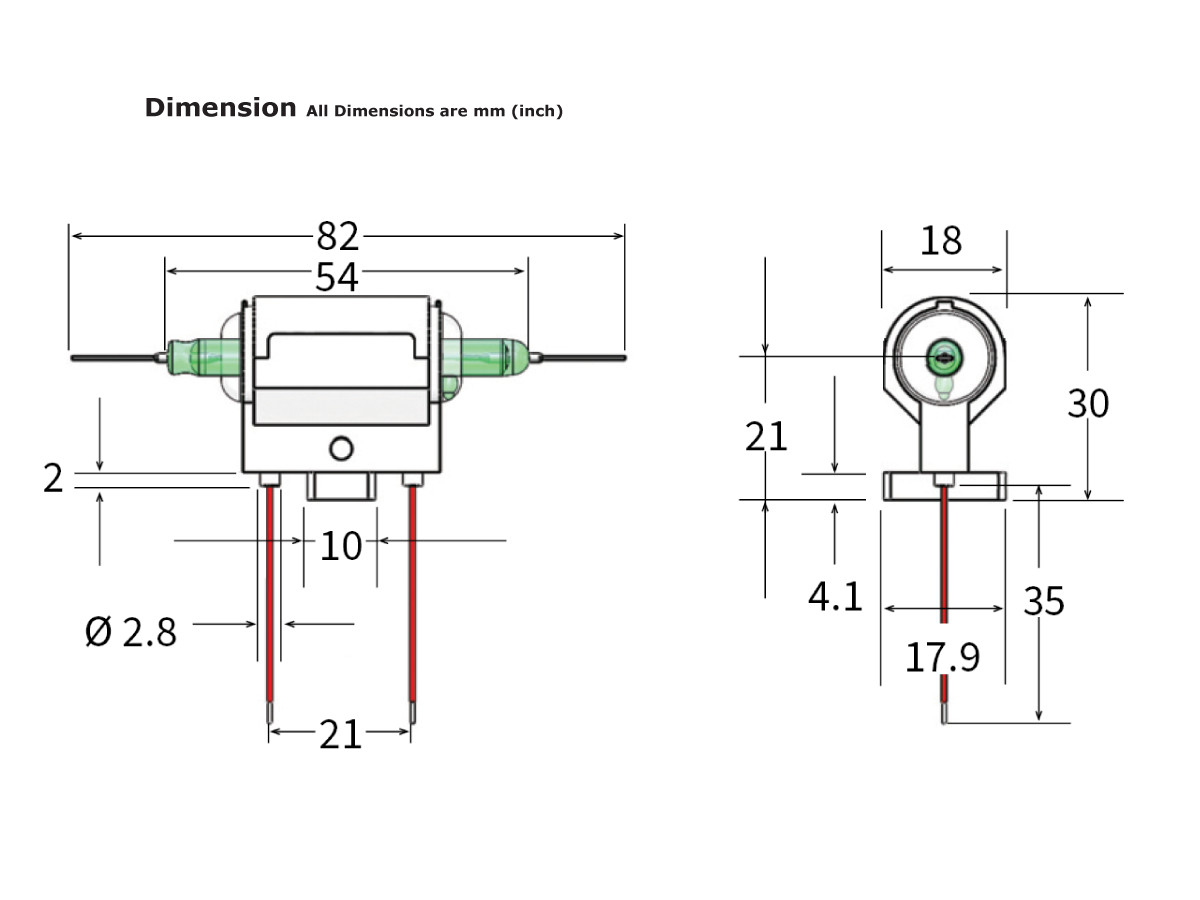

H Series Reed Relay
Series DescriptionThe H Series is a high-voltage reed relay designed for precision switching in demanding applications requiring elevated isolation and breakdown performance. Capable of switching up to 10,000 VDC and withstanding breakdown voltages up to 15,000 VDC, the H Series is ideal for use in medical, industrial, and test environments where safety and reliability are paramount.
This relay features a specially packaged coil with PCB pin-out for the coil, while the switch contacts are configured for direct wiring (sky wiring), allowing flexible integration into high-voltage systems. Available in SPST-NO (Form A) and SPST-NC (Form B) contact forms, the H Series supports coil voltages of 12 VDC and 24 VDC, and is rated for up to 50 W and 3 A. It is a proven replacement for mercury wetted relays in applications requiring clean switching and long-term reliability.
- High-voltage switching up to 10,000 VDC with 15,000 VDC breakdown capability
- SPST-NO and SPST-NC contact configurations for flexible design
- Rated for 50 W and 3 A for high-power applications
- Coil voltage options: 12 VDC and 24 VDC
- Special coil packaging with PCB pin-out; sky wiring for switch contacts
- Ideal replacement for mercury wetted relays
- Through-hole mounting with axial leads
- High isolation for safety-critical systems
Medical Equipment: Defibrillators, electrosurgical generators, and high-voltage isolation
Test & Measurement (ATE): High-voltage switching in automated test systems
Industrial Systems: High-voltage control in power and energy applications
Cable Testing Equipment: Reliable switching for insulation and breakdown testing
High-Voltage Research: Precision switching in lab and experimental setups
