Product Description

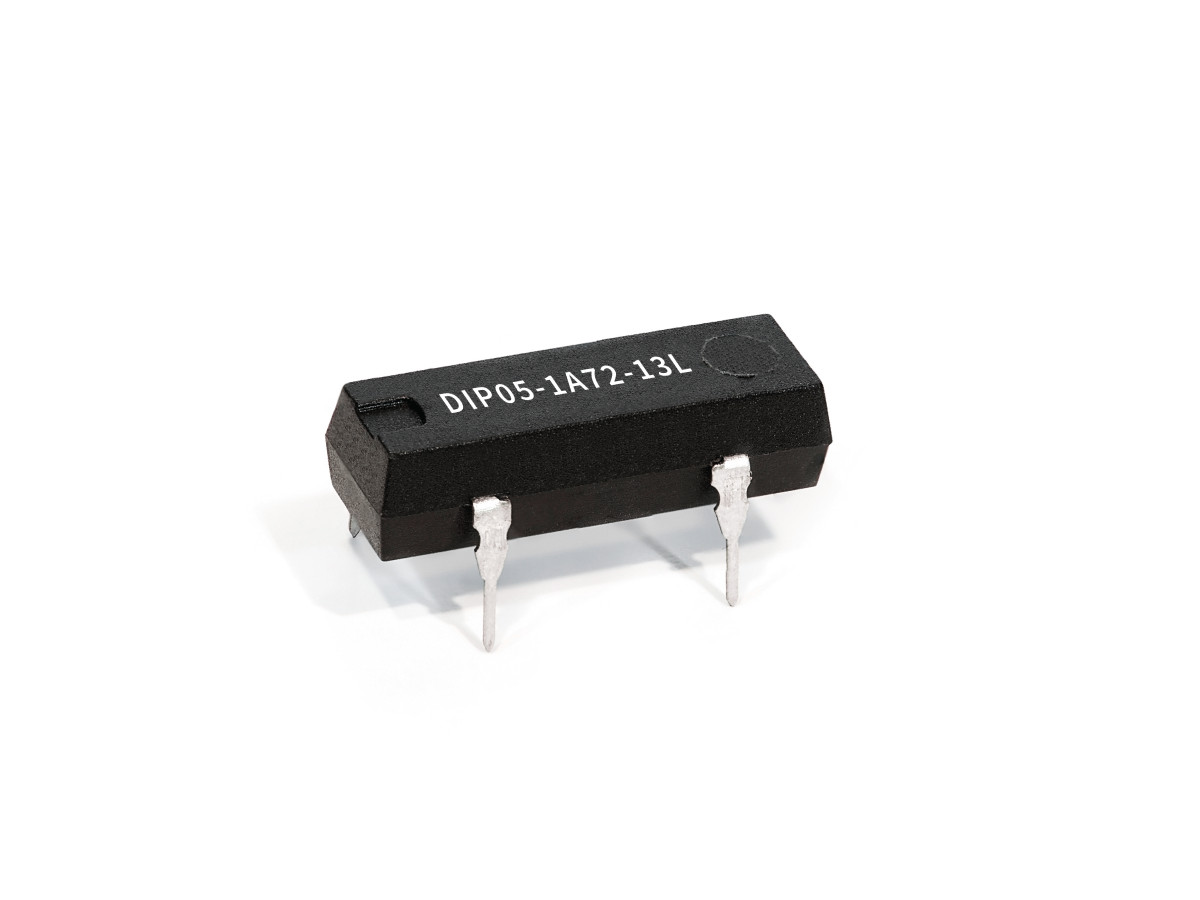

Description: Reed Relay • Mounting: Through Hole (THT) • Contact Form: 2A DPST-NO • Coil Voltage: 12 VDC • Switching Voltage: < 500 VDC • Switching Current (max.): 0.5 Amp • Option: Standard • Special Feature: -
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting | Through Hole (THT) |
| Contact Form | 2A DPST-NO |
| Coil Voltage | 12 VDC |
| Switching Voltage | < 500 VDC |
| Switching Current (max.) | 0.5 Amp |
| Option | Standard |
| Special Feature | - |
| Coil Resistance (typ.) | - |
| Pull-In Voltage (VDC) | 8.4 |
| Drop-Out Voltage (VDC) | 1.8 |
| Nominal Coil Power (typ.) mw | - |
| Rated Power (max.) | 10 W |
| Carry Current (max.) | 1.0 A |
| Contact Resistance (max.) | 200 mOhm |
| Breakdown Voltage (min.) | 0.6 kVDC |
| Operating Time (max.) | 0.5 ms |
| Release Time (max.) | 0.1 ms |
| Insulation Resistance (typ.) | 1010 |
| Capacitance (typ.) | 0.4 pF |
| Shock Resistance (max.) | 50 g |
| Vibration Resistance (max.) | 20 g |
| Operating Temperature (max.) | -20 to 70 °C |
| Storage Temperature (max.) | -35 to 95 °C |
| Soldering Temperature (max.) | 260 °C |
| Series Features |
| DIP Series Reed Relay |
| Series Description: General purpose dual in-line (DIL) IC compatible DIP Series Reed Relay supplied in a rugged thermoset overmolded package. Available with dielectric strength 4.25kVDC. Optional diode. UL approval. |
| Applications: General purpose, medical equipment, telecommunications, test and measurement (ATE) |
|
