Product Description

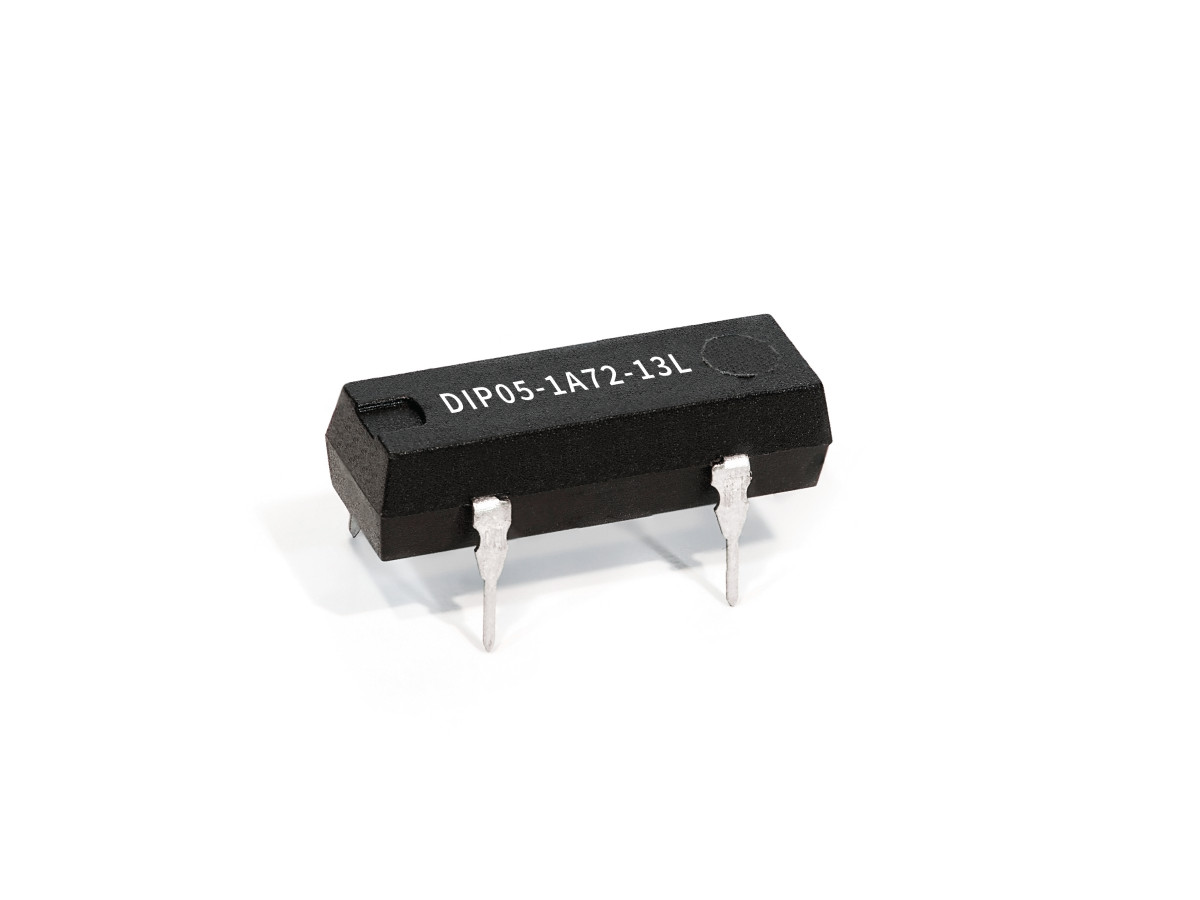

Standex Electronics DIP Series Reed Relay, Through Hole (THT); 1B SPST-NC, 5 VDC; 0.5 Amp; < 200 VDC SWT V; Standard
Reed Relay • Mounting: Through Hole (THT) • Contact Form: 1B SPST-NC • Coil Voltage: 5 VDC • Switching Voltage: < 200 VDC • Switching Current (max.): 0.5 Amp • Option: Standard • Special Feature: -
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Relay |
| Product Sub Category | Reed Relay |
| Series | DIP Series |
| Catalog Part Number | DIP05-1B72-13L |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Mounting | Through Hole (THT) |
| Contact Form | 1B SPST-NC |
| Coil Voltage | 5 VDC |
| Switching Voltage | < 200 VDC |
| Switching Current (max.) | 0.5 Amp |
| Option | Standard |
| Special Feature | - |
| Coil Resistance (typ.) | 500 (200) |
| Pull-In Voltage (VDC) | 3.5 |
| Drop-Out Voltage (VDC) | 0.75 |
| Nominal Coil Power (typ.) mw | 50 |
| Rated Power (max.) | 10 W |
| Carry Current (max.) | 1.0 A |
| Contact Resistance (max.) | 100 mOhm |
| Breakdown Voltage (min.) | 0.25 kVDC |
| Operating Time (max.) | 0.5 ms |
| Release Time (max.) | 0.1 ms |
| Insulation Resistance (typ.) | 10<sup>10</sup> |
| Capacitance (typ.) | 0.3 pF |
| Shock Resistance (max.) | 50 g |
| Vibration Resistance (max.) | 20 g |
| Operating Temperature (max.) | -20 to 70 °C |
| Storage Temperature (max.) | -35 to 95 °C |
| Soldering Temperature (max.) | 260 °C |
Series Features
DIP Series Reed Relay
Series DescriptionThe DIP Series is a general-purpose dual-in-line reed relay designed for reliable switching in a wide range of electronic applications. Housed in a rugged thermoset overmolded package, it offers multiple contact configurations, including SPST-NO (Form A), SPST-NC (Form B), SPDT (Form C), and DPST-NO (Form 2A), to support versatile circuit designs.
Rated for up to 50 W, 500 VDC, and 2 A, the DIP Series supports coil voltages from 3 VDC to 24 VDC and coil resistances between 500 Ω and 2000 Ω. Optional features include integrated diodes, magnetic shielding, and coaxial shielding for enhanced performance in sensitive environments. With UL approval and through-hole mounting, the DIP Series is ideal for use in medical equipment, telecommunications, industrial systems, and automated test equipment (ATE).
- Dual-in-line (DIP) epoxy-encapsulated package for durability and compatibility
- Multiple contact forms: SPST-NO, SPST-NC, SPDT, DPST-NO
- Rated for up to 50 W, 500 VDC, and 2 A
- Coil voltage options: 3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC
- Optional diode, magnetic shield, and coaxial shield configurations
- High dielectric strength up to 4.25 kVDC
- Through-hole mounting for secure PCB integration
- UL approved for safety and compliance
Medical Equipment: Reliable switching in diagnostic and monitoring systems
Telecommunications: Signal routing in network infrastructure
Industrial Controls: Relay switching in automation and control systems
Automated Test Equipment (ATE): Versatile relay configurations for test matrices
General Purpose Electronics: Flexible relay solutions for custom designs
