Product Description
Standex Electronics 525 Series Opto-Coupler; 1 Channel; 4-DIP (0.300", 7.62mm); Transistor; 100 mA; 32V
Opto-Coupler • Number of Channels: 1 • Voltage - Isolation: 4000VDC • Package / Case: 4-DIP (0.300", 7.62mm) • Output Type: Transistor • Turn On/Off Time (µsec): 5.5µs, 4.2µs • Mounting Type: Through Hole • DC Forward Current If max.: 100 mA • Voltage - Output (Max): 32V
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Opto-Coupler |
| Product Sub Category | Opto-Coupler |
| Series | 525 Series |
| Catalog Part Number | 525-03-0-i |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 4000VDC |
| Input Type | DC |
| Output Type | Transistor |
| Turn On/Off Time (µsec) | 5.5µs, 4.2µs |
| Mounting Type | Through Hole |
| DC Forward Current If max. | 100 mA |
| Voltage - Output (Max) | 32V |
| Current - Output / Channel | 50mA |
| Emitter/Collector Power Dissipation Ptot max. (mW) | 170/100 |
| Creeping Distance, Air Path I/O Min. (mm) | 14.5 |
| Current Transfer Ratio lc/lf (lf = 10mA) Min. (A) | 0.5 |
| Transmission Frequencies up to (KHz) | 50 |
| Special Feature | ATEX/IECEx Certified, Small size, 10^12? IR |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Operating Temperature | -40°C ~ 85°C |

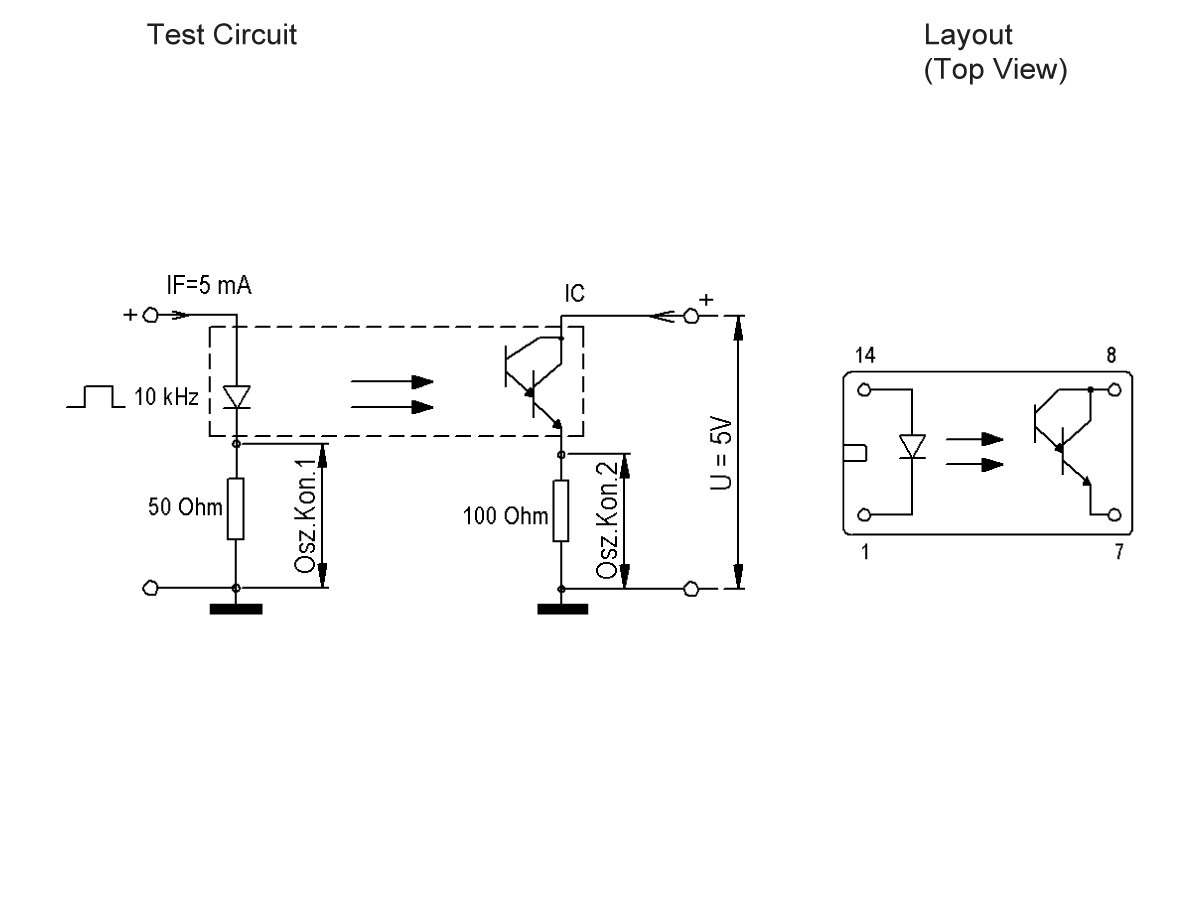

Series Features
535 Series Optocouplers
Series DescriptionThe 525 Series Optocouplers are high-isolation, solid-state devices designed for galvanic separation in intrinsically safe circuits and other high-reliability applications. With a minimum isolation voltage of 4,000 VDC, these optocouplers ensure safe signal transmission between input and output, even in environments with flammable gases or high electrical noise.
Certified to ATEX and IECEx standards, the 525 Series supports both analog and digital signal transfer with minimal coupling capacitance and fast switching speeds. The use of a photo-diode output enables short cycle times and signal inversion capabilities, while the non-mechanical design ensures long operational life and immunity to magnetic fields
With a compact footprint and creepage/air path distances of up to 14.5 mm, these optocouplers meet stringent safety requirements and are ideal for use in hazardous and industrial environments.
- ATEX & IECEx certified for use in explosive or hazardous environments
- Galvanic isolation up to 4,000 VDC between input and output
- Supports analog and digital signal transmission
- Fast switching times (typ. 5.5 µs on / 4.2 µs off)
- High insulation resistance up to 10¹² Ω
- Minimal coupling capacitance for clean signal separation
- Compact design with 14.5 mm creepage and air path distances
- Non-mechanical switching for long operational life
- Immune to magnetic fields and environmental interference
- Signal inversion capability for flexible logic control
Oil & Gas: Signal isolation in control systems for flammable environments
Mining Operations: Safe switching in explosive atmospheres
Medical Equipment: ESD-resistant signal separation in sensitive devices
Test & Measurement: High-speed signal transfer in precision instruments
Automation Systems: Galvanic isolation in industrial control circuits
Energy & Power Systems: Isolation in renewable and conventional energy systems
Process Control: Safe signal routing in hazardous production environments
