Specifications

Series Features

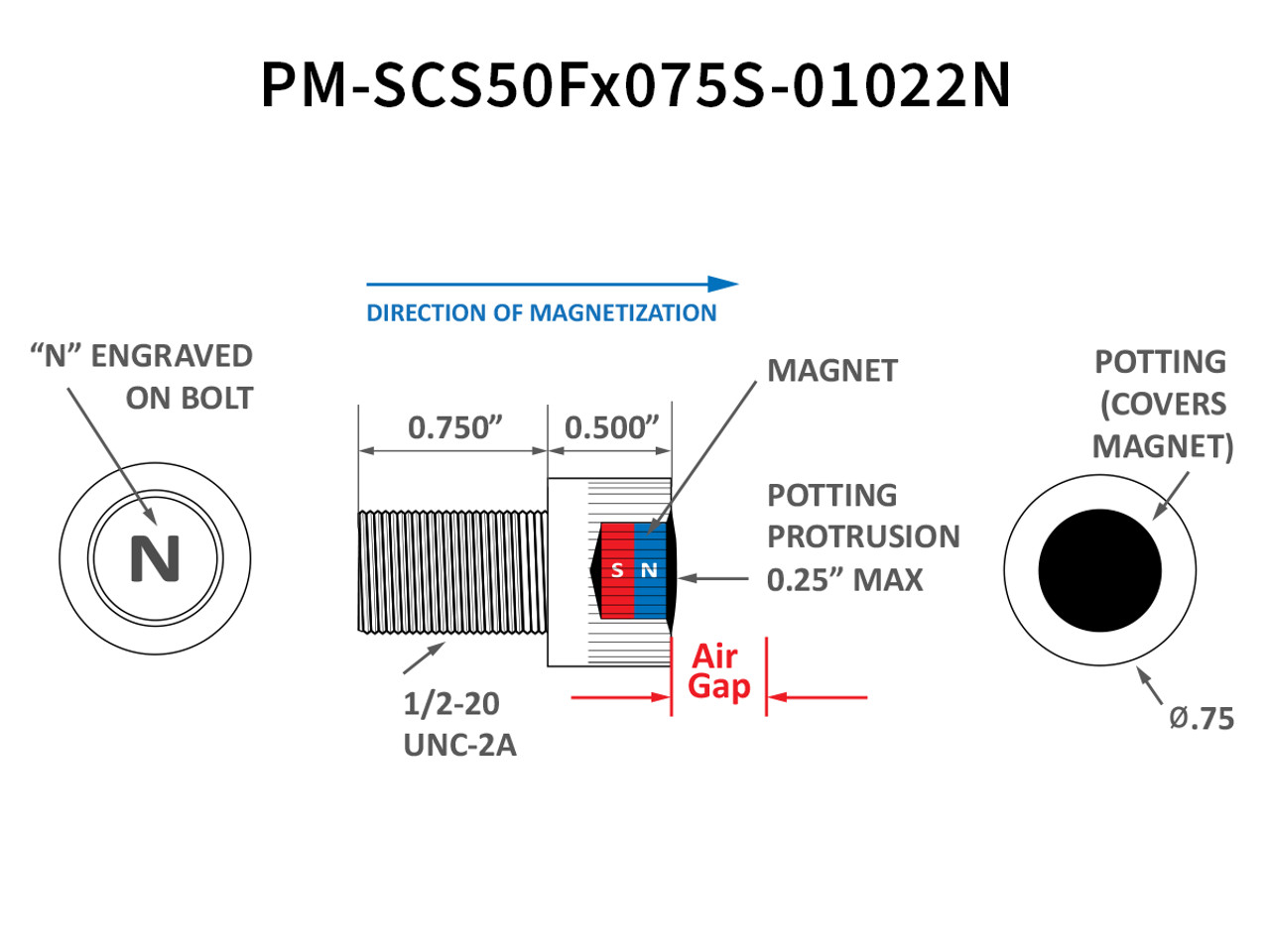

PM Series Magnet

The PM series magnet is a high-strength Neodymium magnet securely housed within a stainless-steel socket cap screw, offering a rugged and compact solution for proximity sensing and magnetic triggering applications. Available in both North Pole and South Pole versions, this series provides flexibility for polarity-specific sensing requirements.

Design Notes:
Gap is from the face of the sensor to the surface of the magnet’s South Pole surface.
Clear “S” engraving on South Pole variant or “N” for North Pole variant ensures quick visual identification during installation.
Gaps are calculated and will vary slightly part to part.
Use non-magnetic mounting hardware when installing.
Refer to the sensor specifications sheet to determine operate gap range.
The presence of ferrous metals near the magnet effects field strength at the sensor location.
The presence of steel, magnets, or electromagnetic fields will affect the operate gap range.

• Polarity Selection: Choose between North or South Pole versions to match sensor orientation or system requirements.
• Engraved Marking: Clear “S” engraving on South Pole variant or “N” for North Pole variant ensures quick visual identification during installation.
• Potted Construction: Magnet is securely embedded within the bolt casing for enhanced durability and environmental protection.
• Compact Integration: Ideal for applications requiring a threaded mounting solution with embedded magnetic functionality.

Industrial Automation: Used in machinery for position sensing and magnetic actuation.
Security Systems: Enables magnetic triggering in access control and alarm systems.
Medical Equipment: Suitable for non-contact sensing in sterile environments.
Automotive Systems: Integrates into vehicle components for proximity detection.
Robotics: Provides precise magnetic reference points for motion control.
Custom Assemblies: Ideal for OEMs requiring embedded magnets in mechanical fasteners.
