AM Series Magnet

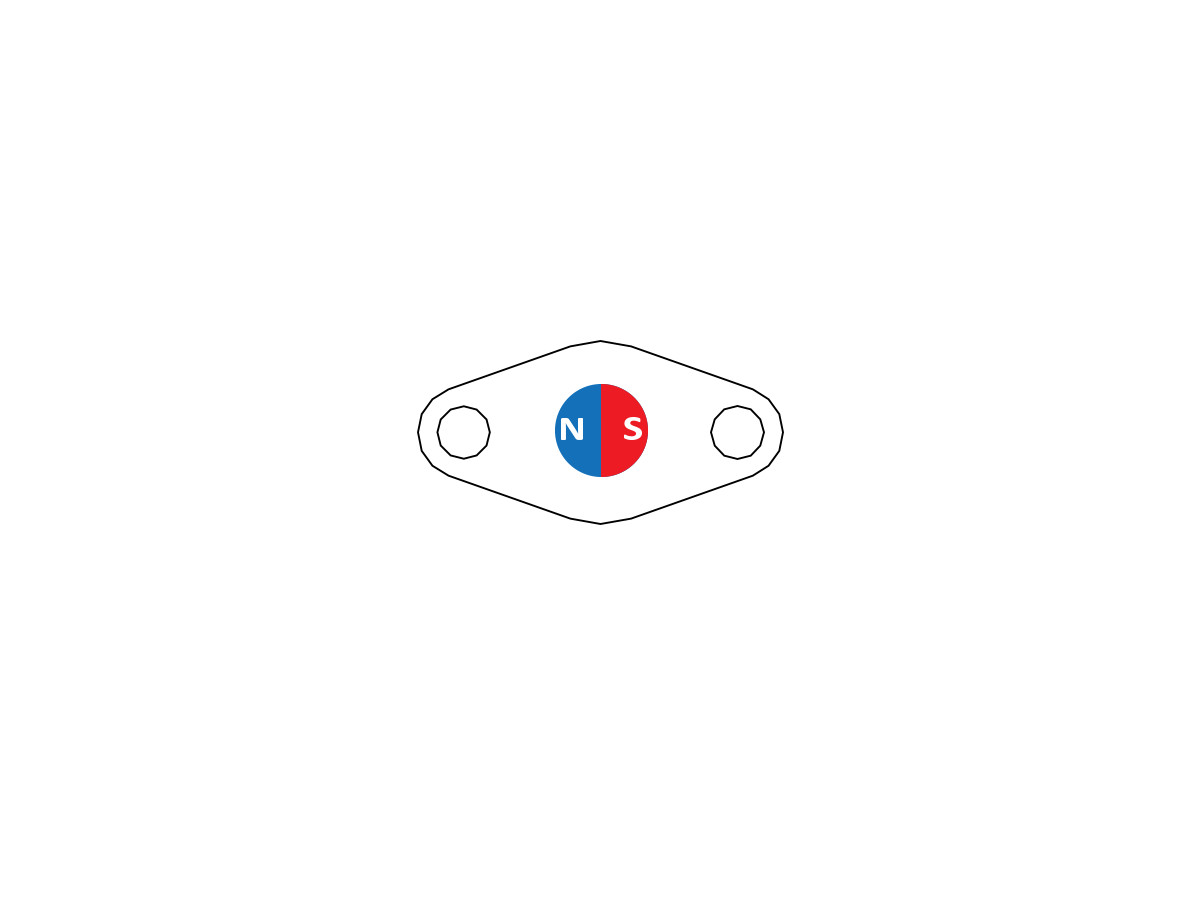

The AM series magnet is a potted, radially magnetized magnet housed in a compact casing designed specifically for use with angular position sensors. Engineered to deliver consistent magnetic field strength across a defined sensing gap, this magnet enables precise rotational angle detection when paired with the APS Series Angle Position Sensor series.
<Br>Design Notes:
These magnets, when paired with Angular Position Sensors will provide an analog output that can be used to resolve the rotation angle between the sensor and the target.
Additional housing shapes and magnet sizes are available.

• Optimized for Angular Sensing: Designed to work seamlessly with APS sensors to provide analog output for rotational angle measurement.
• Compact and Durable Housing: Potted construction ensures environmental protection and mechanical stability.
• Customizable Options: Additional housing shapes and magnet sizes available upon request to suit specific application needs.
• Versatile Integration: Suitable for both OEM and retrofit applications across multiple industries.

Manufacturing & Robotics: Facilitates motion control and position tracking.
Aerospace: Used in control systems and instrumentation for precise angle feedback.
Agricultural Equipment: Enables accurate positioning in automated machinery.
Automotive & Heavy Equipment: Supports steering, throttle, and suspension angle sensing.
Consumer Electronics: Integrates into devices requiring rotational input or feedback.
Manufacturing & Robotics: Facilitates motion control and position tracking.
Marine & Medical Devices: Provides reliable sensing in harsh or sensitive environments.
Military & Power Generation: Ensures robust performance in mission-critical systems.
Transportation Systems: Used in rail, transit, and mobility solutions for angle detection.
