Product Description
Description: Solid State Relay - Photo MOSFET
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |

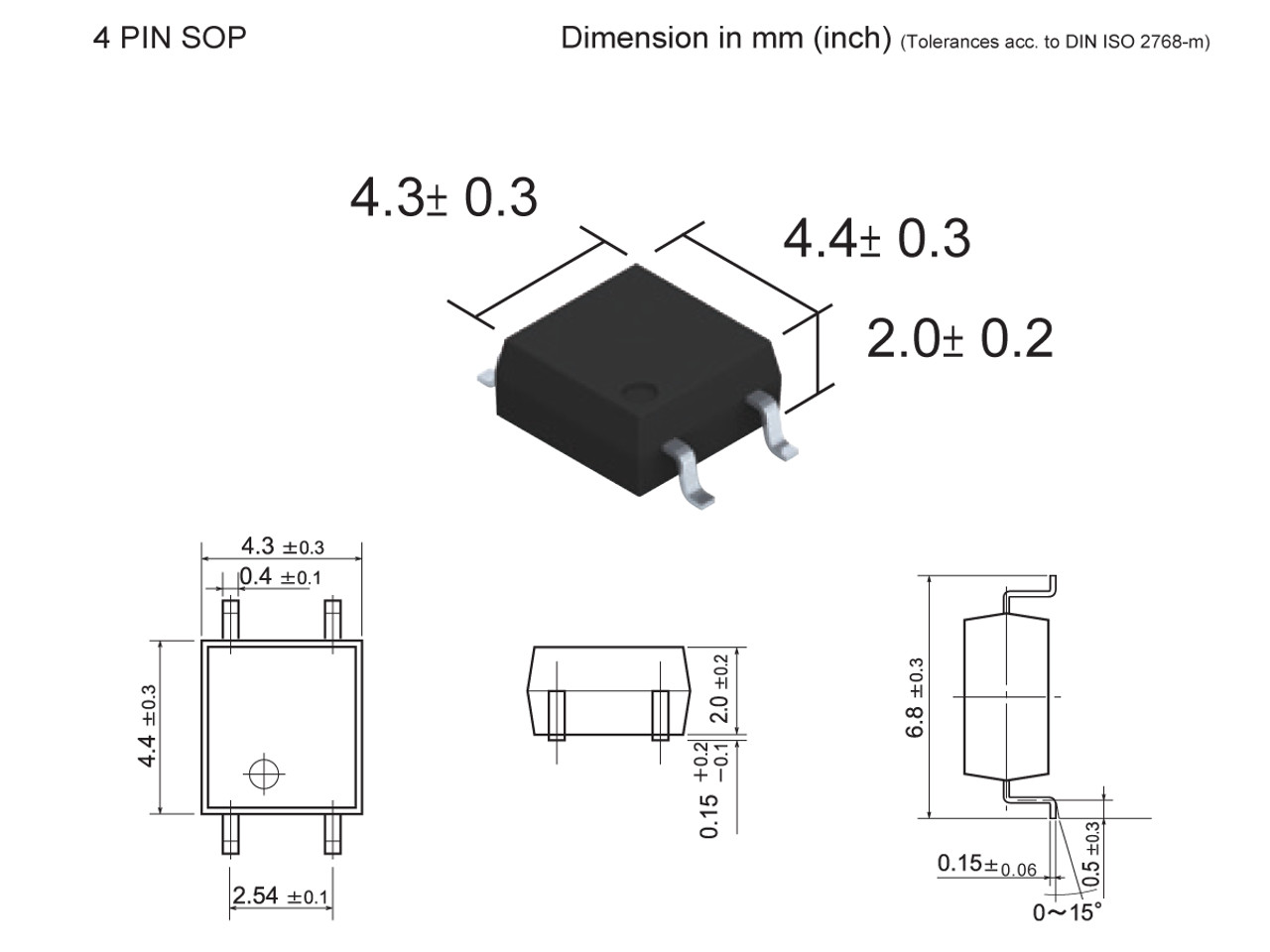

| Pin Count / Package Style | 4 PIN / SOP |
| Circuit | SPST-NO (1 FORM A) |
| Load Voltage DC or Peak AC | 0 ~ 80 V |
| Load Current Max. | 1.25 A |
| On-State Resistance Max. | 160 mOhms |
| Output Capacitance | 220 pF |
| Off-State Leakage | 1 µA |
| I/O Isolation Voltage Max. | 1500 V |
| Special Feature | AEC-Q101, UL Approved, RoHS Compliant |
| Series Features |
| SMP-47 Photo-MOSFET Relay |

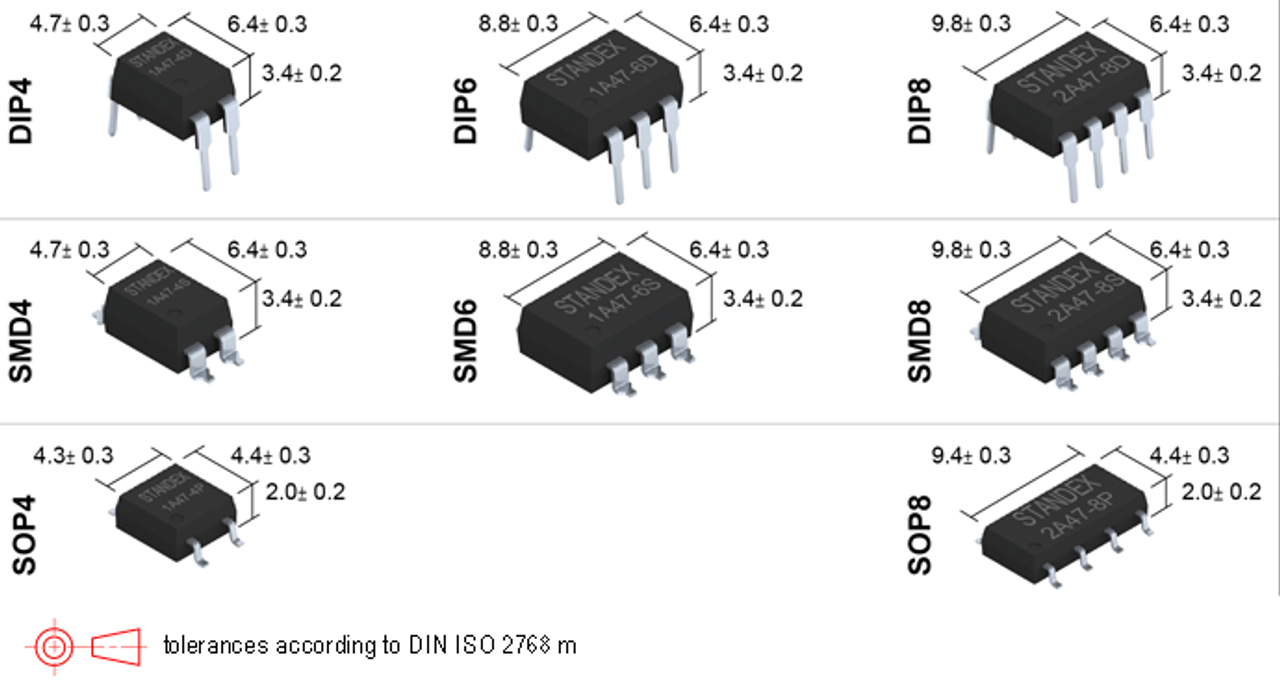

| Series Description: The SMP-47 Photo-MOSFET Relay series is a solid-state relay featuring switching up to 80V AC or peak DC, in a very small SOP (small-outline package), SMD (surface mount design), or DIP (dual-in-line package). It also features a high peak load current of 3 |
| Applications: Automotive (AEC-Q101), Automated Test Equipment (ATE), Electric Vehicles, I/O Modules, Industrial, Medical Equipment, Sensing Equipment, Telecommunications & Security Equipment |
