Product Description
Description: Hall Sensor, microPower Switch Function 2.5-3.5V Supply, 37G Operate, 31G Release
| Product Information | Resources |
|
|
| Specifications |
| Product Attribute | Attribute Value |
| Mounting Style | Screw Flange |
| Function Type | Switch |
| Sensing Range - On / Off (Gauss) | 37 / 31 |
| Voltage Supply (VDC) | 2.5 - 3.5 |
| Current Supply (mA) | 2 |
| Output Leakage Current Max. (?A) | 1 |
| Output On Voltage Typ. (mV) | 100 |
| Chopping Frequency Typ. (KHz) | 340 |
| Operating Temperature (°C) | -40 to 85 |
| Cable Length (mm) | 300 |
| Series Features |

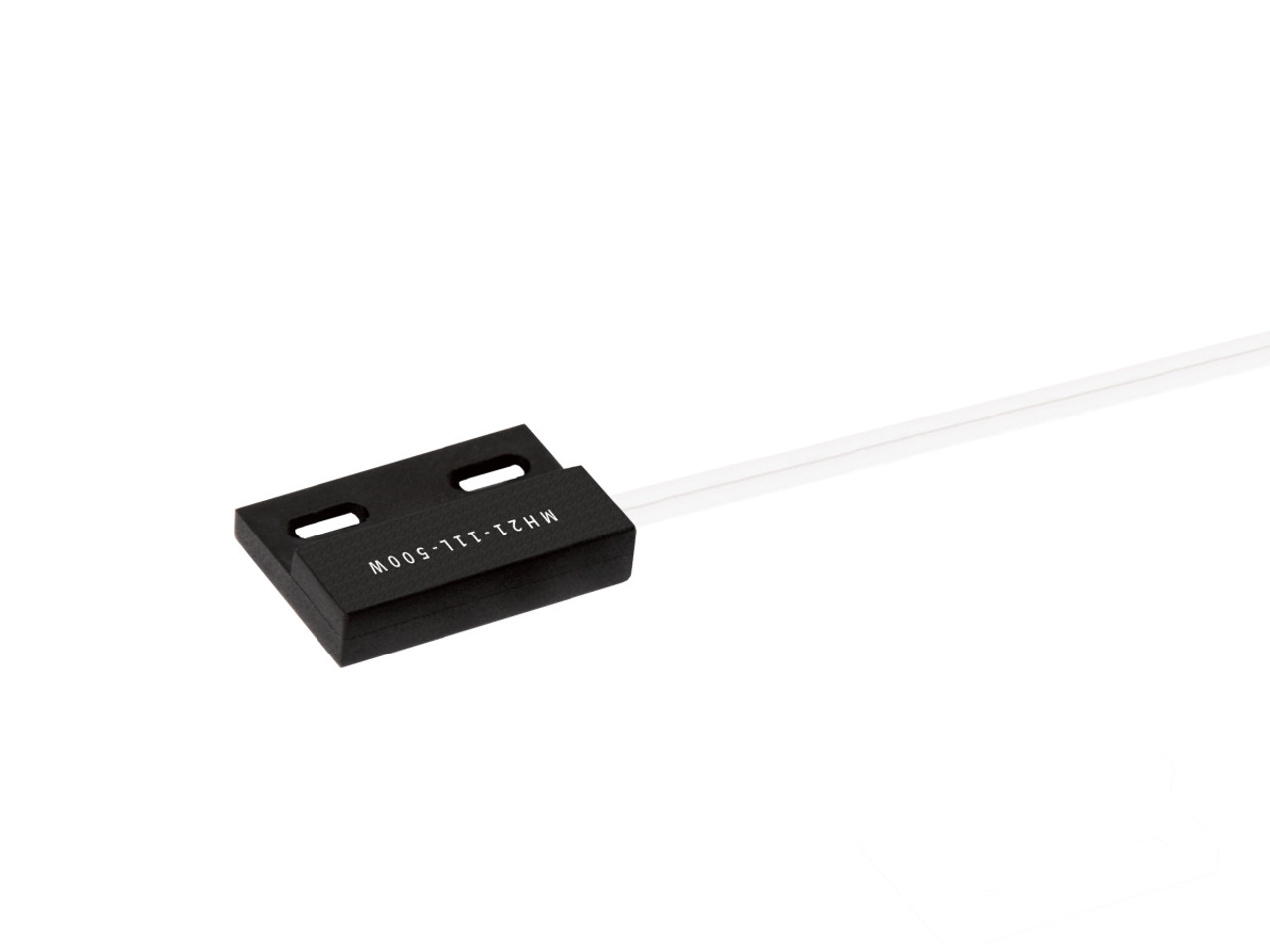

| MH21 Series Hall Effect Sensor |
| Series Description: MH21 series Hall Effect Sensor are packaged in a screw fastened flange mount rectangular housing with cable terminals. MH21 hall sensor custom options include: output- switch, latch, etc., high temperature resistance, package design and much more. Also av |
| Applications: SME Hall Effect Sensor products are ideal in limited space requirements, surface mount, speed sensor fast response, outputs beyond on/off, linear output, programmable, latching, polarity sensitive, and much more . |
