Product Description

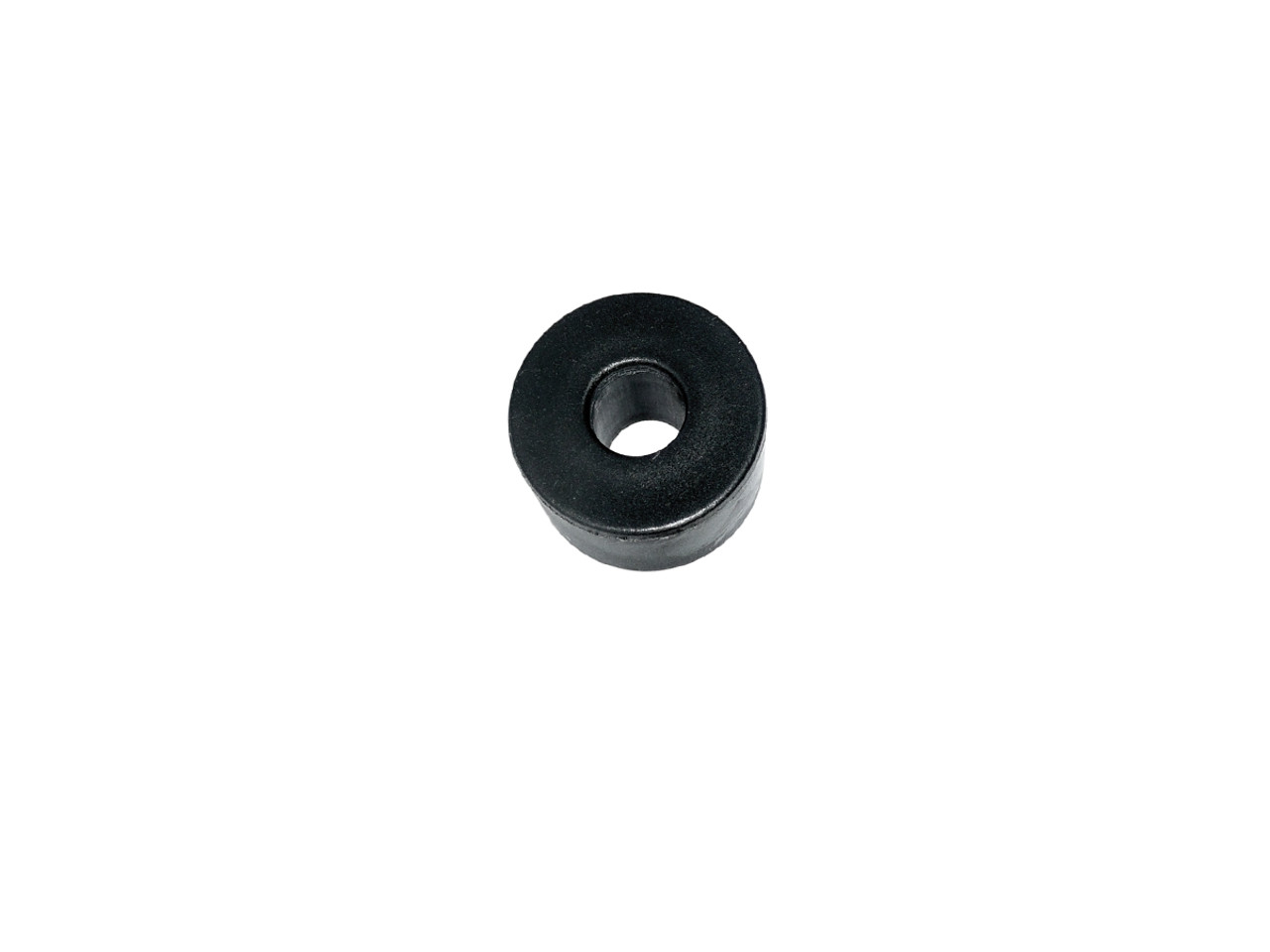

Standex Electronics MS02-NBR Series Floating Magnet; NBR; Outer Dia. 0.984" (25.0mm); Inner Dia.; 0.360" (9.15mm)
Floating Magnet • Material: NBR • Outer Dia.: 0.984" (25.0mm) • Inner Dia.: 0.360" (9.15mm)
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Magnet |
| Product Sub Category | Floating Magnet |
| Series | MS02-NBR Series |
| Catalog Part Number | MS02-NBR |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Material | NBR |
| Outer Dia. | 0.984" (25.0mm) |
| Inner Dia. | 0.360" (9.15mm) |
Series Features
MS02-NBR Series Magnetic Float
Series DescriptionThe MS02-NBR Series Magnetic Float ring actuator magnet (excentric) have excellent resistance to petroleum-derived liquids such as oil and gasoline and can be used in high temperature applications as well. Suited for stems with an outer diameter up to 8.5mm; float is foam. Actuator magnet is contained within the float though partially exposed to the liquid material. Compatible with Liquid Level Sensor series LS01, LS02, LS02-S, LS04, LS05.
Series ApplicationsPetroleum-derived liquids such as oil and gasoline, high temperatures. Compatible with the LS01, LS02, LS02-S, LS04, LS05 liquid level sensor series.
