Product Description

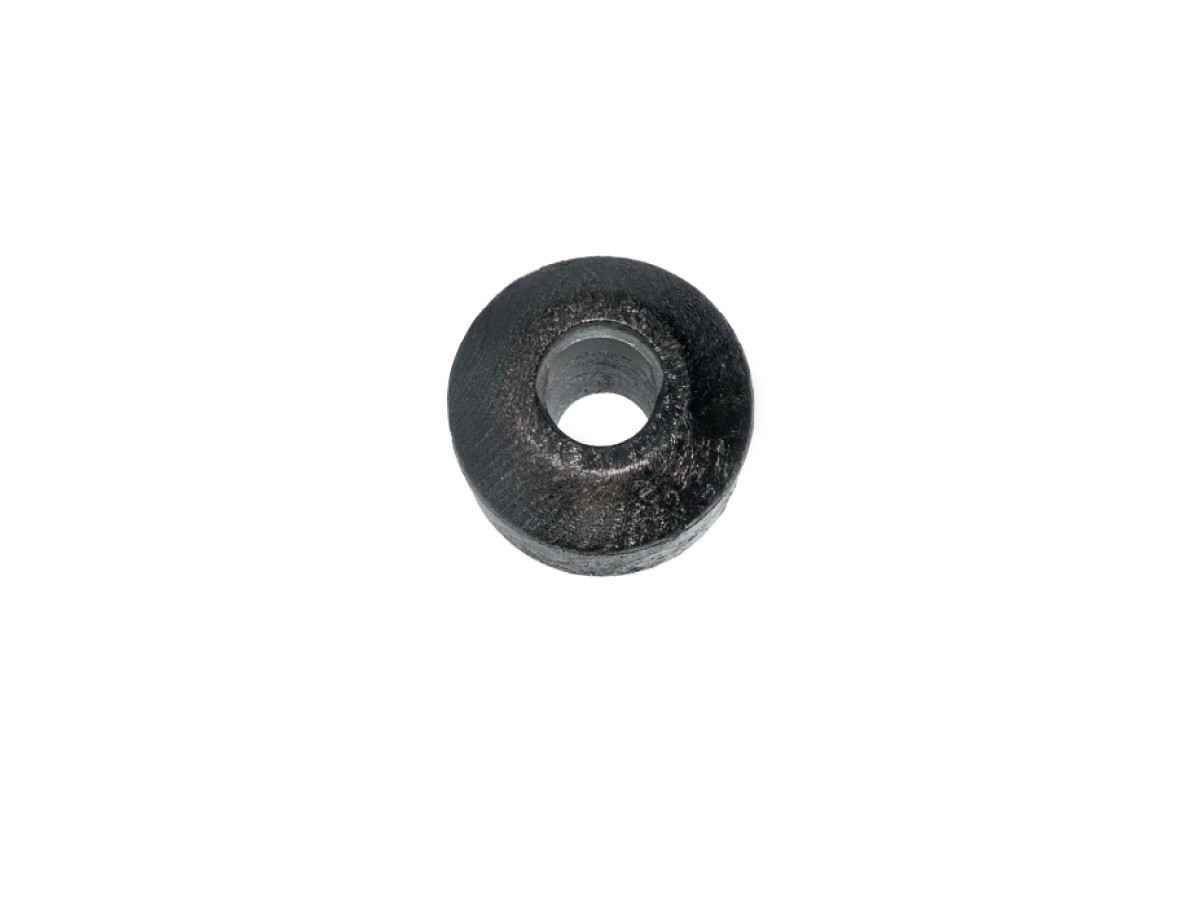

Standex Electronics MS01-PA Series Floating Magnet; PA; Outer Dia. 0.925" (23.5mm); Inner Dia.; 0.335" (8.50mm)
Floating Magnet • Material: PA • Outer Dia.: 0.925" (23.5mm) • Inner Dia.: 0.335" (8.50mm)
Product Information
| Manufacturer | Standex Electronics |
| Product Category | Magnet |
| Product Sub Category | Floating Magnet |
| Series | MS01-PA Series |
| Catalog Part Number | MS01-PA |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Material | PA |
| Outer Dia. | 0.925" (23.5mm) |
| Inner Dia. | 0.335" (8.50mm) |
Series Features
MS01-PA Series Magnetic Float
Series DescriptionThe MS01-PA Series Magnetic Float ring actuator magnet (excentric) are made of nylon, have a very high strength-to-weight ratio making them shock and abrasion resistant as well as capable of enduring a 5 bar pressure (73 PSI or 0.5 MPa). Additionally, PA floats have a high resistance to many chemicals and are therefore an ideal solution in fuel tanks, oil containers or brake fluid reservoirs. Suitable for stems with an outer diameter up to 7.5mm; float is foam. Actuator magnet is contained within the float though partially exposed to the liquid material. Compatible with Liquid Level Sensor series LS01, LS02-S, LS05.
Series ApplicationsFuel tanks, oil containers or brake fluid reservoirs. Compatible with the LS01, LS02-S, LS05 liquid level sensor series.
