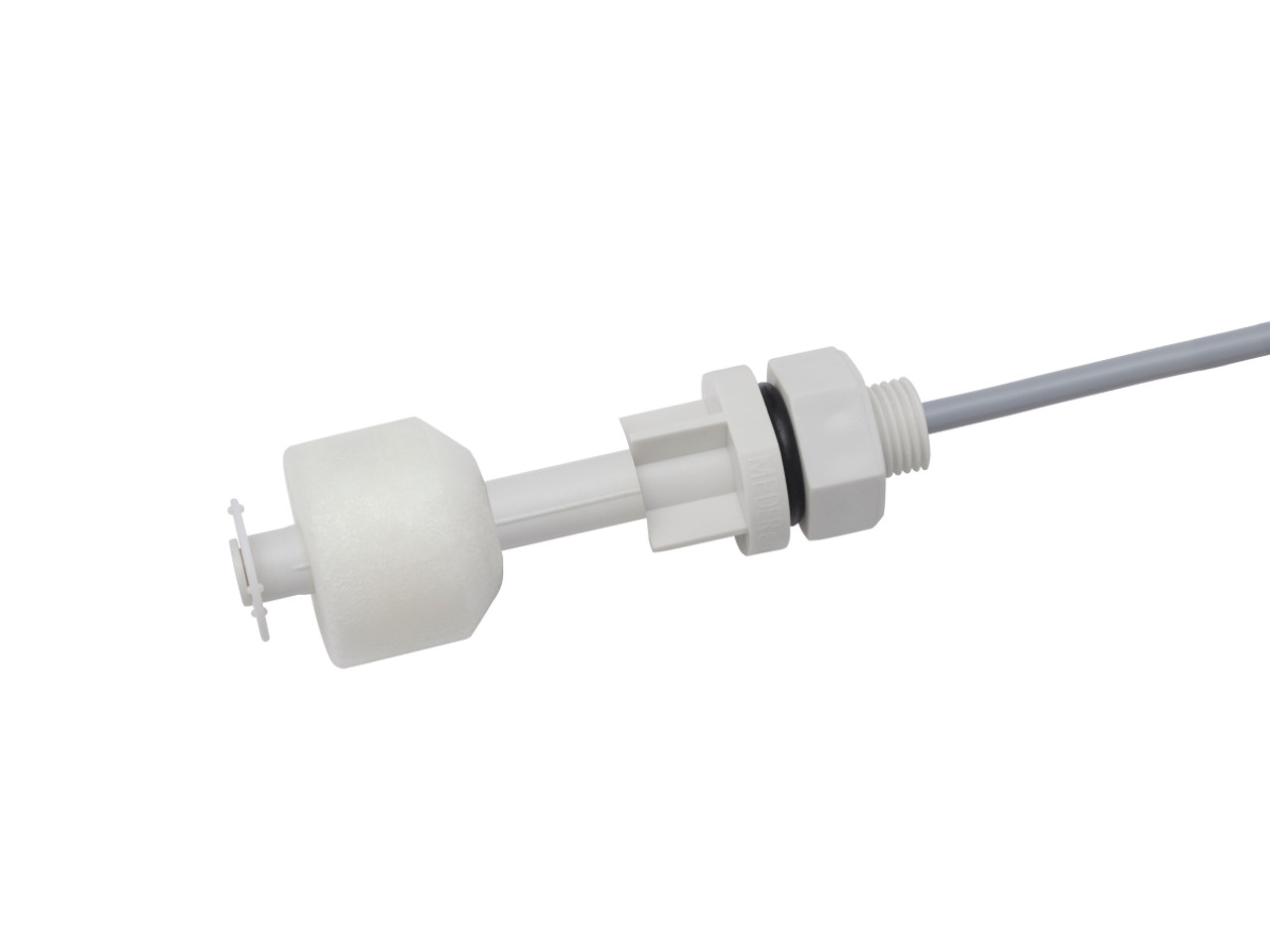

LS02 Series Liquid Level Sensor

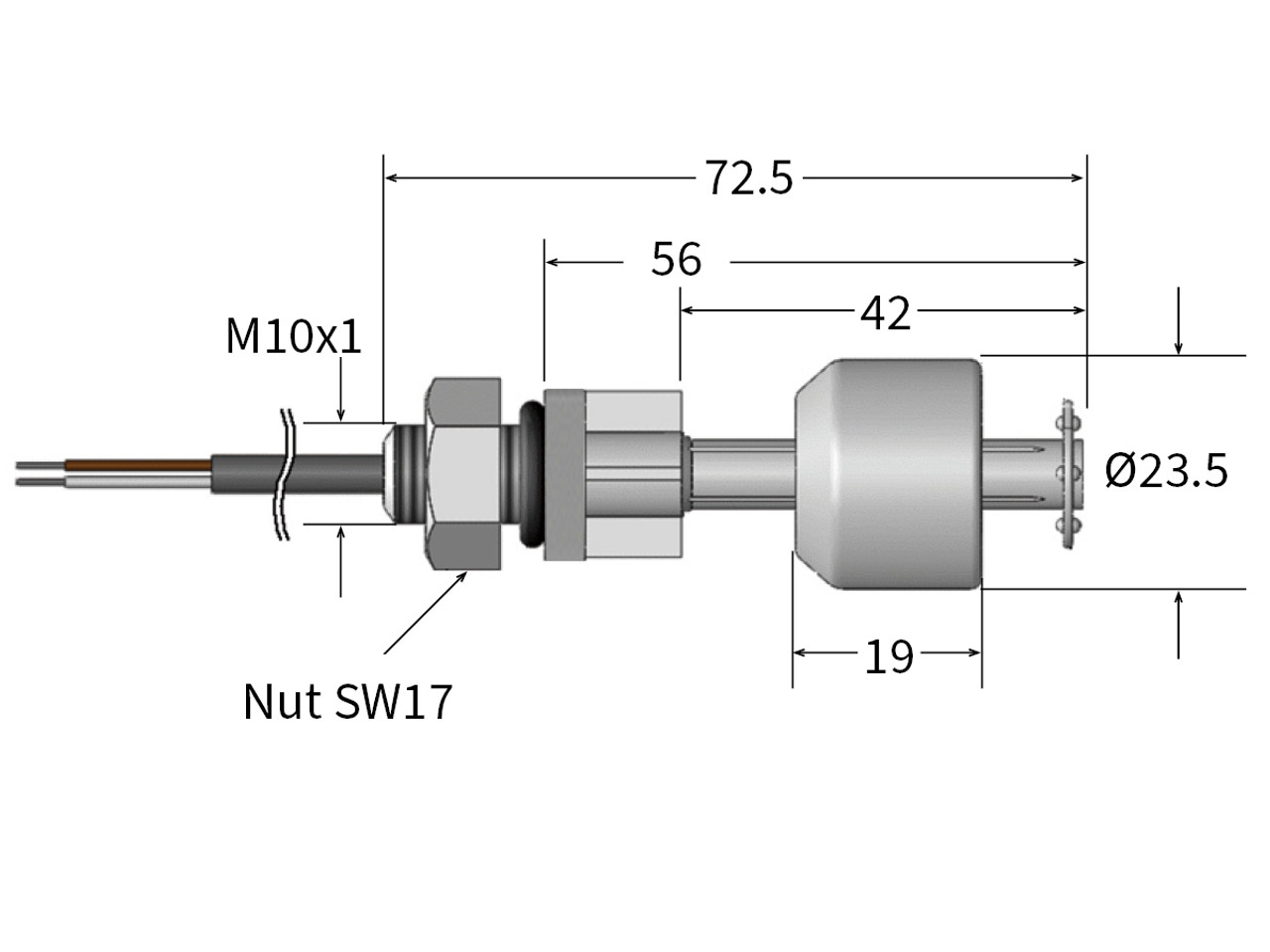

The LS02 Series is a compact, single-level vertical mount liquid level sensor designed for reliable fluid detection and control in demanding environments. Available in multiple contact forms—SPST-NO (Form A), SPST-NC (Form B), and SPDT (Form C)—it supports switching up to 100 W, 400 VDC, and 1.0 A, making it suitable for both low and high-power applications.

Constructed from durable materials including PA, PP, and NBR, the LS02 Series offers excellent chemical and thermal resistance. It features IP68 protection up to the screw-in thread and is compatible with a wide range of magnetic float options. Its modular design allows for customization with various cables and connectors, making it ideal for automotive, appliance, HVAC/R, and test & measurement systems.

• Compact vertical mount design for space-efficient installation

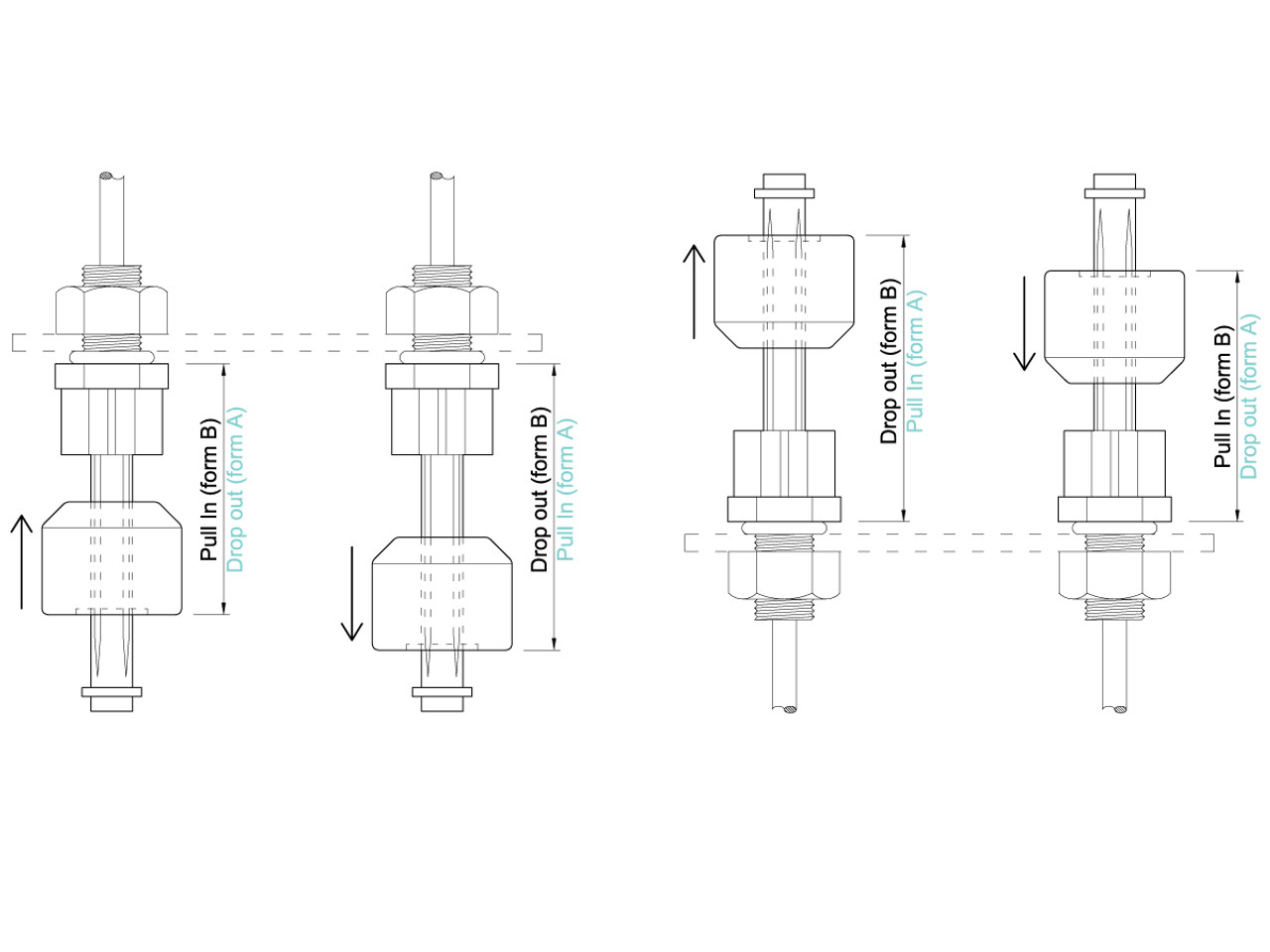

• Multiple contact forms (Form A, B, C) for flexible switching configurations
• Rated for up to 100 W, 400 VDC, and 1.0 A for high-power applications
• IP68 protection up to screw-in thread for enhanced environmental sealing
• Constructed from PA, PP, and NBR for chemical and thermal resistance
• Compatible with a wide range of magnetic float options
• Customizable with various cable and connector configurations

Automotive Systems: Fuel, coolant, and brake fluid level monitoring
Home Appliances: Water level detection in dishwashers and washing machines
HVAC/R Systems: Condensate level control and overflow prevention
Test & Measurement Equipment: Fluid level sensing in lab instrumentation
Industrial Controls: Tank level monitoring, pump activation
Medical Devices: Liquid detection in sterilization and diagnostic equipment
